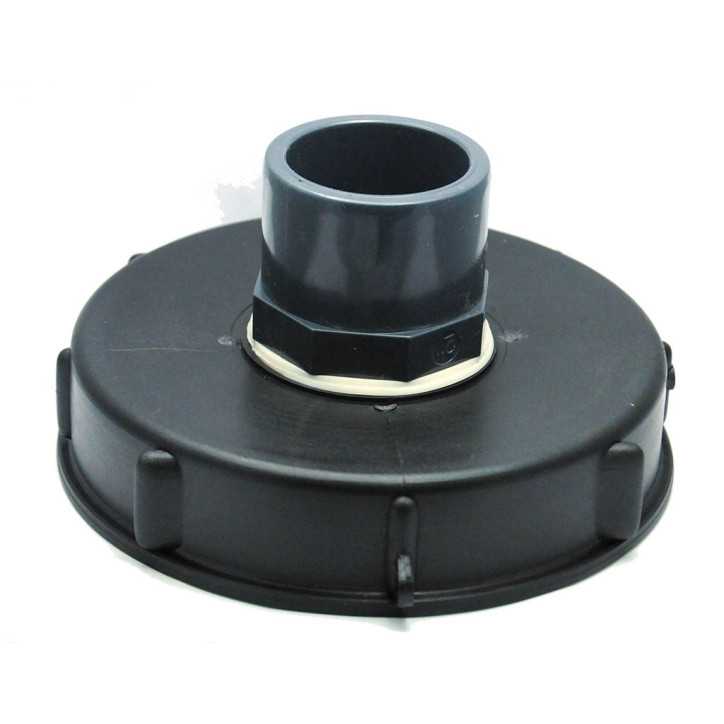

15cm lid for 1000L tank with PVC input 50/63

Optimize your collection system with this filling cover for IBC 1000-liter tanks, designed to guarantee totally secure water routing. With a standard diameter of 150mm (DN 150), this cover incorporates a PVC 50/63 fitting screwed into its center. It's the ideal technical interface for those looking for a clean solution, avoiding any undesirable run-off on the tank walls.

Zero run-off: an externally fitted seal

This filling kit has been designed to eliminate common leaks at the top of the tank:

• Watertight overlap principle: Using a pipe approximately 70 mm long, it overlaps the outside of the 63 mm PVC fitting. This configuration creates a physical barrier: water falls directly into the tank without ever being able to flow up or over the cover.
• Tip for hermetic assembly: For a perfect finish and to lock the pipe in place permanently, we recommend using a rubber lip seal or silicone sealant (external type) to fill the gap between the fitting and your pipe.
• Dome protection: No more water stagnating on the top of your IBC or running down the sides, preventing dirt and residual humidity around the pallet.

Simplified installation and pest barrier

Installation is easy and immediate, simply screwed onto the top neck of your IBC/GRV. The lid is fitted with a flat gasket to ensure a hermetic seal on the tank. This closed circuit not only directs water, it also protects your stock from the intrusion of insects (mosquitoes), leaves and dust. The black polypropylene material blocks light, preventing photosynthesis and algae formation.

Case studies: clean, efficient filling

In the case of a gutter connection, this cover eliminates splashing at the top of the tank. For example, by fitting your 70 mm downspout over the 63 mm PVC guide and finalizing the seal with mastic, you create an inverted funnel where every drop is channeled. It's the professional solution for keeping your storage area dry and clean, while maximizing the volume of water recovered each time it rains.

Mechanical strength and durability of polypropylene

The combination of high-density polypropylene and rigid PVC gives this unit superior mechanical strength. The structure is designed to support the weight of the downpipe and resist thermal variations (frost and heat) without cracking. The materials are UV-stabilized, ensuring that the cover retains its watertightness and rigidity season after season, even when exposed to prolonged sunlight.

Technical data
