Name: S60x6 to 1"1/2 BSP IBC Female Fitting | Polypropylene & Fiberglass
Brand: CPP
SKU: 100131
Price: 13.3 EUR
Availability: InStock

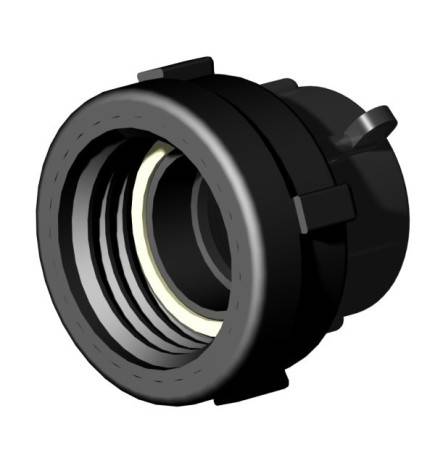

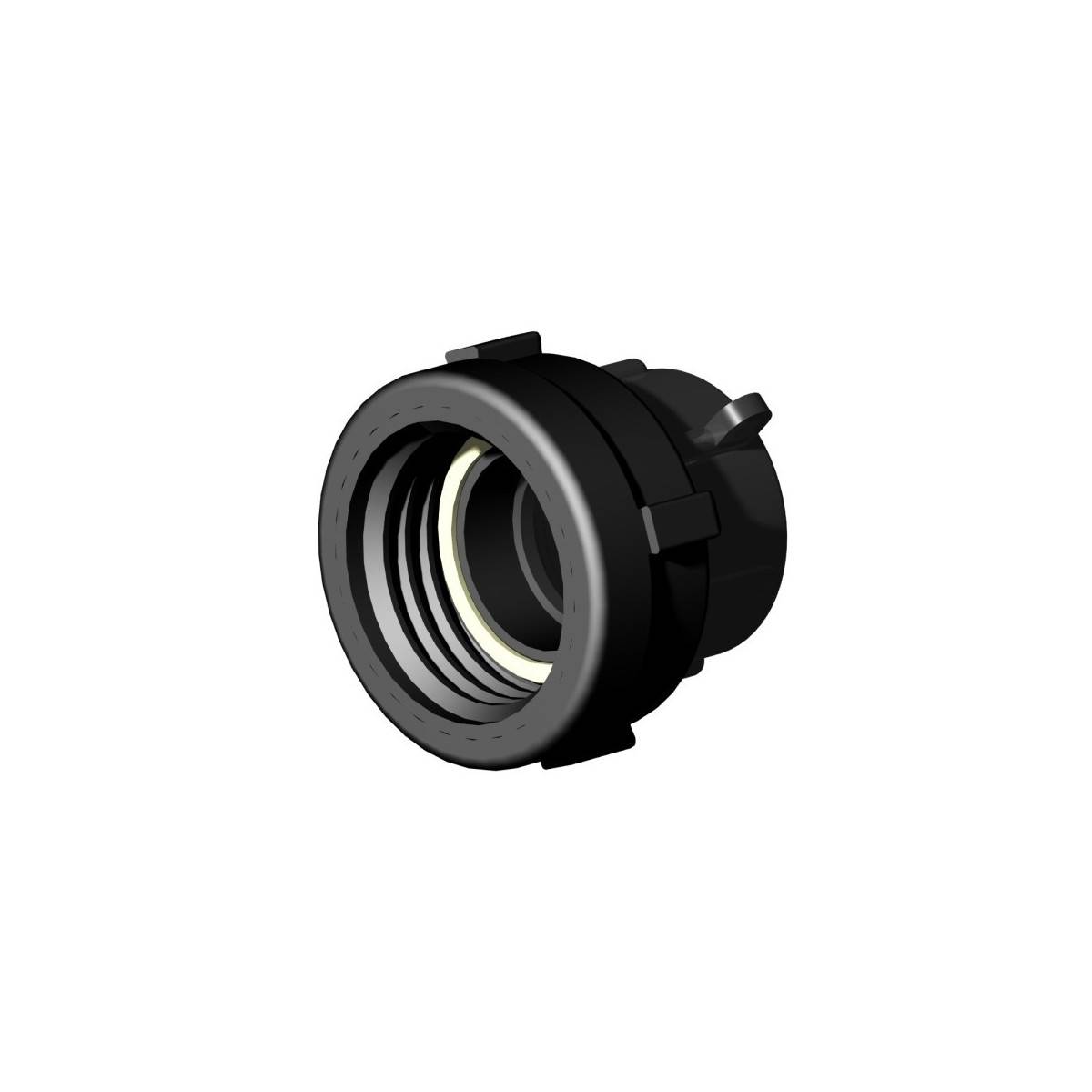

Connection step change with female turning nut 2" S60x6 - Female 1-1/2" not gas.

This fitting is made of fiberglass-laden polypropylene: High stiffness and good hardness, loaded with 30% fiberglass.

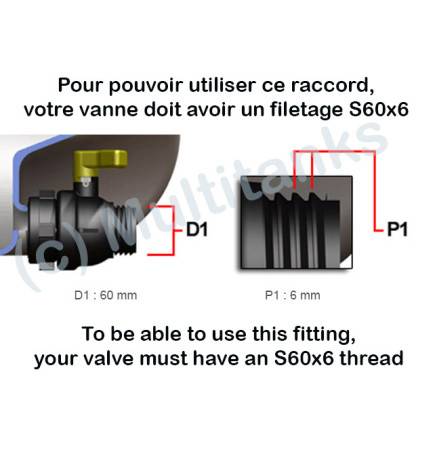

In order to use this connection, your valve must be at the name S60x6 , voic a sketch of the thread in question:

filetage s60x6

d1: 60mm - P1: 6mm

BrandCPP

Reference 100131

In stock44 Items

Technical sheet

Summary #1: The pitch change fitting with twist nut is a technical transitional part designed to adapt the outlet of your 1000 liter tank IBC hydraulic networks with very high flow. This model converts a standard S60x6 (2" inch) valve thread to a 1"1/2 Gas pitch Female tap. It is the ideal solution for users who want to maximize fluid passage for heavy-duty pumping or rapid draining applications.
Summary#2: This fitting has been specifically developed to provide exceptional durability in professional environments thanks to its material properties: Reinforced composite: Made of polypropylene filled with 30% fiberglass, guaranteeing unparalleled structural stability. Rigidity and Hardness: Its technical composition offers high impact resistance and surface hardness that preserves the integrity of the threads. Twist Nut: The loose nut system makes installation easy by allowing the fitting to be screwed onto the valve without rotating your entire piping.
Summary#3: To ensure a perfect seal, installation is easy and must be done on a valve that meets the S60x6 standard (valve outlet outer diameter of approximately 60mm with a pitch of 6mm). The twist nut allows for a precise fit and optimal tightening, even in tight spaces. The reinforced hardness of the material ensures that the fitting does not deform under the effect of tightening, guaranteeing a durable connection between your tank and your equipment of 1"1/2.
Summary#4: In a concrete case of agricultural or industrial management, this fitting allows you to connect a 40mm or 50mm diameter pipe directly to your tank. For example, it is perfectly suited to power a high-flow heat pump or to create a centralized drain manifold on several IBC tanks. Its high chemical resistance also makes it compatible with the transfer of dense or charged liquid solutions.
Summary#5: The incorporation of 30% fiberglass gives this fitting superior mechanical strength to torsional stresses and extreme climatic variations. This composite material is particularly stable against UV rays and retains its high rigidity without becoming brittle over the seasons. This exceptional durability ensures that your installation remains reliable and secure, minimizing the risk of leaks or breakage at your IBC's outlet valve.
Fitting Input: Female 1''1/2 pitch BSP gas
Female 2'' S60x6
Fitting Type: Female / Female
Material: Polypropylene
Fitting Outlet: Female 1''1/2 pitch BSP gas
Female 2'' S60x6
