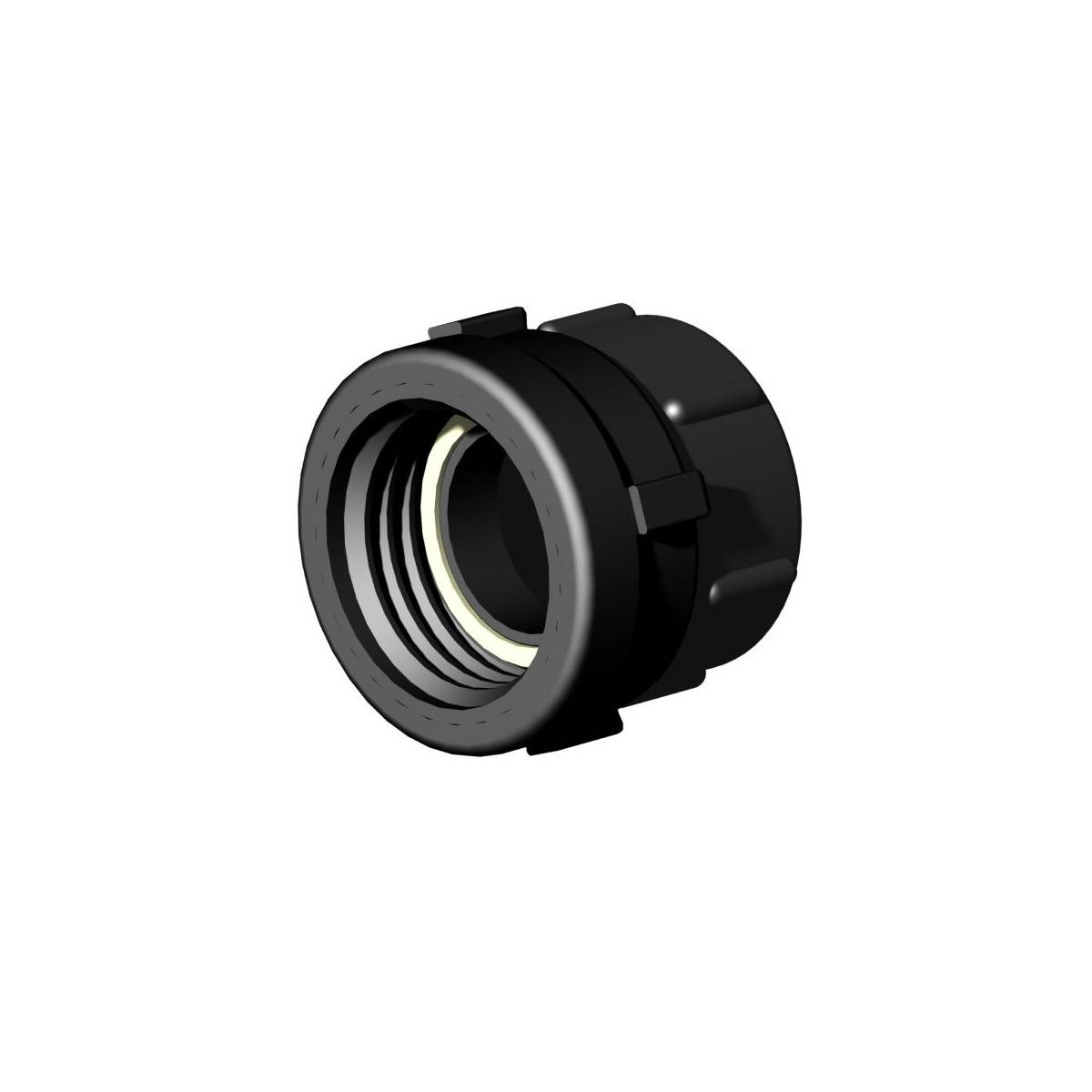

S60x6 IBC to 2" BSP Female Fitting | Polypropylene & Fiberglass

Technical sheet

Summary #1

The pitch change fitting with twist nut is the ultimate technical solution to convert the specific outlet of your 1000 liter IBC tank to a standard plumbing thread. This model allows you to switch from an S60x6 (2" inch) valve thread to a 2" Gas Female thread. This allows you to maintain an integral bore diameter for all your installations requiring maximum flow without hydraulic restrictions.

Summary#2

This fitting has been specifically developed to provide exceptional durability in industrial and agricultural environments thanks to its material properties: Reinforced Composite: Made of polypropylene filled with 30% fiberglass, guaranteeing unparalleled structural stability. Rigidity and Hardness: Its technical composition offers high impact resistance and surface hardness that preserves the integrity of the threads during powerful tightening. Twist Nut: The loose nut system makes installation easy by allowing the fitting to be screwed onto the valve without rotating your entire piping.

Summary#3

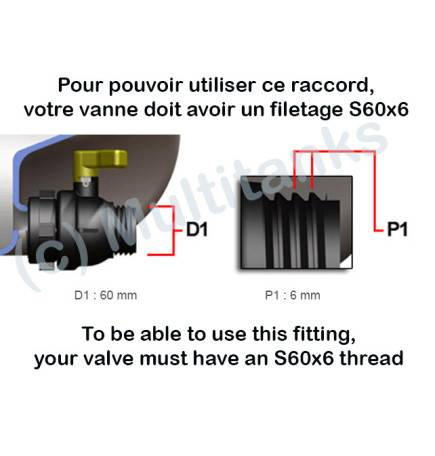

Thanks to its female twist nut, installation is quick and easy. It allows you to perfectly orient your end equipment (additional valve, barb connection or pump) in the desired axis before permanent blockage. The precision of the S60x6 thread ensures perfect compatibility with standard IBC tank valves (valve outlet outer diameter approx. 60mm). The increased hardness of the material ensures that the fitting does not deform due to the tightening torque.

Summary#4

In a specific case of rapid emptying or transfer of large volumes, this connection allows a 50mm or 63mm pipe to be connected directly to the tank. For example, it is ideal for connecting a petrol motor pump or for creating a main manifold connecting several tanks together. Its high chemical resistance also makes it compatible with the transfer of dense liquids, liquid fertilizers or industrial solutions compatible with polypropylene.

Summary#5

The incorporation of 30% fiberglass gives this fitting superior mechanical strength to torsional stresses and extreme climatic variations. This composite material is particularly stable against UV rays and retains its high rigidity without becoming brittle over the seasons. This exceptional durability ensures that your installation remains reliable and secure over the long term, minimizing the risk of leaks at the outlet of your IBC tank.

Fitting Input

Female 2'' BSP gas pitch
Female 2'' S60x6

Fitting Type

Female / Female

Material

Polypropylene

Fitting Outlet

Female 2'' BSP gas pitch
Female 2'' S60x6

Specific references

EAN13

3760235761325
