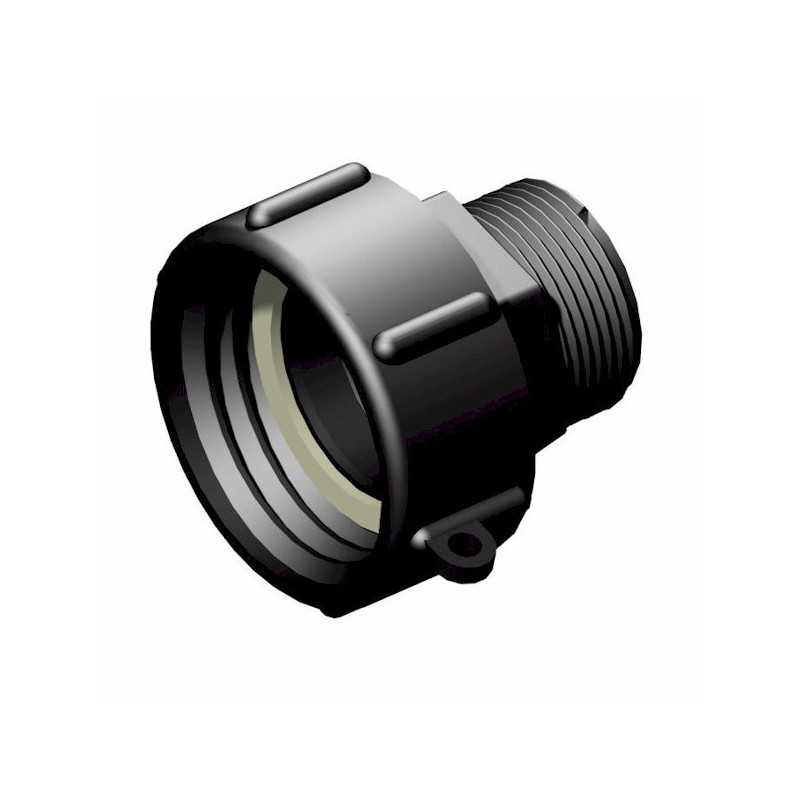

Female 2'' S60x6 - male 1-1/4'' gas thread fitting

CPP Female 2'' S60x6 - male 1-1/4'' gas thread BSP fitting (Reference: 100135) represents the ideal solution for connecting your equipment to 1000-liter IBC tanks. Designed by CPP, this glass fiber reinforced polypropylene fitting ensures perfect adaptation to standard S60x6 valves on IBC tanks, while offering a male 1-1/4'' BSP gas thread outlet for your irrigation or transfer connections.

Advantages and practical applications

This thread adapter proves indispensable for IBC tank owners looking to optimize their irrigation or liquid transfer installations. Its design allows transition from the specific S60x6 threading of tanks to the BSP 1-1/4'' standard, thus facilitating connection of a multitude of equipment.

For homeowners, it constitutes the centerpiece of an autonomous irrigation system from their rainwater collection tank. Agricultural professionals use it to connect their irrigation pumps, spraying systems or washing devices. In industry, it facilitates emptying, transfer and liquid distribution operations from storage tanks.

Compatibility with BSP 1-1/4'' (32mm) threading allows direct connection of numerous accessories: shut-off valves, volumetric meters, pressure reducers, Guillemin or Camlock quick fittings, thus facilitating integration into existing circuits.

Technical innovation and materials

The 30% glass fiber reinforced polypropylene gives this fitting exceptional mechanical properties. This composition ensures high rigidity and excellent resistance to mechanical stress, essential during repeated tightening and loosening operations.

The S60x6 female threading strictly respects standardized dimensions: 60mm outer diameter and 6mm pitch, guaranteeing perfect compatibility with all IBC tank valves on the market. On the outlet side, the male 1-1/4'' BSP gas threading ensures optimal sealing thanks to its tapered profile.

The chemical resistance of polypropylene allows use with a wide range of liquids: drinking water, nutrient solutions for agriculture, mild cleaning products, vegetable oils. This versatility makes it a preferred choice for diversified applications, from domestic gardening to light industrial uses.

Installation and optimal use

Installing this fitting requires some precautions to guarantee perfect sealing. First check the compatibility of your IBC valve with S60x6 threading by measuring the outer diameter (60mm) and pitch (6mm). Prior cleaning of threads removes impurities that could compromise sealing.

Screwing must be done manually initially to avoid seizing. Using Teflon tape or sealing compound on the BSP male threading significantly improves sealing. Final tightening is done using suitable wrenches, without excess to preserve material integrity.

For maintenance, regular rinsing with clean water is generally sufficient. When using with specific liquids, specific cleaning may be necessary. Periodic inspection of threads allows early detection of any signs of wear or deterioration.

In winter, completely drain the fitting to avoid frost risks that could damage the polypropylene structure.

Expert advice and optimizations

To maximize your installation efficiency, combine this fitting with 1-1/4'' shut-off valves that will facilitate maintenance and flow control. Adding a pressure gauge downstream allows monitoring pressure and optimizing your irrigation or transfer system performance.

Agricultural professionals will appreciate the combination with Guillemin quick fittings to facilitate equipment changes during the season. This flexibility proves particularly useful when switching from irrigation operations to phytosanitary treatments.

For fixed installations, provide a fixing clamp to relieve mechanical stress on the fitting. This precaution considerably extends the assembly's lifespan and reduces risks of untimely loosening.

Common mistake to avoid: never force tightening of a polypropylene fitting. Mechanical resistance, while good, remains lower than brass or stainless steel. Progressive and measured tightening guarantees durable sealing without risk of cracking.

For seasonal applications, store the fitting in a dry and temperate place, away from direct UV which could alter polypropylene properties long-term.

Technical specifications
