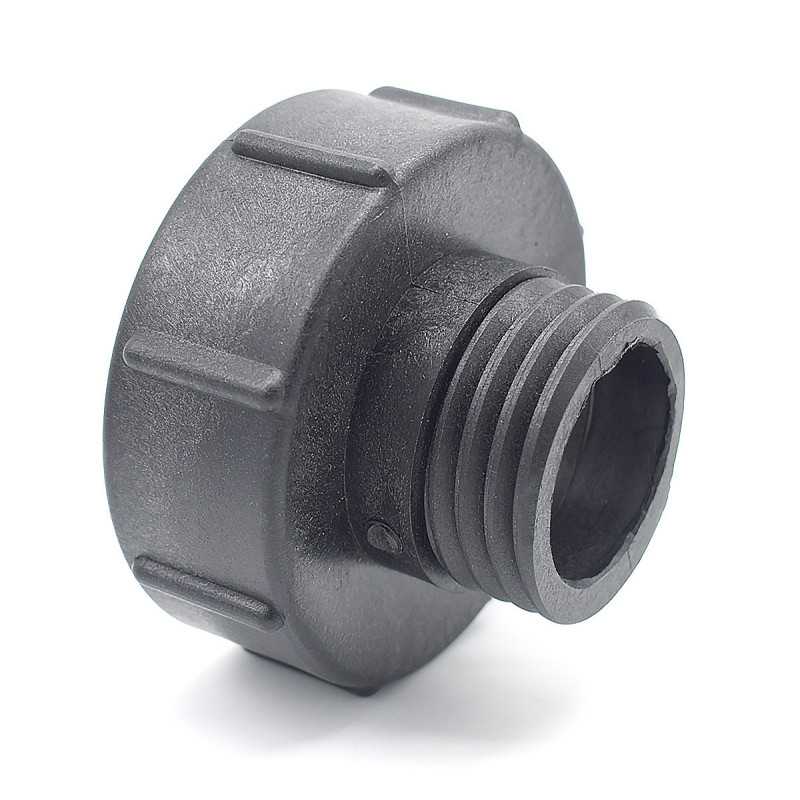

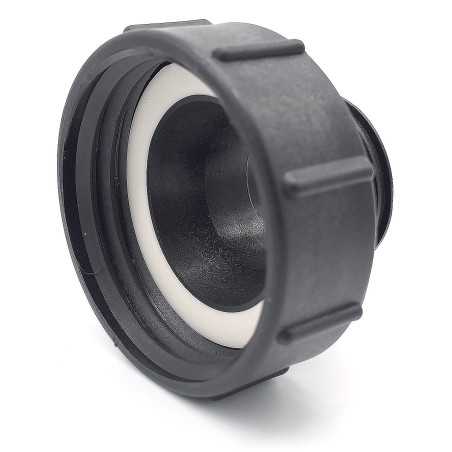

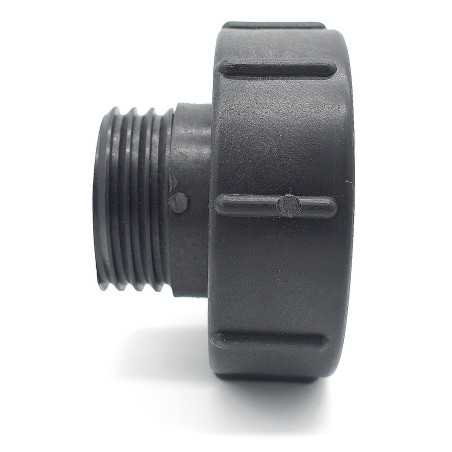

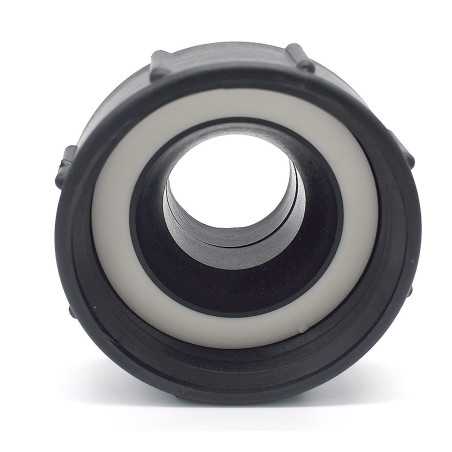

Female S100x8 - Male 2'' S60x6 Fitting

Female S100x8 - Male 2'' S60x6 Fitting (Reference: 100112): This professional CPP adapter in HDPE meets the requirements for thread conversion between S100x8 and S60x6 standards. Designed for industrial applications, it ensures a perfect transition between 3'' valves and 2'' fittings, offering a robust technical solution for your fluid storage and handling installations.

Specific Applications and Use Cases

This adapter fitting finds its place in numerous industrial configurations. It notably allows connecting S100x8 3-inch valves with 2'' S60x6 connection systems, thus creating a technical bridge between two different standards. This solution proves particularly useful on 1000-liter IBC tanks where specific equipment requiring a diameter change needs to be installed.

Professionals in chemistry, food processing, and water treatment frequently use it to adapt their existing installations without major modifications. Private owners of rainwater collection tanks also find it beneficial for optimizing their pumping and distribution systems.

Technical Characteristics and Construction

Manufactured in HDPE (High-Density Polyethylene), this fitting benefits from excellent chemical and mechanical resistance. The chosen material guarantees extensive compatibility with numerous fluids, from aqueous solutions to common chemicals, while maintaining its mechanical properties over time.

The female S100x8 inlet features an internal diameter of 100mm with an 8mm thread pitch, perfectly suited to standard valves and taps of this format. The male 2'' S60x6 outlet offers a diameter compatible with 2-inch fittings and a 6mm thread pitch, ensuring a reliable and watertight connection. This bidirectional design allows flexible installation according to the specific needs of each application.

Installation and Implementation

Installing this adapter fitting requires careful preparation of contact surfaces. Check thread cleanliness before assembly and ensure absence of chips or deformations. Screwing should be done manually initially to avoid cross-threading, then tightened using appropriate tools without excess.

It is advisable to use a suitable sealant such as Teflon tape or sealing paste compatible with HDPE on male threads. Tightening torque should be progressive and controlled to avoid fitting deformation while ensuring watertightness. After installation, perform a pressure leak test before final commissioning.

Expert Tips and Optimization

To maximize this adapter's performance, favor vertical installation when possible, thus limiting mechanical stress on threads. In pumping applications, position the fitting to avoid cavitation phenomena that could damage seals.

Combine this fitting with our professional S100x8 valves and our 2-inch Camlock fittings to create modular and efficient transfer systems. For temporary or mobile installations, combine it with our Express fittings that allow quick connections/disconnections without tools. Don't forget to provide stainless steel clamps at flexible connection points for optimal safety.

Warning: avoid significant thermal shocks that could weaken the HDPE. In outdoor environments, protect the fitting from direct UV radiation with appropriate paint or housing. Optimal operating temperature is between -20°C and +60°C.

Technical Specifications
