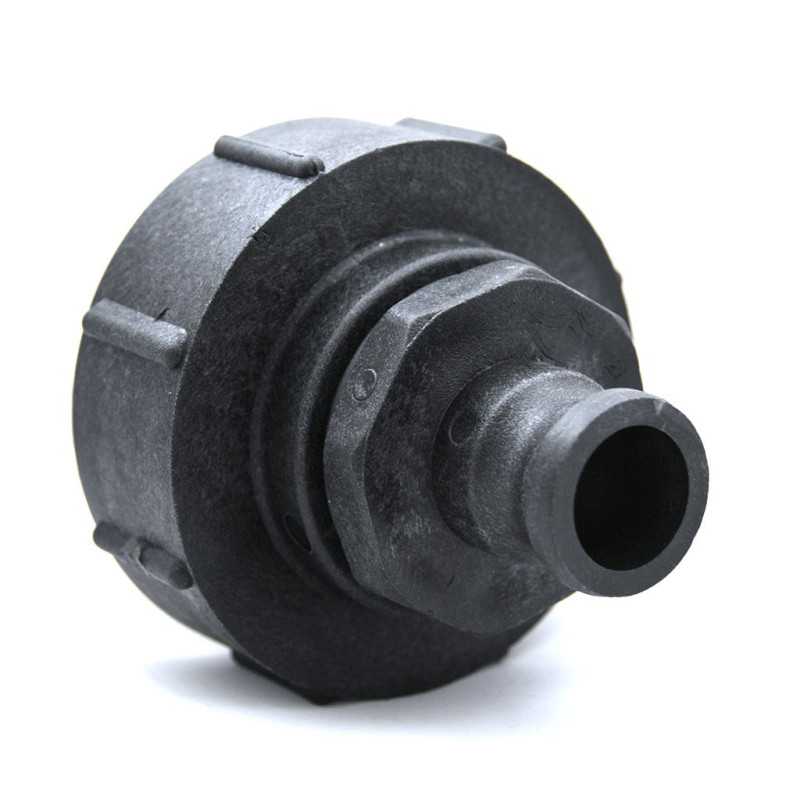

S100x8 Female - Male Camlock 1'' Fitting

S100x8 Female - Male Camlock 1'' Fitting (Reference: 101037) is a high-performance technical adapter designed by CPP to meet the requirements of fluid transfer professionals. Made from glass fiber-reinforced polypropylene, this fitting offers exceptional resistance and perfect compatibility with 1000-litre IBC tanks equipped with S100x8 standard valves.

Applications and Use Cases

This hybrid S100x8 / camlock fitting proves useful in numerous industrial and agricultural configurations. For construction professionals, it allows quick connection of a water reserve IBC tank to a pumping system equipped with 1-inch camlock fittings, facilitating the supply of concrete mixers or high-pressure cleaning systems.

In the agricultural sector, this fitting is essential for connecting storage tanks for liquid fertilisers, plant protection products or irrigation water to spraying or watering equipment. Operators appreciate its robustness against mechanical stress and its resistance to common agricultural chemicals.

Chemical and food industries also use this type of fitting to secure fluid transfer between storage containers and production lines, benefiting from the reliability of the seal and the speed of connection/disconnection of camlock systems.

Technical Specifications and Materials

The design of this fitting is based on the use of glass fiber-reinforced polypropylene, a composite material that combines the lightness of polypropylene with the mechanical resistance provided by glass fibers. This composition gives the fitting excellent resistance to thermal shock, UV rays and most chemical agents.

The S100x8 thread strictly adheres to standardised dimensions: outer diameter of 97 to 100mm and thread pitch of 8mm. This dimensional precision guarantees perfect compatibility with all S100x8 valves on the market, whether they equip new or used IBC tanks.

On the camlock fitting side, the 1-inch male end (25.4mm) complies with the international standards for this type of quick coupling. The robust design allows it to withstand typical pressure constraints of fluid transfer applications, while maintaining optimal ease of handling.

With a weight of 490 grams, this fitting offers an excellent compromise between structural solidity and manoeuvrability. Its mass reflects the wall thickness and the quality of the material used.

Installation and Practical Use

Installation of this fitting requires no specific tools. On the IBC tank, simply screw the S100x8 female end manually onto the valve, turning clockwise. The quality of the thread allows hand-tightening sufficient to ensure a seal, without the risk of over-tightening which could damage the threads.

For the camlock connection, the principle remains that of all quick couplings: insert the male end into the corresponding female fitting, then fold down the locking levers. This operation can be performed in a few seconds, even while wearing protective gloves.

During use, it is important to regularly check the condition of the seals and the cleanliness of the contact surfaces. Rinsing with clean water after each use significantly extends the service life of the fitting, particularly when used with aggressive or particle-laden products.

For storage, protect the fitting from direct sunlight and extreme temperatures. Polypropylene, although UV-stabilised, retains its optimal properties when stored under good conditions.

Expert Advice and System Optimisations

To maximise the efficiency of your installation, pair this fitting with camlock hoses of the corresponding diameter (1-inch internal). This dimensional consistency avoids unnecessary pressure losses and optimises transfer flow rates.

Experienced professionals recommend keeping a stock of spare fittings, particularly on farms where a failure can compromise irrigation or livestock feeding. Standardisation on the camlock system facilitates the interchangeability of components.

A preventive maintenance tip is to apply a thin layer of silicone grease to the threads during reassembly, particularly in salty or dusty environments. This precaution facilitates future disassembly and prevents seizing.

For seasonal applications, such as summer irrigation, make sure to completely drain the fitting before frost periods. Residual water could damage the internal structure through expansion during freezing.

Finally, this fitting integrates perfectly into a modular installation strategy. By combining different S100x8 adapters (to BSP, compression, or Guillemin), you create an evolving system capable of adapting to changes in your operational needs.
