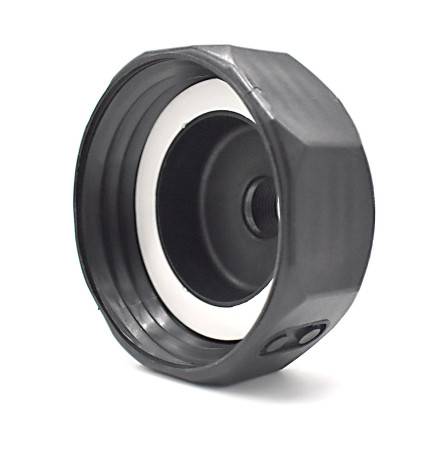

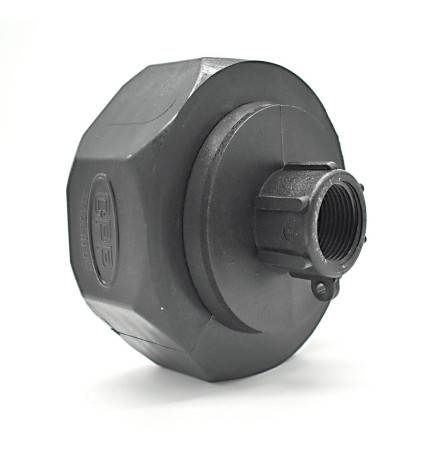

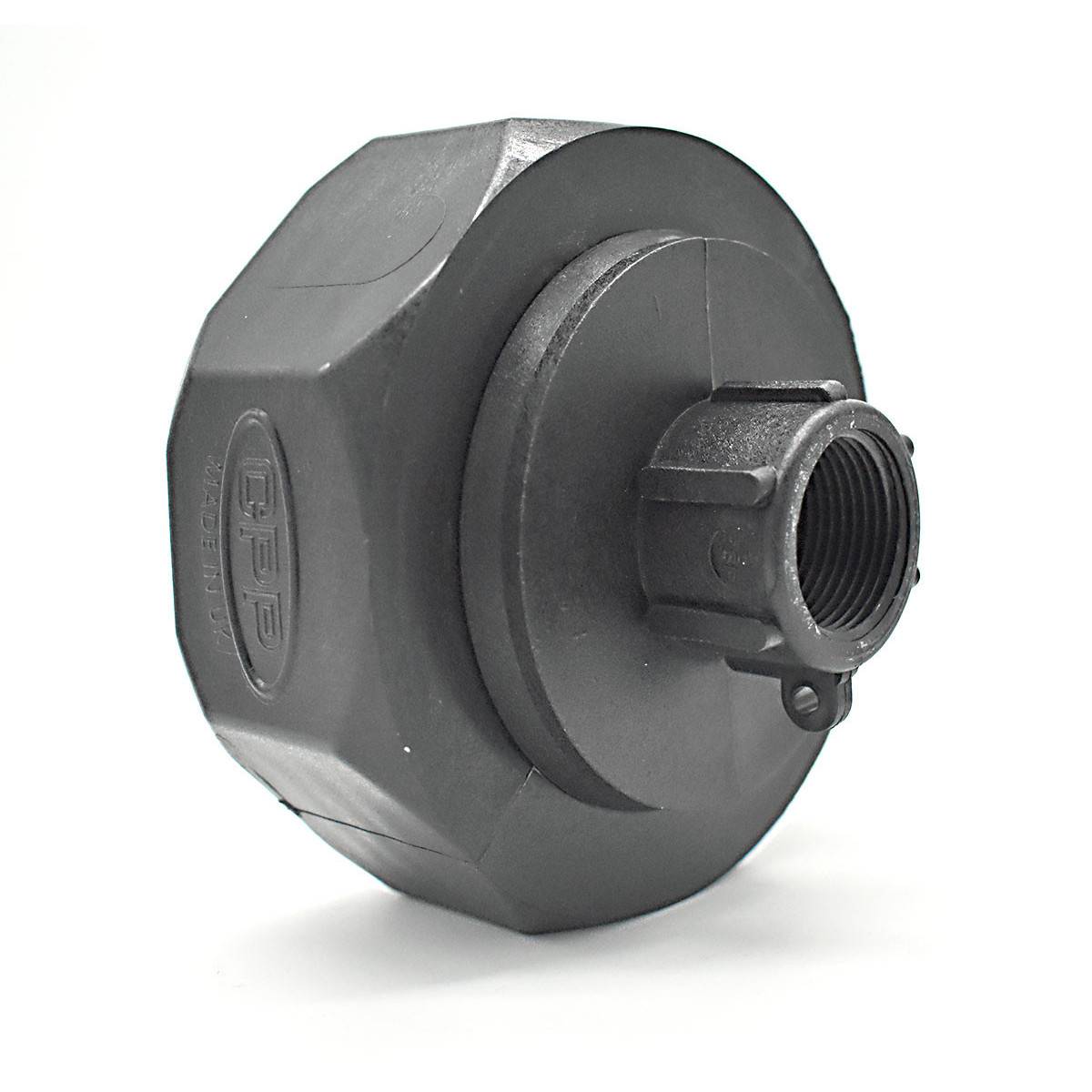

Raccord femelle S100x8 - sortie femelle 3/4'' BSP avec écrou tournant

    Female fitting S100x8 - female output 3/4'' BSP with rotating nut

    101082
    Female fitting S100x8 - female 3/4'' BSP with rotating nut made of polypropylene + fiberglass for IBC valve with output thread S100x8
    36 Items
    €31.20
    Tax included

    Il n'y a pas encore d'avis.


    Female fitting S100x8 - female 3/4'' BSP with rotating nut in polypropylene + fiberglass for valve IBC with output thread S100x8

    • Lightness of the material
    • Easy maintenance
    • Wide compatibility
    • Easily integrated into your existing equipment
    • Excellent chemical resistance
    • Polypropylene treated for food contact
    • rotating nut

    Fiberglass-loaded polypropylene: High rigidity and good hardness, loaded to 30% fiberglass.

    this connection is used on valves of this type exclusively:

    filetage s100x8

    D1: 97 to 100mm (3.82" - 3.94")
    P1: 8 mm (0.32")
    Nets: 2 to 3
    Observation:
    Thread used in particular with the tank manufacturers IBC Schütz, Sotralentz and Greif.

    CPP
    101082
    36 Items

    Technical data sheet

    Summary#1
    This fitting fits on all valves with an S100x8 threaded outlet
    Summary#2
    Allows you to screw a garden faucet easily to the outlet of your 1000 L tank
    Summary#3
    Rotating lock for easy screwing
    Summary#4
    Material: Fiberglass-loaded polypropylene
    Summary#5
    Very high robustness and long service life
