Name: 2-inch A-type ball valve with 70mm floating nut for Schutz tank
Brand: Multitanks
SKU: 10020270
Price: 16.6 EUR
Availability: InStock

NEUVE ball valve for 1000-litre pallet vat, with aluminium floating nut, compatible with the schez-branded tanks. To recognize your valve, it must have an aluminum ring 70mm diameter inside nets

Characteristics:

Matter: PEHD
70mm back locks inside fillets, in order to attach the valve to the tank
Release: Male S60X6 (2'no artillery), standard exit from tank valves

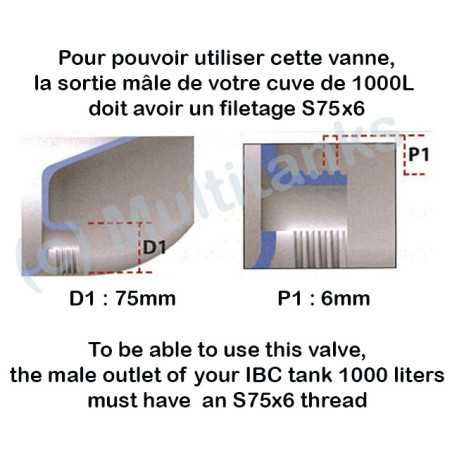

This valve is compatible with tank outputs of this size:

filetage s75x6

Name:

D1:

P1:

Manufacturers:

S75x6 (2") male

75mm (2.95")

6mm (0.24")

Schutz, Clawson,Fustiplast

Advantage of this valve: handle easier to open

If in doubt, you can send us a picture of your valve and tank so that we can advise you on the appropriate product.

BrandMultitanks

Reference 10020270

In stock1518 Items

Technical sheet

Summary #1: Secure your water supply with this NEW ball valve specifically designed for 1000 liter IBC tanks. This high-performance model is the ideal replacement equipment to ensure a complete seal and smooth handling of your stored liquids.
Summary#2: This technical valve is perfectly adapted to the standards of Schütz tanks. To confirm compatibility with your installation, check the following: Mounting ring: It has an aluminum floating nut with an inner diameter of 70 mm (measured at the threads). Floating nut: The aluminum ring allows easy screwing on the tank pocket without twisting the valve body. Visual identification: Your original valve must have an identical aluminum ring to ensure a hermetic mounting.
Summary#3: The design of this valve offers superior mechanical strength for intensive use: HDPE material: Made of high-density polyethylene, it is resistant to impacts, UV and temperature variations. Ball mechanism: Unlike conventional valves, the ball offers maximum tightness and greater durability in the face of repeated handling. Controlled flow: The ergonomic handle allows precise opening and closing of the outflow.
Summary#4: Installation is easy: the 70 mm rear nut attaches directly to the plastic bag of your tank. Once installed, the valve offers an S60X6 male output (2'' not artillery). Since this thread is the universal standard for IBC tank valves, you can effortlessly fit all your existing fittings, valves or garden hoses to it.
Summary#5: In the case of a leak on a valve of Schütz origin, this new model avoids the complete replacement of the plastic bag. For example, for use in market gardening, the robustness of the aluminium nut ensures that the valve will not loosen, even under the pressure of a full 1000 litre tank. It is the safety solution to ensure the sustainability of your rainwater storage.
