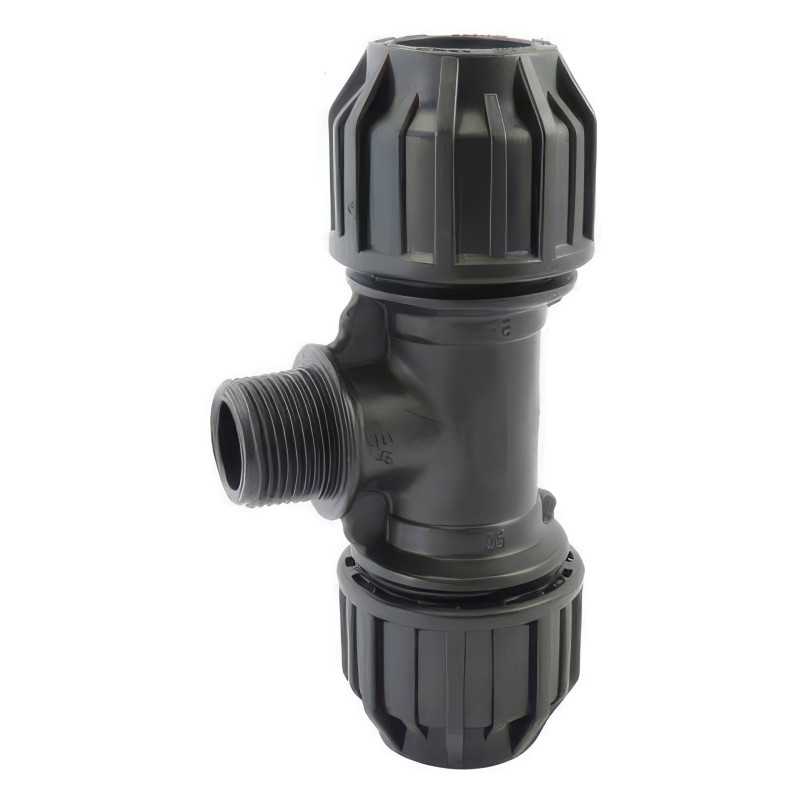

90° PE Compression Tee with BSP Male Bypass | PN16

The 90° Compression Tee with Male Threaded Bypass is a high-performance junction and branch fitting, designed to integrate a BSP (British Standard Pipe) male outlet onto a polyethylene (PE) pipe line. This component allows you to link two sections of PE pipe together while creating a perpendicular connection point for your tapped equipment. Made of high-density polypropylene, it offers a robust and durable solution for structuring complex hydraulic networks.

Smooth installation: Lubricated and captive seal

This tee has been engineered to simplify the work of installers, guaranteeing rapid implementation even in difficult site conditions (narrow trenches, humidity). It benefits from state-of-the-art technologies to secure assembly:

• Lubricated seal : Facilitates the insertion of PE tubing by reducing friction, preventing any risk of pinching or tearing during installation.
• Captive design : The seal remains perfectly lodged in the fitting body during handling, eliminating assembly errors and the loss of components at the bottom of the excavation.

Clamping ergonomics and mechanical resistance PN 16

The tightening of the two compression lanes is optimised by the use of ergonomic high-strength nuts . Their specific geometry allows a firm grip for efficient manual tightening, which can be finalized with a wrench adapted for maximum compression. This design ensures a homogeneous lock on the PE tube, creating a bond capable of withstanding pressures of up to 16 bar, while resisting vibrations and ground movements over the long term.

Concrete application cases and versatility

In a specific case of an irrigation network, this tee allows a shut-off valve or a tapped check valve to be inserted directly on a main line. For example, it is the ideal accessory for installing a tap point or a bypass pump connection on 32mm or 40mm PE pipe. Its polypropylene construction gives it total immunity to electrolytic corrosion and excellent resistance to UV rays for exposed parts.

Low maintenance and industrial reliability

Opting for this Threaded Bypass Tee means choosing a durable solution that does not require any periodic maintenance after installation. The absence of metal components in the fitting body prevents scaling and oxidation, ensuring a constant flow. Its proven reliability makes it a valuable ally for drinking water supply, geothermal systems and intensive irrigation, guaranteeing constant waterproofing in the face of natural chemical aggressions in the soil.

Technical characteristics
