Equal Tee Brass 7000 Series PN 25 | Bypass Compression PE Tube

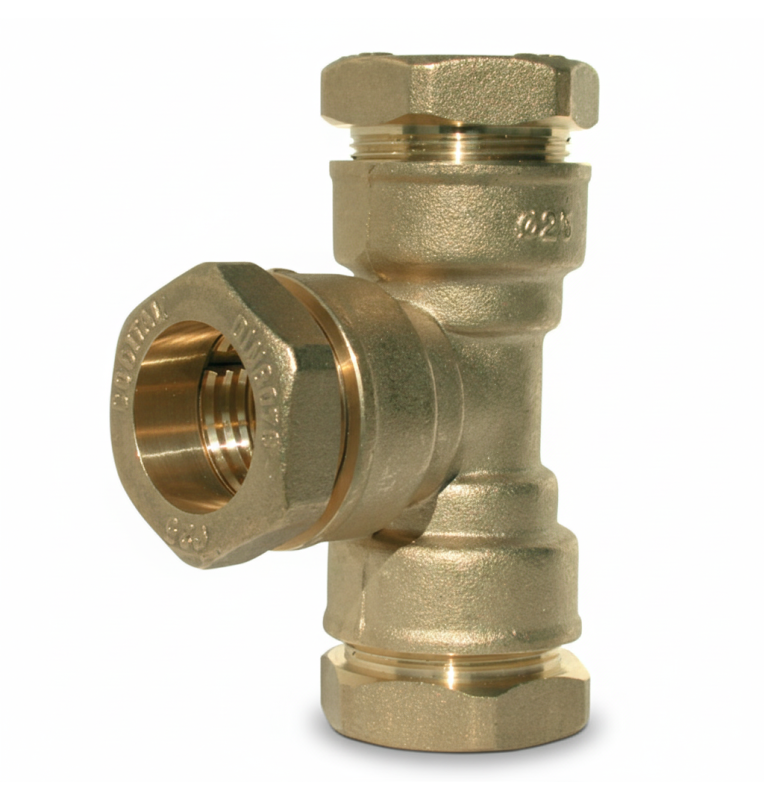

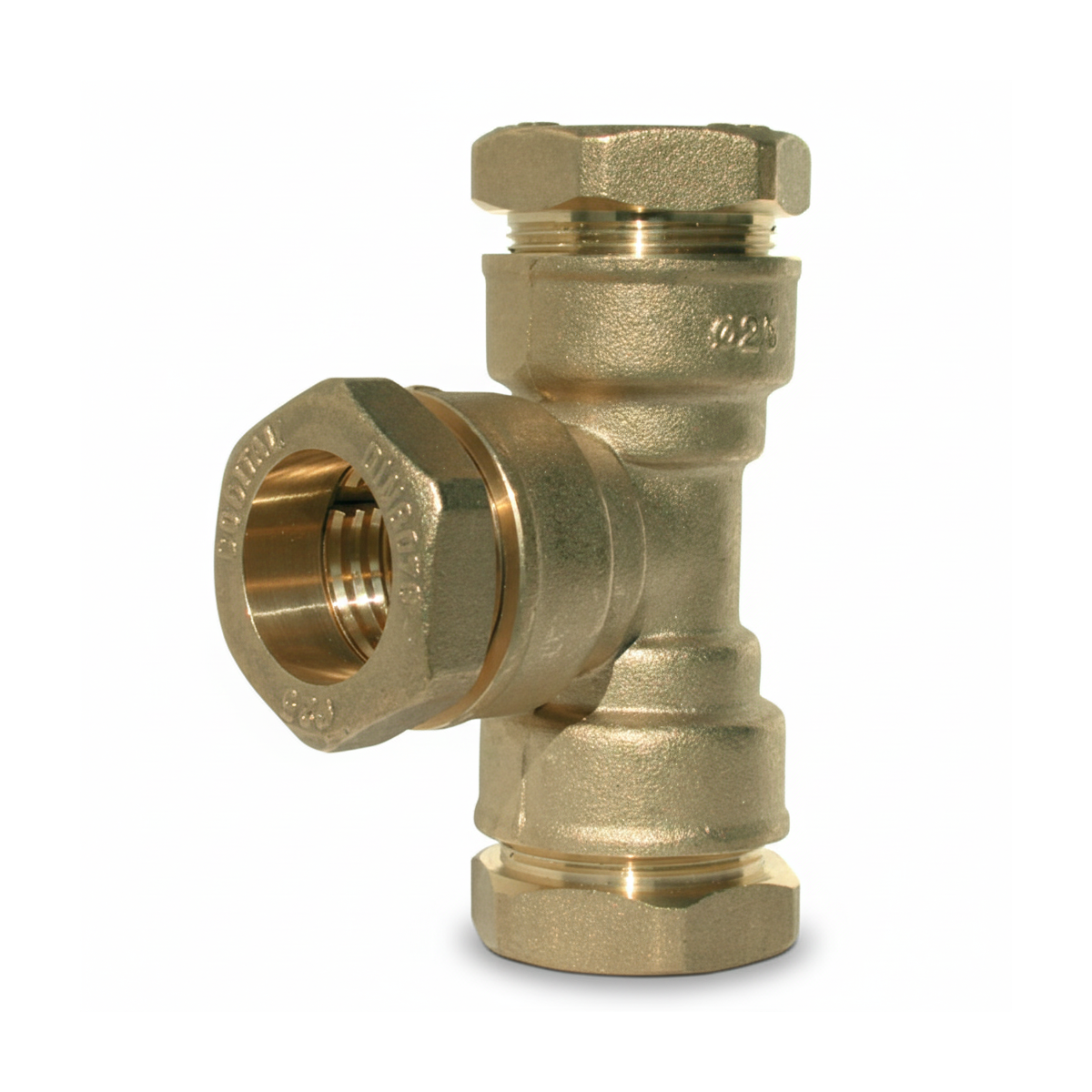

The 7000 Series 90° Equal Compression Tee in Brass is the ultimate branch fitting for hydraulic professionals. Designed to join three sections of polyethylene (HDPE or LDPE) pipes of the same diameter, this fitting allows the creation of perpendicular branching with absolute reliability. Made of high-quality CW617N brass, it is an ultra-robust metal alternative to plastic fittings, guaranteeing exceptional longevity for drinking water supply, agricultural irrigation and technical irrigation networks.

Extreme resistance certified PN 25 bar

This equal tee is distinguished by its outstanding mechanical performance. It is certified to withstand a pressure rating of PN 25 bar for diameters ranging from 16 mm to 50 mm, making it one of the strongest fittings on the market for pressure networks. For larger caliber installations (over Ø50), it maintains a robust performance in PN 16 bar. This ability to resist water hammer and hydraulic load variations ensures complete safety for critical water mains and distribution networks.

Clamping Engineering and H62 Camping Technology

The safety of the connection is ensured by a notched ring made of H62 brass which ensures a powerful and unbreakable mechanical bite on the PE tube. Installation is made easy by an extra-large clamping nut for an optimal grip when screwing. To ensure precise installation, the body of the Tee incorporates holding plates specifically adapted to standard keys on the market. This ergonomic design makes it possible to achieve the ideal tightening torque without unnecessary effort, ensuring that the tube is permanently anchored even in the presence of vibrations or ground movements.

Durable sealing and premium components

Each component of this Tee has been selected for its durability. Sealing is entrusted to precision O-rings made of NBR or EPDM, capable of maintaining a perfect hermetic barrier over a temperature range from 0°C to +50°C. For large diameters (from Ø75), the structure is reinforced with 304 stainless steel bolts, guaranteeing optimal corrosion resistance. Compliant with DIN 8076, this fitting ensures a smooth hydraulic flow and a flawless seal throughout the life of the network.

Technical characteristics

Sanitary compliance and areas of application

This Equal Tee is fully compliant with French legislation regarding materials for human consumption, making it a trusted choice for municipal and domestic networks. Its exceptional robustness also makes it indispensable for intensive agricultural irrigation and automatic watering systems of large areas. Whether laid underground or on the surface, its natural corrosion resistance and design in accordance with DIN 8076 standards ensure a future-proof, maintenance-free hydraulic infrastructure.
