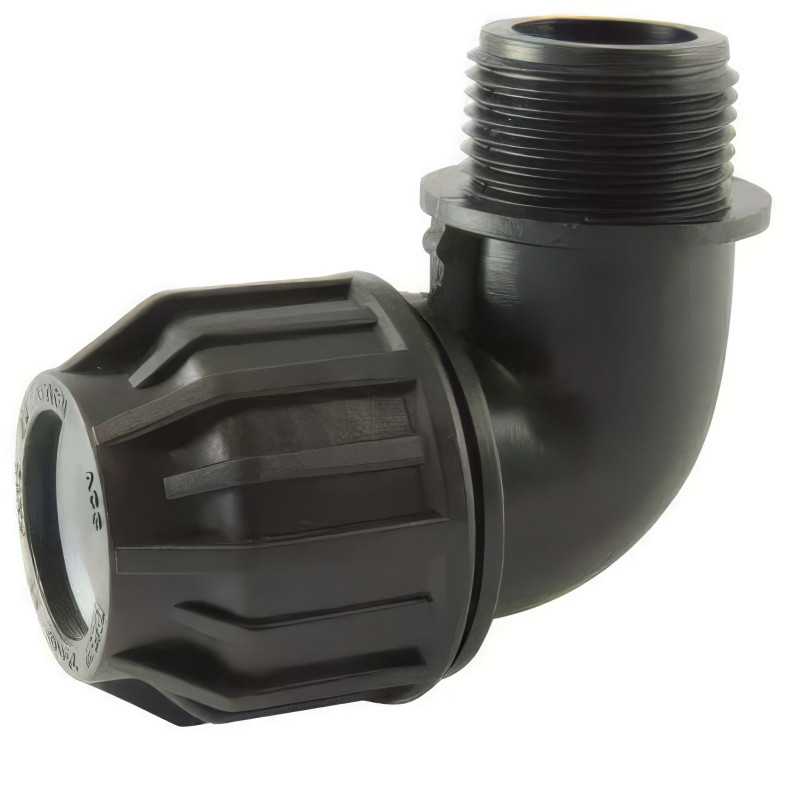

90° Male Elbow with PE Compression | BSP Thread | Polypropylene

The 90° male compression elbow is a strategic polypropylene angle fitting, designed to ensure a precise change of direction while allowing direct transition to a female threaded element. This adapter allows you to connect a polyethylene (PE) pipe to fixed equipment at a perfect 90° angle, optimizing the ergonomics of your hydraulic networks. Its high-density structure is particularly recommended for irrigation, pumping and water supply systems, where space is often at a premium.

Smooth installation: lubricated, captive joint

This elbow has been engineered to simplify installation in hard-to-reach areas, such as pump outlets or valve manifolds. It incorporates cutting-edge technologies to guarantee fast, safe installation:

• Lubricated joint: Facilitates PE pipe insertion by reducing friction, thus avoiding any risk of pinching or tearing during assembly.
• Captive design: The seal remains perfectly housed in the body of the fitting, eliminating any risk of accidental dropping into the trench or misalignment.
• BSP male thread: Conforming to the "Pas Gaz" standard, it ensures universal compatibility with tapped inlets on hydraulic equipment.

Ergonomic tightening and enhanced mechanical strength

Tightening of this male elbow adapter is optimized by its ergonomic, high-strength nut. Its specific geometry provides a firm grip for efficient manual tightening, which can be completed with a suitable wrench for maximum compression. This design ensures even locking of the ring onto the PE pipe, creating a connection capable of withstanding vibrations, water hammer and variations in pressure rating over the long term.

Practical applications and versatility

In a concrete pumping application, this elbow can be used to connect the vertical outlet of a surface pump to a horizontal discharge PE pipe, avoiding the need to twist the pipe. For example, it's the ideal accessory for installing an isolating valve or a non-return valve at an angle in a compact manhole. Its polypropylene construction ensures total immunity to corrosion and excellent resistance to the natural chemical aggressions found in soils.

Low-maintenance, long-lasting polypropylene

Opting for this compression fitting means choosing a durable solution that requires no maintenance once in service. The absence of metal components in the fitting body prevents any scaling or rusting at the bending point, guaranteeing constant flow. Its proven reliability makes it an invaluable ally for drinking water supply and intensive irrigation networks, ensuring constant tightness even in the face of seasonal thermal cycles.

Technical specifications
