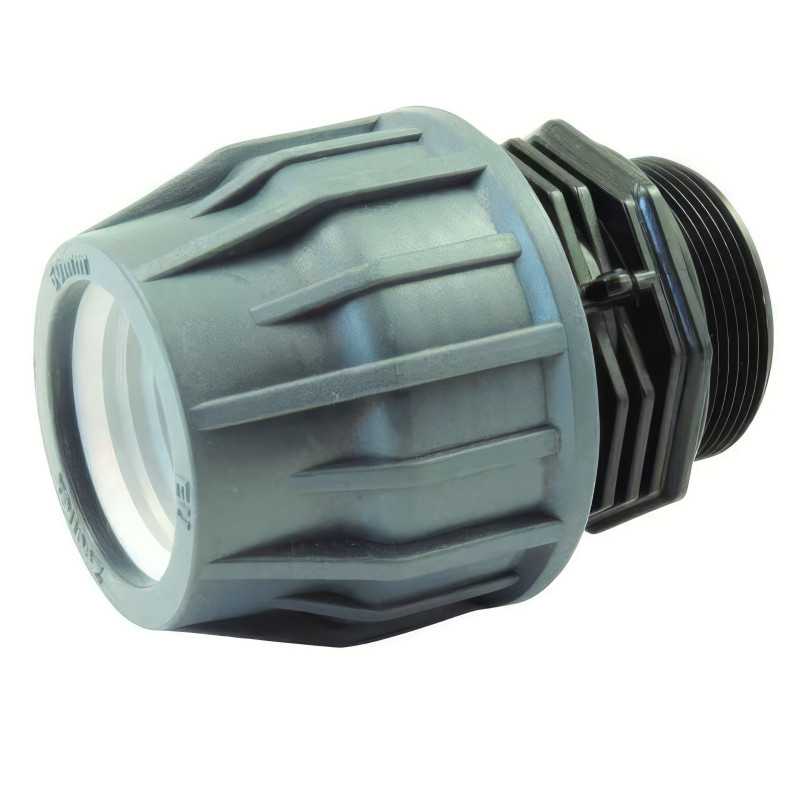

Male threaded compression adapter for pool hose

Male threaded compression adapter for pool hose

delivery within a week

The Male Compression Adapter for PVC Flexible Pool Hose is the ideal solution for connecting your flexible pipes to tapped equipment without gluing. Equipped with a POM ring for maximum grip and a chlorine-resistant EPDM seal , it guarantees an immediate and long-lasting seal. Its lubricated and captive seal and ergonomic nut make installation easy, offering a robust and removable alternative (PN 16) for your pumps, filters and pond equipment.

Safety guarantees100% secure payment
Shipping PolicyResponsive and attentive after-sales service
Returns PolicyFast and secure delivery

The polypropylene compression fitting with male BSP connection is a high-precision technical component designed specifically for the pool world. This fitting reliably connects flexible PVC tubing (soft pressure) to any equipment with a female BSP threaded inlet. It's the essential accessory for connecting your flexible pipes to pumps, filters or collectors without the need for gluing, offering a totally modular and removable installation.

High-performance materials: POM ring and EPDM seal

To guarantee impeccable mechanical resistance and maximum longevity in the demanding environment of a technical room, this fitting uses premium components:

POM (polyoxymethylene)compression ring: This rigid material ensures a powerful, stable grip on the hose wall, preventing accidental dislodging under pressure.
EPDM gasket: Specifically selected for its resistance to treatment products, it withstands prolonged contact with chlorine, bromine and salt electrolysis systems without degradation.

Fluid installation: lubricated, captive seal

This male fitting has been optimized for fast, safe installation. The joint is lubricated at the factory, enabling the flexible PVC pipe to be inserted without excessive friction, thus protecting the seal during assembly. What's more, captive seal technology ensures that the seal remains perfectly housed in the fitting body during handling, eliminating assembly errors and residual leaks common in confined spaces.

Case studies in swimming-pool applications

In the case of a concrete installation of a filtration unit, this male fitting can be screwed directly into the pump body or the filter's multiway valve, while receiving the flexible PVC hose coming from the pool. For example, it's ideal for connecting a heat pump heating system via a flexible bypass. Its high-density polypropylene structure offers total immunity to corrosion and excellent resistance to UV rays.

Ergonomics and reliability PN 16

Equipped with an ergonomic, high-strength nut, this fitting is easy to tighten by hand for immediate sealing on the compression side. The male thread complies with BSP standards, guaranteeing universal compatibility with tapped pool plumbing accessories. Choosing this male compression fitting means opting for a modern solution that combines rapid installation with PN 16-certified reliability, radically simplifying the maintenance of your hydraulic equipment.

Technical specifications

Features	Specifications
Connection type	Male compression adapter
Standard thread	BSP (Male Gas Thread)
Materials	PP body, POM ring, EPDM seal
Sealing	Lubricated, captive seal
Compatibility	Flexible PVC pipes
Operating pressure	PN 16 bar

BrandEzfitt

Reference 536050112

Technical sheet

Summary #1: The polypropylene compression fitting with BSP male connection is a high-precision technical component, designed specifically for the swimming pool world. This fitting allows a flexible PVC hose (soft pressure) to be reliably connected to any equipment with a female gas pitch tapped inlet (BSP). It is the essential accessory for connecting your flexible pipes to pumps, filters or manifolds without the need for gluing, thus offering a totally modular and removable installation.
Summary#2: To ensure impeccable mechanical strength and maximum longevity in the demanding environment of a technical room, this fitting uses premium components: POM (polyoxymethylene) compression ring: This rigid material ensures a strong and stable grip on the wall of the flexible hose, preventing any accidental disconnection under pressure. EPDM gasket: Specifically selected for its resistance to treatment products, it withstands prolonged contact with chlorine, bromine and salt electrolysis systems without degradation.
Summary#3: The mounting of this male fitting has been optimized for quick and safe installation. The gasket is lubricated at the factory, which allows for flexible PVC pipe insertion without excessive friction, thus protecting the seal during assembly. In addition, captive seal technology ensures that the seal remains perfectly lodged in the fitting body during handling, eliminating mounting errors and residual leaks that are common in tight spaces.
Summary#4: In a specific case of installation of a filter unit, this male connection allows the pump housing or the multi-way valve of the filter to be screwed directly into the pump body while receiving the flexible PVC hose from the basin. For example, it is ideal for connecting a heat pump-type heating system via a flexible bypass. Its high-density polypropylene structure offers total immunity to corrosion and excellent resistance to UV rays.
Summary#5: Equipped with a high-strength ergonomic nut, this fitting ensures easy manual tightening for immediate sealing on the compression side. The male threaded part complies with BSP standards, ensuring universal compatibility with tapped pool plumbing fixtures. Choosing this male compression fitting means opting for a modern solution that combines speed of installation with PN 16 certified reliability, thus radically simplifying the maintenance of your hydraulic equipment.

Specific references

EAN13: 3660360506078

Diameter

Ø A: 50mm | Ø B: 1''1/2 Ø A: 50mm | Ø B: 2'' Ø A: 63mm | Ø B: 2''

Combinations	Diameter	Reference	Stock	Price	Add to cart
Diameter : Ø A: 50mm \| Ø B: 1''1/2 Reference : 536050112 Stock : 0	Ø A: 50mm \| Ø B: 1''1/2	536050112	delivery within a week	€9.16 TTC	€9.16 TTC
Diameter : Ø A: 50mm \| Ø B: 2'' Reference : 5360502 Stock : 0	Ø A: 50mm \| Ø B: 2''	5360502	delivery within a week	€9.16 TTC	€9.16 TTC
Diameter : Ø A: 63mm \| Ø B: 2'' Reference : 5360632 Stock : 0	Ø A: 63mm \| Ø B: 2''	5360632	delivery within a week	€12.92 TTC	€12.92 TTC
