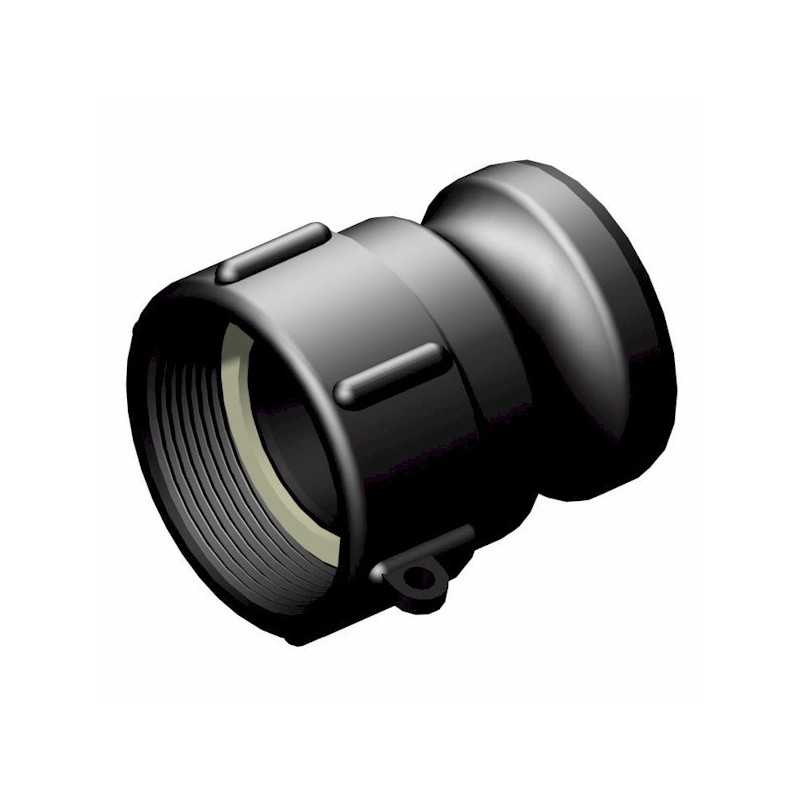

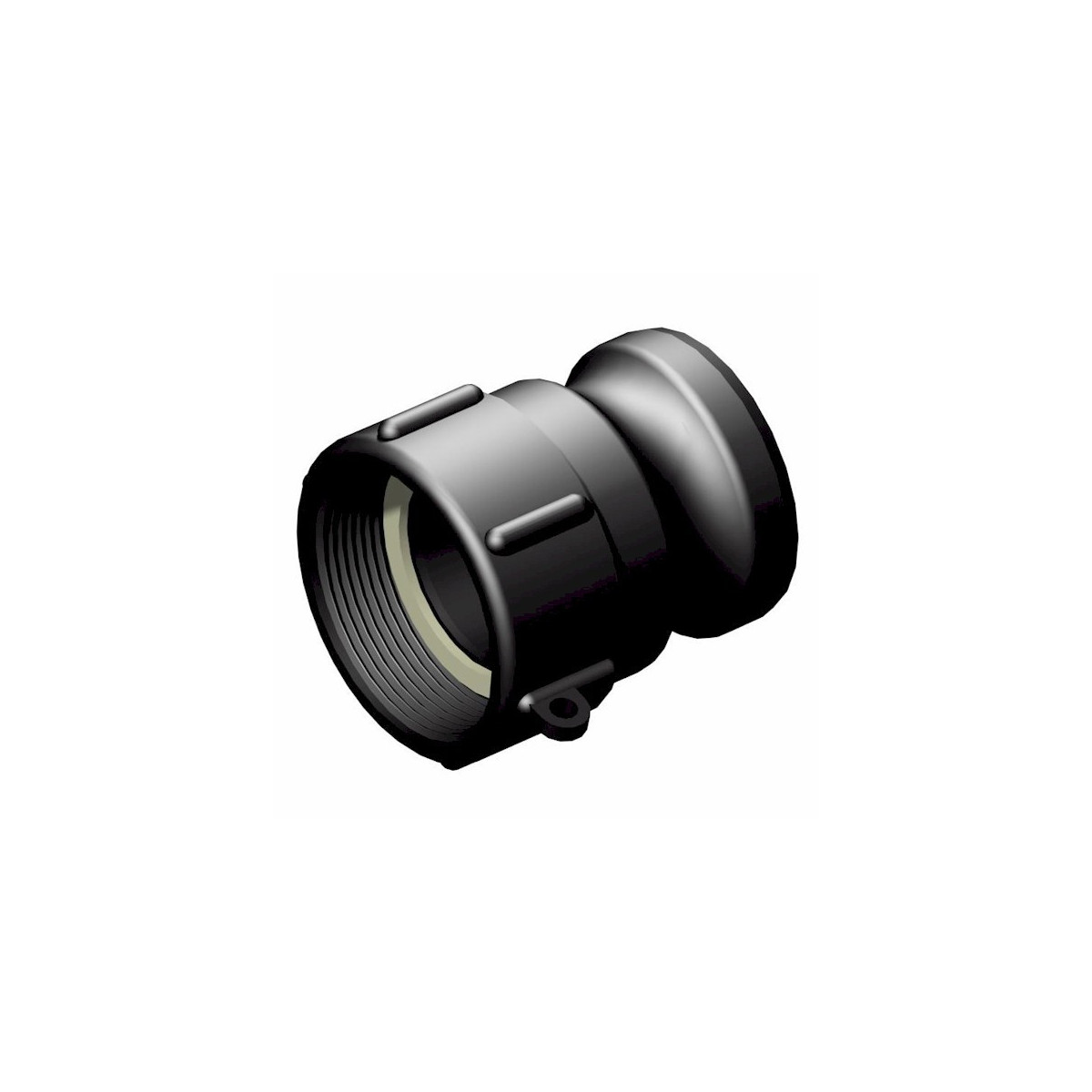

BSP 2'' female fitting - 2" male camlock type A with gasket

BSP 2'' Female Fitting with 2" Male Camlock Type A (Reference: 100163) - The CPP fitting in glass fiber reinforced polypropylene positions itself as a leading technical solution for interconnecting professional hydraulic systems. This hybrid fitting combines the robustness of BSP 2 inch threading with the speed of use of the camlock system, meeting the strictest requirements for industrial fluid connections.

Applications and usage sectors

This BSP 2'' female fitting finds its place in multiple activity sectors thanks to its exceptional versatility. In the chemical industry, it enables secure connection of 1000L IBC tanks to camlock transfer systems. Agricultural operations adopt it to connect their BSP irrigation equipment to rapid distribution networks.

Washing stations, methanization centers and water treatment units value its extensive compatibility with existing equipment. Its use proves particularly judicious for connecting pumps, valves, meters and other BSP 2 inch threaded elements to camlock circuits, eliminating downtime during maintenance operations.

Technical design and materials

The construction in glass fiber reinforced polypropylene gives this fitting remarkable mechanical properties. This lightweight composition offers excellent resistance to corrosion, thermal shock and repeated mechanical stress. The BSP 2'' female thread strictly complies with British standards, guaranteeing perfect compatibility with all standard market equipment.

The type A male camlock part integrates a precise and robust cam locking system. The hardened polypropylene cams resist intensive wear and maintain their efficiency even after thousands of usage cycles. The supplied gasket guarantees a perfectly sealed connection, preventing any risk of leakage or contamination.

Installation and operating procedures

Installation of this BSP 2'' female fitting is carried out in two distinct and complementary stages. On the BSP threading side, screwing is performed according to best practices: preliminary cleaning of threads, possible application of a polypropylene-compatible sealant, then progressive tightening with the appropriate wrench respecting the recommended torque.

On the camlock side, connection is achieved without tools in seconds. Simply insert the male part into the corresponding female camlock fitting, then fold down the cams to lock the assembly. Visual verification and leak testing confirm proper execution of the connection.

Maintenance is limited to regular cleaning with clear water and periodic checking of the gasket condition. When used with aggressive fluids, rinsing after each use significantly extends the fitting's service life.

Optimization and expert advice

To maximize the performance of this BSP 2'' camlock fitting, several best practices deserve to be highlighted. Association with corresponding diameter female camlock fittings of equivalent quality optimizes sealing and longevity of the assembly. Using replacement gaskets of the same specification guarantees maintenance of sealing properties over time.

In seasonal applications, particularly watering or irrigation, this fitting greatly facilitates assembly/disassembly operations of temporary installations. Its compatibility with IBC tanks and their accessories makes it a strategic element for water storage and distribution systems.

Maintenance professionals appreciate its camlock standardization which allows interchangeability with numerous mobile equipment: transfer pumps, loading hoses, swivel fittings and specialized accessories. This versatility considerably reduces intervention times and simplifies spare parts management.

Technical specifications
