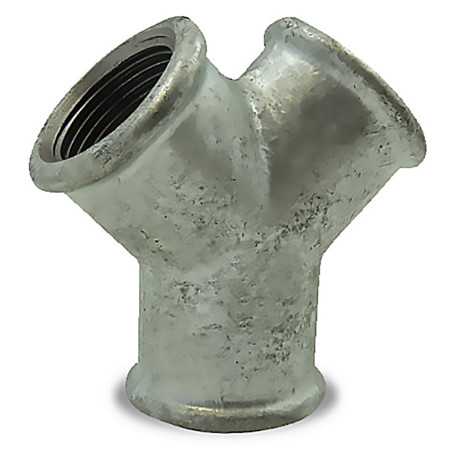

Distributor "Y" F/F/F in malleable cast iron

Field of application: distribution of water, drinking water, gas, steam, liquid and non-corrosive gases. HVAC systems.

Design, manufacture and control:
- The connections are manufactured in accordance with EN 10242 and ISO 49.
- Material nuance: EN-GJMW-400-5 according to EN 1562.
- The finish of the fittings is galvanized (ep. 70μm). Corrosion protection is added by allowing the fittings to be preserved.
- All threaded connections comply with ISO 7-1 (BSPT), with conical male tip (R) and cylindrical female tip (Rp). The free nuts for union connection are of the gas type in accordance with ISO 228-1 (BSPP).
- 100% of the fittings are tested for leakproofness

Mark Multitanks

Reference 220G-12

In stock 9 Items

Technical data sheet

Summary#1: Distributor "Y" F/F/F in malleable cast iron
Summary#2: Field of application: distribution of water, drinking water, gas, steam, liquid and non-corrosive gases. HVAC systems.
Summary#3: The connections are manufactured in accordance with EN 10242 and ISO 49. Material grade: EN-GJMW-400-5 according to EN 1562.
Summary#4: The finish of the fittings is galvanized (ep. 70μm). Corrosion protection is added by allowing the fittings to be preserved.
Summary#5: All threaded connections comply with ISO 7-1 (BSPT), with conical male tip (R) and cylindrical female tip (Rp).

Specific references

ean13: 3760317888520

Combinations	Diameter	Reference	Stock	Price	Add to cart
Diameter : 1/2'' Reference : 220G-12 Stock : 9	1/2''	220G-12	Available now Stock : 9	€8.95 TTC	€8.95 TTC
Diameter : 3/4'' Reference : 220G-34 Stock : 0	3/4''	220G-34	Shipping time between 5 and 7 days	€30.62 TTC	€30.62 TTC
Diameter : 1'' Reference : 220G-1 Stock : 0	1''	220G-1	Shipping time between 5 and 7 days	€50.11 TTC	€50.11 TTC
