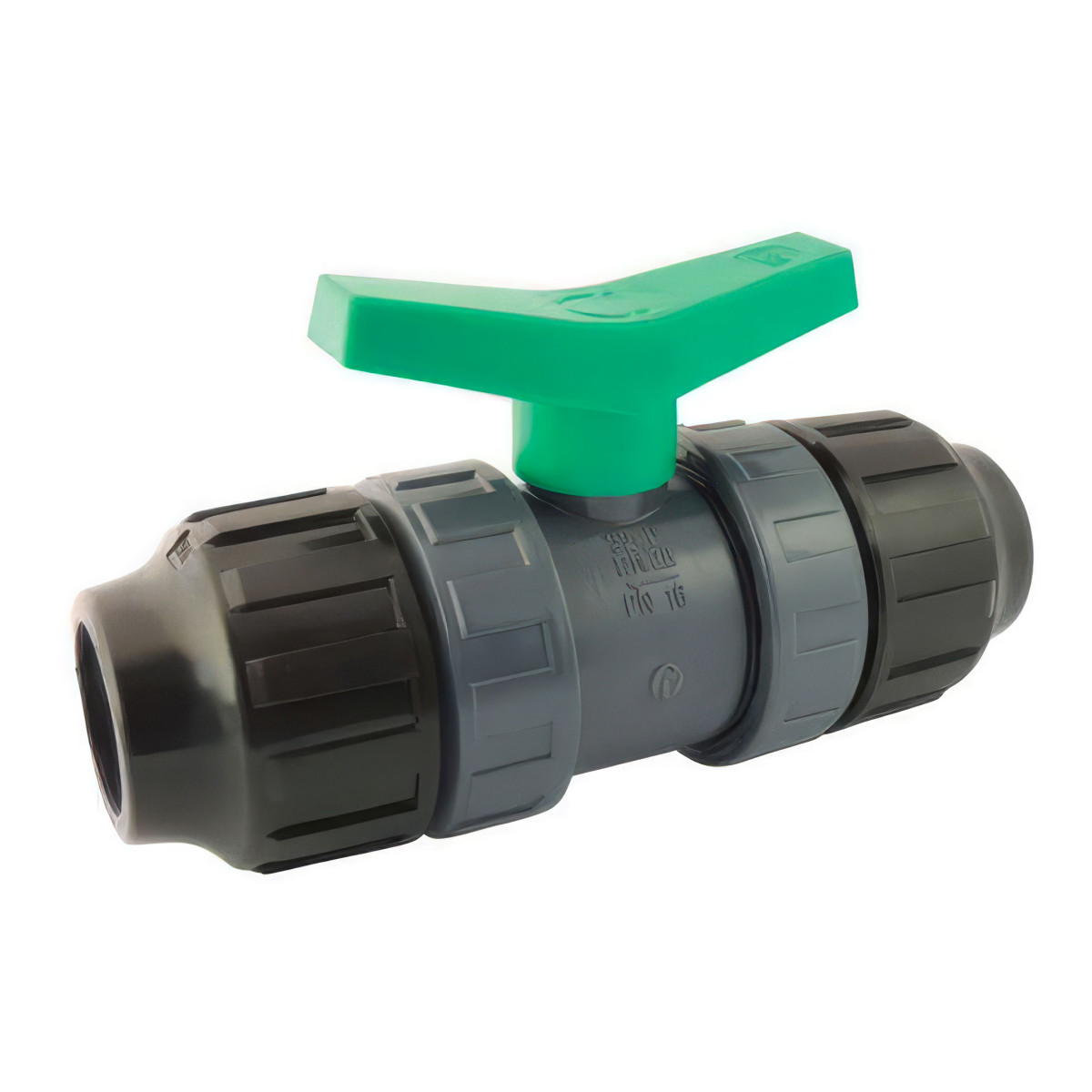

PE PN10 tube sphere valve with compression connections

The PE Tube Ball Valve is a high-performance cut-off device designed specifically for the disconnection of water supply and irrigation networks. Equipped with compression connections, this valve allows for direct and fast integration into your polyethylene tubing without the need for complex tooling or welding. Its robust structure guarantees a perfect seal and easy handling, making it the preferred solution for installations requiring precise control of the hydraulic flow.

Technical materials: PP, HDPE and EPDM

This valve uses high-tech materials to ensure maximum longevity in wet and underground environments. The compression tips are made of polypropylene (PP), offering excellent mechanical strength, while the HDPE (High Density Polyethylene) seat allows for smooth maneuvering of the sphere. Internal sealing is provided by EPDM O-rings, a material known for its excellent resistance to ageing and its total compatibility with drinking water and irrigation networks.

10 bar PN performance and thermal resistance

Calibrated for a pressure rating of PN 10 bar, this ball valve is ideally suited for domestic and agricultural distribution networks. It can withstand a service temperature of up to 60°C maximum, thus largely covering the needs of cold and tempered water transfer. Its internal design limits pressure drops, ensuring a constant and efficient flow for your pumping systems or gravity circuits, while preserving the integrity of the structure in the face of pressure variations.

Concrete application cases and versatility

In a concrete case of professional gardening or agriculture, this valve is installed to isolate a specific irrigation area without interrupting the rest of the main network. For example, it can be placed at the head of the manifold on a PE tube to facilitate winter emptying or pump maintenance. Its resistance to chemical agents and UV allows it to be used both in underground manholes and on exposed surface pipes, offering total versatility to installers and network managers.

Simplified installation and reduced maintenance

Thanks to the compression system, the valve is assembled by simply tightening the nuts, ensuring a firm and tight grip on the PE tube. The design of the valve body allows easy access for periodic cleaning if necessary, although the materials used (PP and HDPE) naturally limit scaling and deposits. Choosing this valve means opting for durable, ergonomic and reliable disconnect equipment, capable of withstanding the constraints of outdoor installation over the long term.

Technical characteristics
