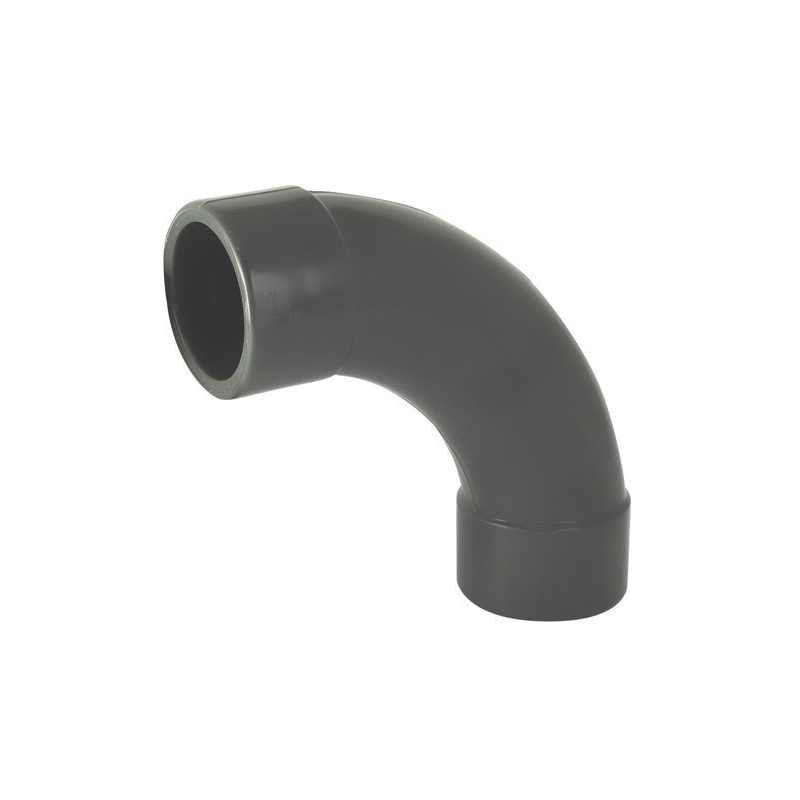

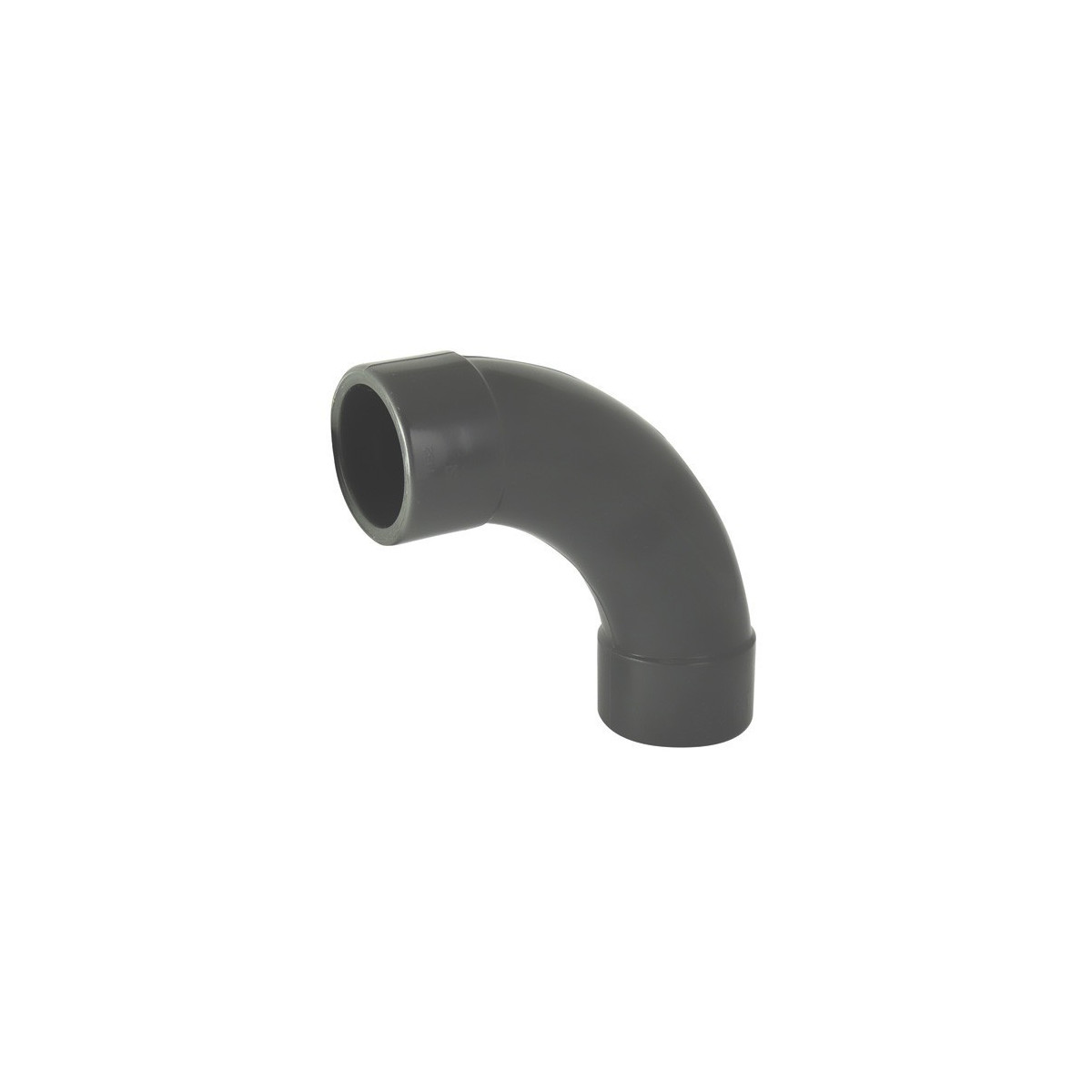

Large Radius 90° Elbow Female/Female Solvent Weld

Large Radius 90° Elbow Female/Female Solvent Weld Codital (Reference: 5001) represents excellence in hydraulic connections. This premium PN16 PVC fitting from the Codital brand combines robustness, reliability and performance to meet the most demanding requirements of professional and domestic installations. Compliant with European standard EN 1452, it guarantees impeccable quality and optimal safety for all your hydraulic projects.

Applications and Benefits

This large radius 90° elbow excels in a wide range of critical applications. For drinking water supply, it ensures safe and hygienic transport of food-grade fluids thanks to its non-toxic PVC-U composition. Irrigation and watering professionals particularly appreciate its ability to maintain constant pressure while reducing head losses thanks to its large radius of curvature.

In the swimming pool and spa sector, this fitting perfectly withstands chemical treatments (chlorine, bromine, UV) while preserving the integrity of the hydraulic circuit. The chemical and food industry finds in this piece a reliable ally for the transport of special fluids, thanks to its excellent chemical resistance and smooth inner surface that prevents deposits and facilitates cleaning.

Technical Specifications and Innovation

The PN16 PVC used for this elbow offers exceptional pressure resistance (16 bar) and a service life of over 50 years under normal conditions of use. The large radius of curvature, a distinctive feature of this product, significantly reduces head losses compared to standard elbows, thus improving the energy efficiency of your installation.

The female solvent weld sockets guarantee a perfect and durable seal thanks to solvent cement bonding technology. This design eliminates any risk of loosening or mechanical deterioration, ensuring maximum reliability even under stress. The range of available diameters, from 20 to 110mm, allows perfect adaptation to all types of installations, from residential to industrial.

Installation and Practical Use

Installing this PVC elbow requires careful preparation to ensure optimal assembly. Thoroughly clean the contact surfaces with a suitable degreaser, then deburr the pipes to obtain a clean perpendicular cut. The use of a specific PVC cement compliant with standard EN 14814 is mandatory to ensure a watertight seal.

Strictly observe the drying times recommended by the adhesive manufacturer before pressurising (generally 12 to 24 hours depending on climatic conditions). For maintenance, a simple rinse with clean water is sufficient, as PVC is naturally resistant to limescale deposits and biofilms. Avoid sudden thermal shocks and respect the maximum service temperature of 20°C to preserve the mechanical properties of the material.

Expert Tips and Synergies

To optimise your installations, combine this elbow with straight connectors, tees and reducers from the same Codital range to guarantee perfect consistency. Professionals recommend the use of appropriate fixing clamps to avoid mechanical stress on bonded joints, particularly in cases of thermal expansion.

Expert tip: for outdoor installations, protect PVC fittings from direct UV radiation with a protective sleeve or specific paint. During winter, ensure complete draining of unheated circuits to avoid frost-related stress. For high-pressure applications, prefer a restrained installation to distribute forces and extend the service life of the installation.

Technical Specifications
