Female S100x8 fitting - male BSP 3'' threaded

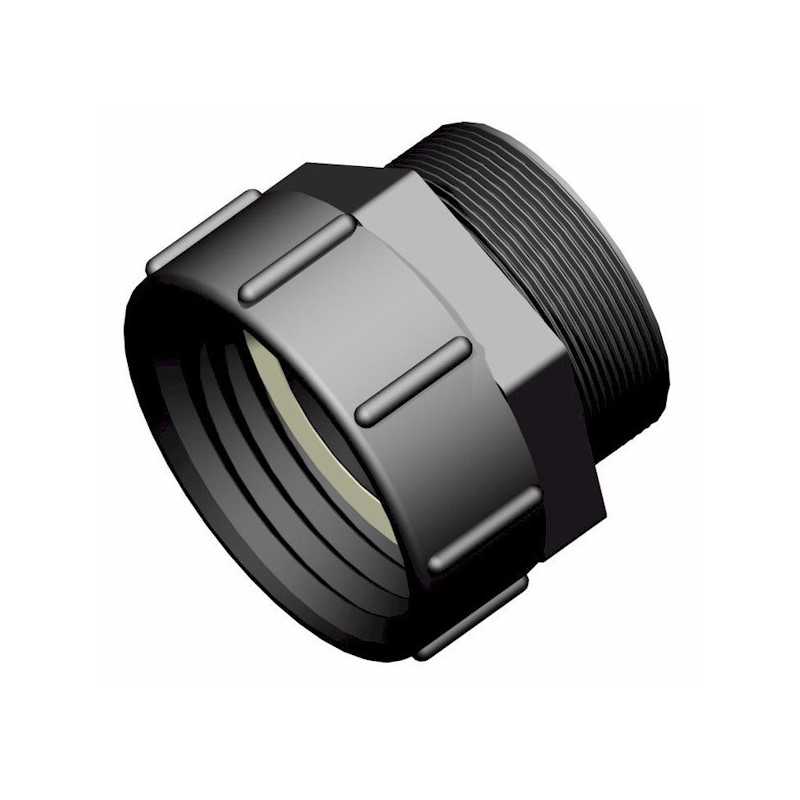

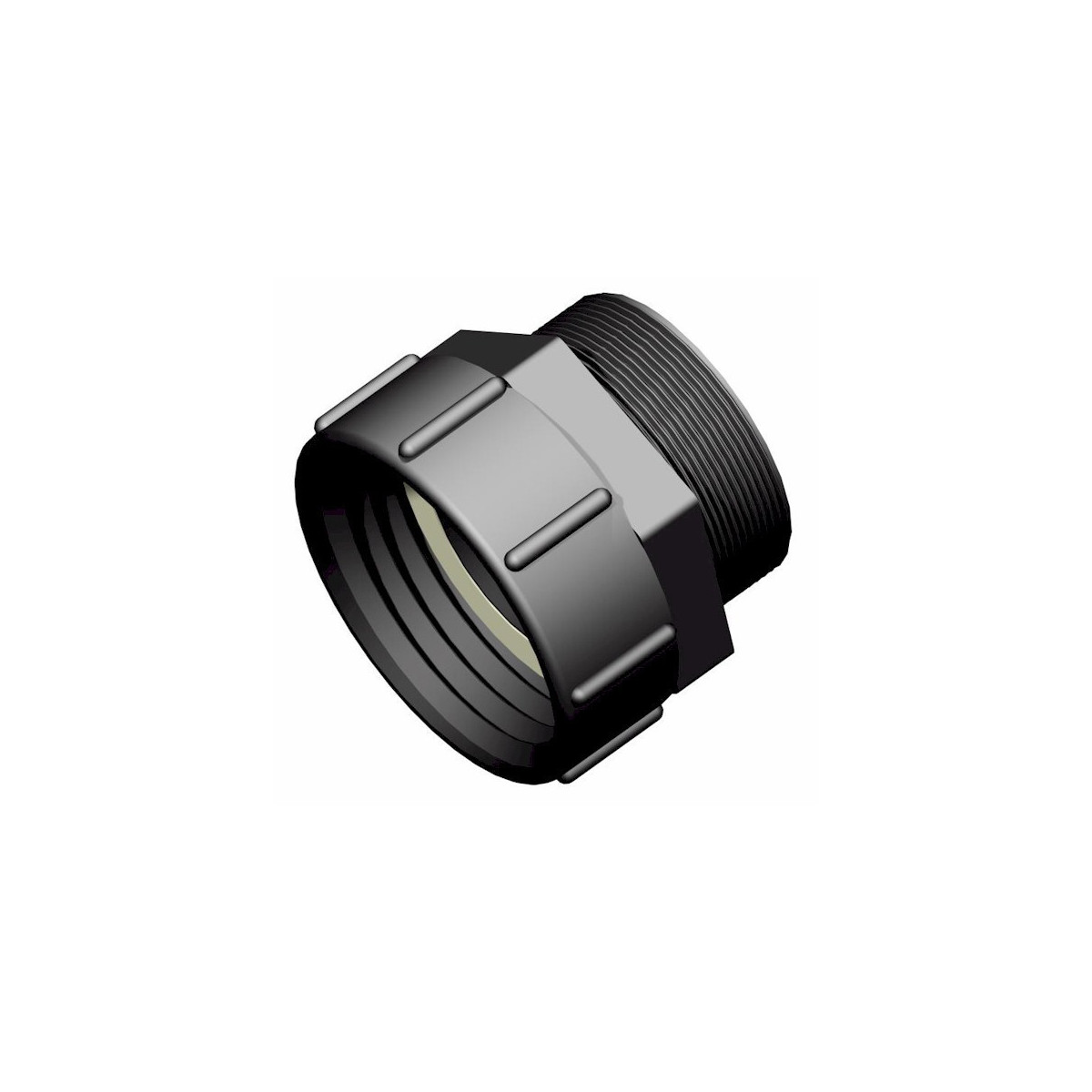

Female S100x8 fitting - male BSP 3'' threaded (Reference: 100185) manufactured by CPP in glass fiber reinforced polypropylene. This professional fitting enables direct connection between IBC 1000L tank necks and BSP 3 inch piping systems. Food contact certified, it meets the strictest requirements for industrial and agricultural applications.

Benefits and use cases

This fitting is primarily aimed at professionals using IBC 1000L tanks for liquid storage and distribution. Farmers use it to connect their water tanks to irrigation systems, while manufacturers integrate it into their compatible chemical product circuits.

Perfectly suited for applications requiring a transition between the standard S100x8 thread of IBC tanks and the BSP 3 inch thread commonly used in industrial plumbing. Its robust design allows intensive use both outdoors and indoors, resistant to thermal variations and difficult weather conditions.

Washing stations, surface treatment companies and wine operations adopt it for its reliability and ease of installation. Compatible with most non-corrosive liquids, oils, detergents and food solutions.

Technical specifications and innovation

The polypropylene filled with 30% glass fiber gives this fitting superior mechanical properties. This composition offers high rigidity and excellent hardness, guaranteeing optimal resistance to mechanical stress and service pressures.

The female S100x8 thread strictly respects standardized dimensions: inner diameter from 97 to 100mm and thread pitch of 8mm. The male BSP 3 inch thread (British Standard Pipe) ensures perfect sealing with standard market fittings.

The exceptional chemical resistance of polypropylene allows use with numerous products: dilute acids, bases, polar solvents, oils and greases. The special food contact treatment complies with current European standards for food industry applications.

Its one-piece design eliminates leak risks and simplifies maintenance. The smooth surface facilitates cleaning and prevents residue accumulation.

Installation and use

Installation requires no specialized tools. Hand-screw the female S100x8 part onto your IBC tank neck following the rotation direction. The sealed design allows moderate tightening without risk of deterioration.

For the BSP 3 inch connection, use teflon or pipe joint compound according to your piping manufacturer's recommendations. Respect the tightening torque to avoid plastic thread deformation.

Regularly check connection sealing, particularly during temperature changes. Monthly visual inspection allows early detection of any wear signs.

For maintenance, simple rinsing with clear water is sufficient in most cases. For stubborn deposits, use neutral detergents compatible with polypropylene. Avoid aggressive solvents and abrasives that could damage the surface.

Tips, synergies and expert advice

To optimize your installation, combine this fitting with our BSP 3 inch ball valves which guarantee precise flow control. This combination is particularly effective for rapid drainage or transfer applications.

Agricultural professionals recommend adding an upstream basket filter to protect pumping equipment from impurities. This precaution considerably extends your installation's lifespan.

Seasonal tip: in winter, completely drain the fitting if the installation is not frost-protected. Although polypropylene resists low temperatures, frozen water expansion can damage threads.

For chemical applications, consult our material compatibility chart before use. Some products, although non-corrosive, may cause polypropylene swelling in the long term.

Avoid stressed assemblies: respect piping alignment to prevent parasitic tensions on the fitting. Adequate downstream piping support distributes forces and extends service life.
