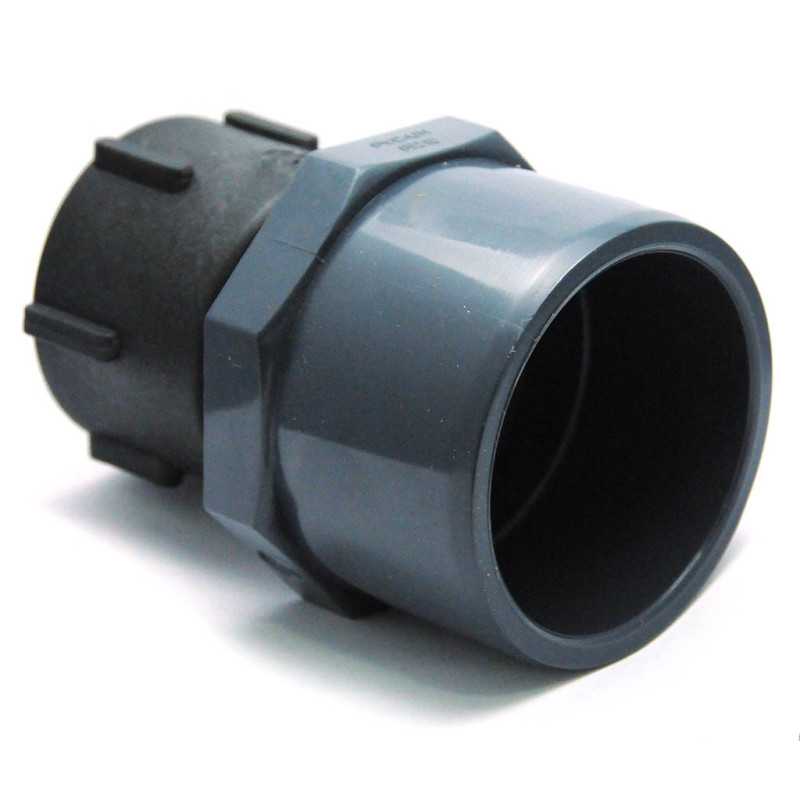

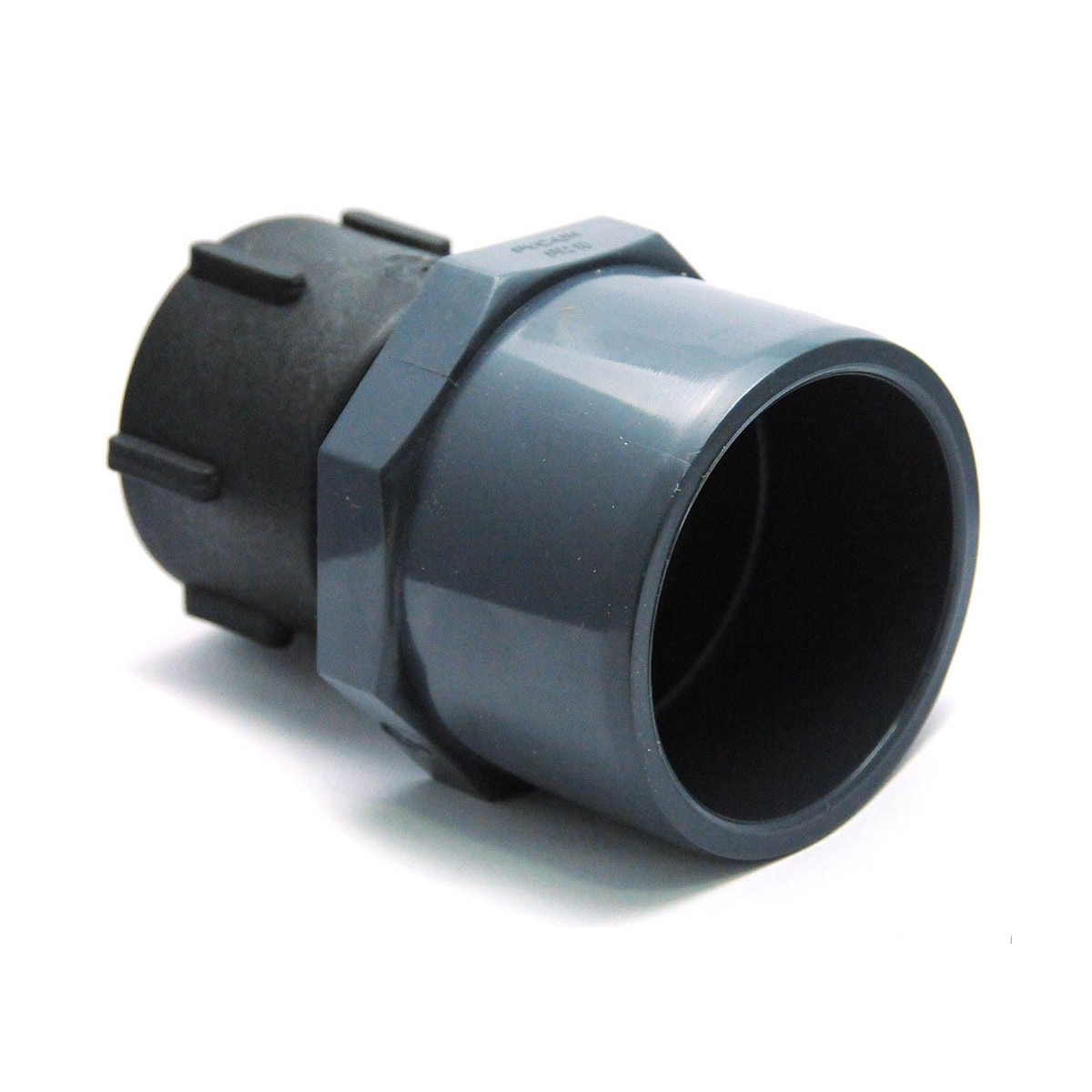

S60x6 Female Fitting - PVC Female 75/90

S60x6 Female Fitting - PVC Female 75/90 (Reference: 101002) represents the optimal technical solution for connecting your 1000 liter IBC tank to a PVC piping network. Designed and manufactured according to Multitanks standards, this adapter guarantees a watertight and lasting connection between the S60x6 thread of your tank and PVC pipes diameter 75/90.

Applications and benefits

This fitting addresses both individuals wishing to optimize their irrigation system and professionals managing more complex water storage installations. It finds its place in numerous configurations: connecting IBC tanks for garden irrigation, creating irrigation networks, connection to rainwater recovery systems, or integration into industrial installations.

The main advantage lies in its universal compatibility with standard PVC pipes on the market. Once installed, you can easily glue your PVC tubes and benefit from a modular installation according to your specific needs. This flexibility allows you to adapt your installation over time without replacing the entire system.

Technical specifications and design

The design of this fitting is based on a perfectly machined S60x6 female thread, with an internal nut diameter of 56mm, ensuring total compatibility with valves and standard fittings of IBC tanks. The selected material resists UV, temperature variations and mechanical stresses related to water pressure.

The PVC female outlet 75/90 complies with European dimensional standards, guaranteeing perfect compatibility with all PVC tubes available commercially. This standardization greatly facilitates the planning and execution of your installations, whether you are an amateur DIYer or experienced professional.

With a weight of 400 grams, this fitting offers an excellent compromise between robustness and ease of handling. Its compact design allows installation in restricted spaces while maintaining optimal mechanical resistance.

Installation and practical use

Installing this fitting requires an S60x6 valve previously mounted on your IBC tank. Screwing is done manually initially, then finalized using a suitable wrench to guarantee sealing. It is recommended to use a gasket or thread paste to perfect the sealing of the assembly.

Once the fitting is in place, connecting PVC tubes is done by traditional gluing using appropriate PVC glue. This assembly method guarantees a permanent and watertight connection, ideal for permanent installations. For temporary uses or requiring occasional dismantling, it is possible to use screw fittings or suitable hose clamps.

Maintenance is limited to periodic checking of sealing and external cleaning. When using with liquids other than clear water, regular rinsing will extend the service life of the fitting.

Expert advice and system optimization

To maximize the efficiency of your installation, combine this fitting with other elements from the Multitanks catalog. S60x6 valves with levers or butterfly valves allow precise flow control, while pressure reducers optimize distribution in irrigation networks.

A professional tip is to install a drain at the low point of your PVC network to avoid freezing problems in winter. This precaution, simple to implement, preserves the integrity of your installation in the long term.

For automatic irrigation installations, favor adding a Gardena irrigation timer upstream of the system. This combination transforms your IBC tank into a true autonomous irrigation station, ideal for maintaining large gardens or crops.

Be careful not to oversize the diameter of downstream tubes: a PVC tube with too large a diameter would reduce the available pressure and compromise irrigation efficiency, particularly on gravity installations.
