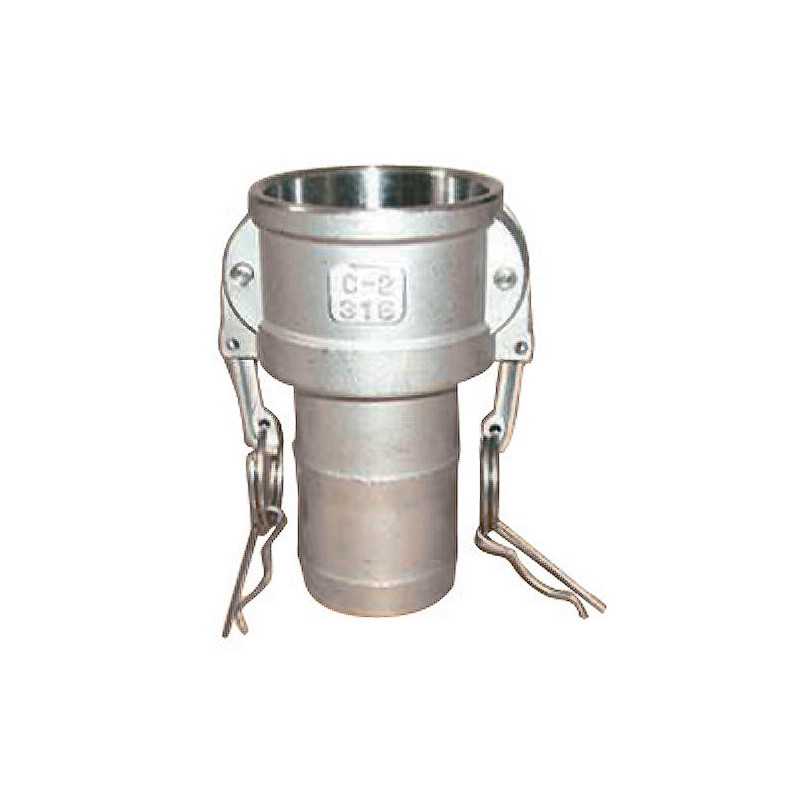

Female Camlock Fitting - Grooved Hose Shank in Aluminium - Type C

Female Camlock Fitting with Grooved Hose Shank in Aluminium Type C (Reference: 3680) represents excellence in industrial coupling. Designed to meet the most demanding professional requirements, this Camlock fitting combines technical innovation with proven robustness. Its high-quality aluminium construction ensures optimal performance under all industrial operating conditions.

Applications and Professional Benefits

The Type C female Camlock fitting finds its place in a wide range of demanding industrial environments. Chemical, petroleum, food processing and pharmaceutical industries rely on this solution for their critical fluid transfers. Its grooved hose shank ensures a perfectly leak-free connection with flexible hoses, eliminating the risk of costly leaks.

This fitting excels particularly in tanker truck loading/unloading operations, fuel transfer systems, and water treatment installations. Its design enables fast and safe manoeuvres, significantly reducing downtime and optimising team productivity.

Agricultural professionals appreciate its versatility for irrigation systems, liquid fertiliser spreading and the transfer of crop protection products. Its corrosion resistance makes it an ideal choice for humid and chemically aggressive environments.

Technical Specifications and Innovation

The high-quality aluminium used in the manufacture of this Camlock fitting offers an exceptional strength-to-weight ratio. This characteristic allows easy handling even during repetitive operations, while maintaining superior mechanical resistance to industrial stresses.

The cam locking mechanism is at the heart of this fitting's innovation. The hardened steel cams ensure progressive and uniform clamping, guaranteeing a perfect seal under pressure. The ergonomic lever system allows effortless actuation, even when wearing protective gloves.

The grooved hose shank features precisely machined ridges that maximise hose grip. This design prevents any slipping or inadvertent disconnection, even under high pressure or vibration. The anti-corrosion surface finish considerably extends the service life of the component.

Compatible with international standards, this fitting integrates perfectly into existing installations. Its modular design allows combination with other Camlock elements to create complex and scalable coupling systems.

Installation and Professional Use

Installing the Type C female Camlock fitting is achieved in a few simple but precise steps. Insert the grooved hose shank into the flexible hose up to the stop, then position the clamp over the grooves. Clamping must be evenly distributed to ensure optimal sealing.

For connection with a corresponding male fitting, perfectly align both elements before actuating the locking levers. An audible click confirms correct engagement of the mechanism. Always check that the cams are fully closed before pressurising.

Regular maintenance significantly extends the service life of the fitting. Clean the contact surfaces after each use, particularly in dusty or chemical environments. Periodically lubricate the cam joints with a grease compatible with your application.

Visually inspect the seals before each use. Immediately replace any seal showing signs of wear, hardening or cracking. This precaution prevents costly production stoppages and preserves operator safety.

Expert Advice and Product Synergies

To optimise the performance of your installation, pair this female Camlock fitting with our complementary male Camlock fittings of the same diameter. This combination ensures perfect compatibility and optimal performance of the complete system.

For food-grade applications, favour the use of food-grade EPDM seals available in our accessories range. For aggressive chemical fluids, opt for Viton seals with high chemical resistance.

A common mistake is to over-tighten the hose clamps on the grooved shank. This practice can damage the hose and compromise the seal. Always observe the torque values recommended by the hose manufacturer.

For temporary or mobile installations, consider adding Camlock protective caps to protect the fittings during transport and storage. These accessories prevent contamination and extend the service life of the fittings.

In marine or highly corrosive environments, regularly apply an anti-corrosion protection product to exposed metal parts. This precaution maintains fitting performance even in the most severe conditions.
