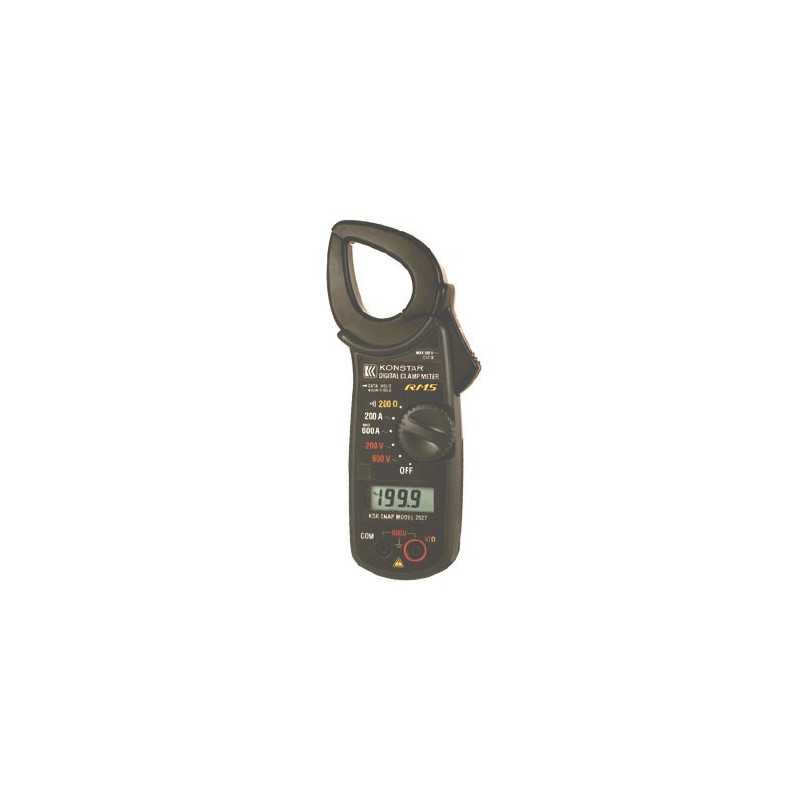

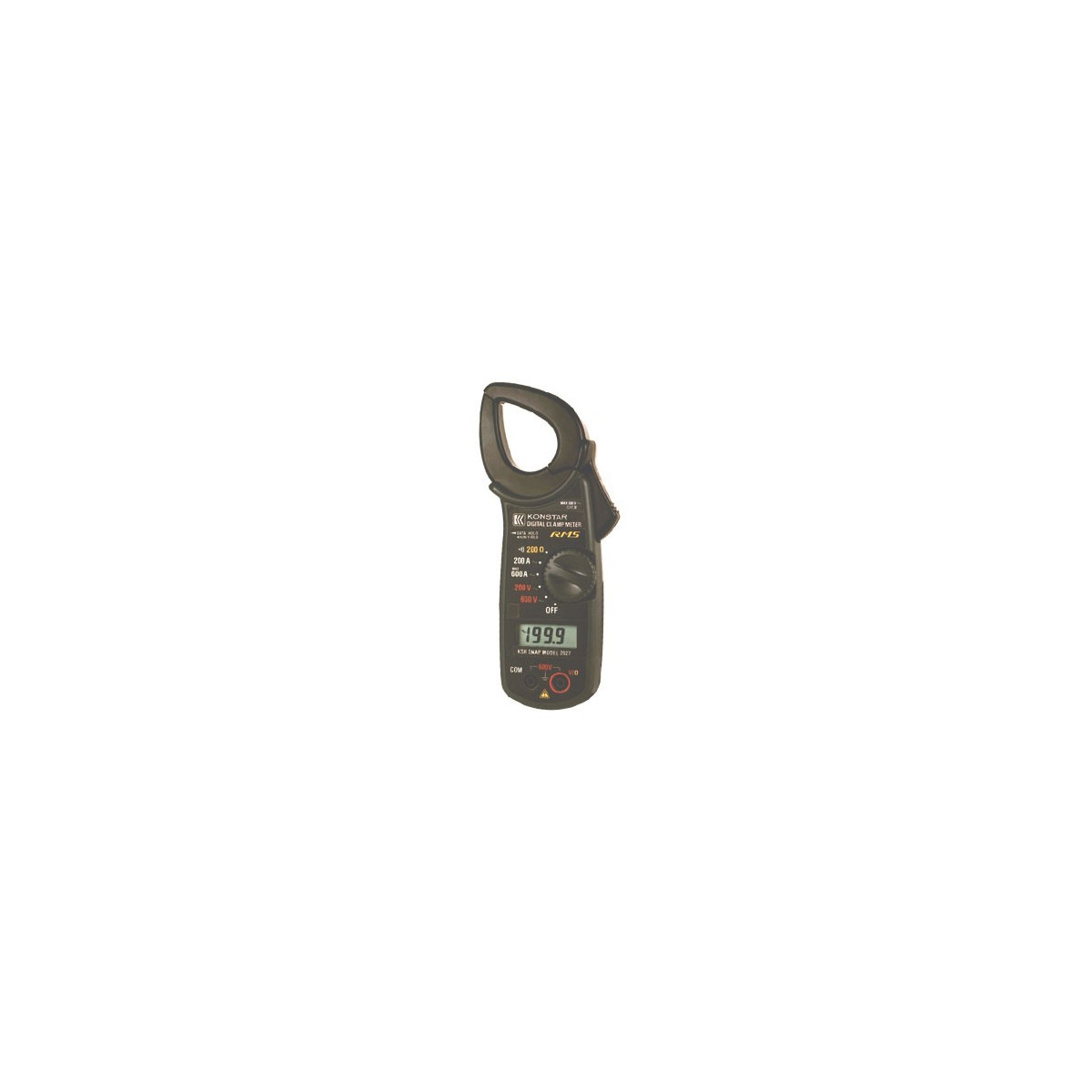

Clamp Ammeter FC-2027

FC-2027 True RMS 600A Clamp Ammeter (Reference: 080110) - The professional measuring instrument that revolutionizes your electrical diagnostics. This high-end clamp ammeter integrates True RMS technology for unmatched precision measurements, even on complex and non-sinusoidal waveforms generated by modern equipment.

Professional uses and applications

The FC-2027 clamp is primarily designed for professional electricians, industrial maintenance technicians and electrical engineers. It excels in controlling commercial and industrial electrical installations, measuring consumption on electric motors, pumps and LED lighting systems. Advanced users also adopt it to monitor their domestic energy consumption or diagnose faults on their equipment.

Thanks to its measuring capacity up to 600 amperes, it covers a wide range of applications: from residential heating circuits to high-power industrial motors. Its True RMS technology ensures reliable measurements on inverters, variable speed drives and switching power supplies that generate distorted signals.

True RMS technology and technical performance

The technological heart of the FC-2027 relies on its True RMS (Root Mean Square) function, which calculates the actual effective value of signals, unlike standard devices that estimate this value. This technology becomes crucial with modern non-linear loads: LED lighting, inverters, variable speed motors.

Technical specifications reveal remarkable precision: ±1.5% of reading ±4 digits for AC measurements between 50 and 60 Hz, with a crest factor below 3. The measurement range extends from 200 to 600 amperes AC, while voltage measurement covers 200 to 600 volts DC and AC. The ohmmeter function offers a resolution of 200 ohms with an accuracy of ±1.2%.

Operating instructions and measurement procedures

Using the FC-2027 clamp follows strict safety protocols. Always cut power before any intervention on an electrical circuit. To measure current, open the clamp jaws and enclose a single conductor - never multiple wires simultaneously to avoid measurement errors.

Voltage measurement is performed by connecting test leads to appropriate terminals, respecting polarity for DC measurements. The continuity test integrates an audible buzzer that triggers below 30±20 ohms, facilitating quick connection verification and short-circuit detection.

Minimal maintenance consists of keeping the jaws clean and aligned, regularly checking the condition of test leads and storing the device in a dry environment. Periodic calibration at an accredited organization ensures measurement reliability over time.

Expert advice and product synergies

To optimize your electrical diagnostics, combining the FC-2027 clamp with a conventional multimeter allows covering all measurements: the clamp for high currents without circuit interruption, the multimeter for precision voltages and resistances. This complementarity proves particularly effective in industrial maintenance.

Common error to avoid: measuring current on a multi-conductor cable. The measured current would correspond to the vector sum of currents, often close to zero on a balanced circuit. Always isolate the phase conductor to be measured.

In industrial environments, favor morning measurements when equipment is cool and electromagnetic disturbances are minimal. For photovoltaic installations, the True RMS function becomes essential when dealing with harmonics generated by inverters. Completing your toolset with appropriate PPE reinforces operational safety.

Technical specifications
