ATEX Drum Heater LB Series | 230V 660W max, self-regulating cable without plug - without cover

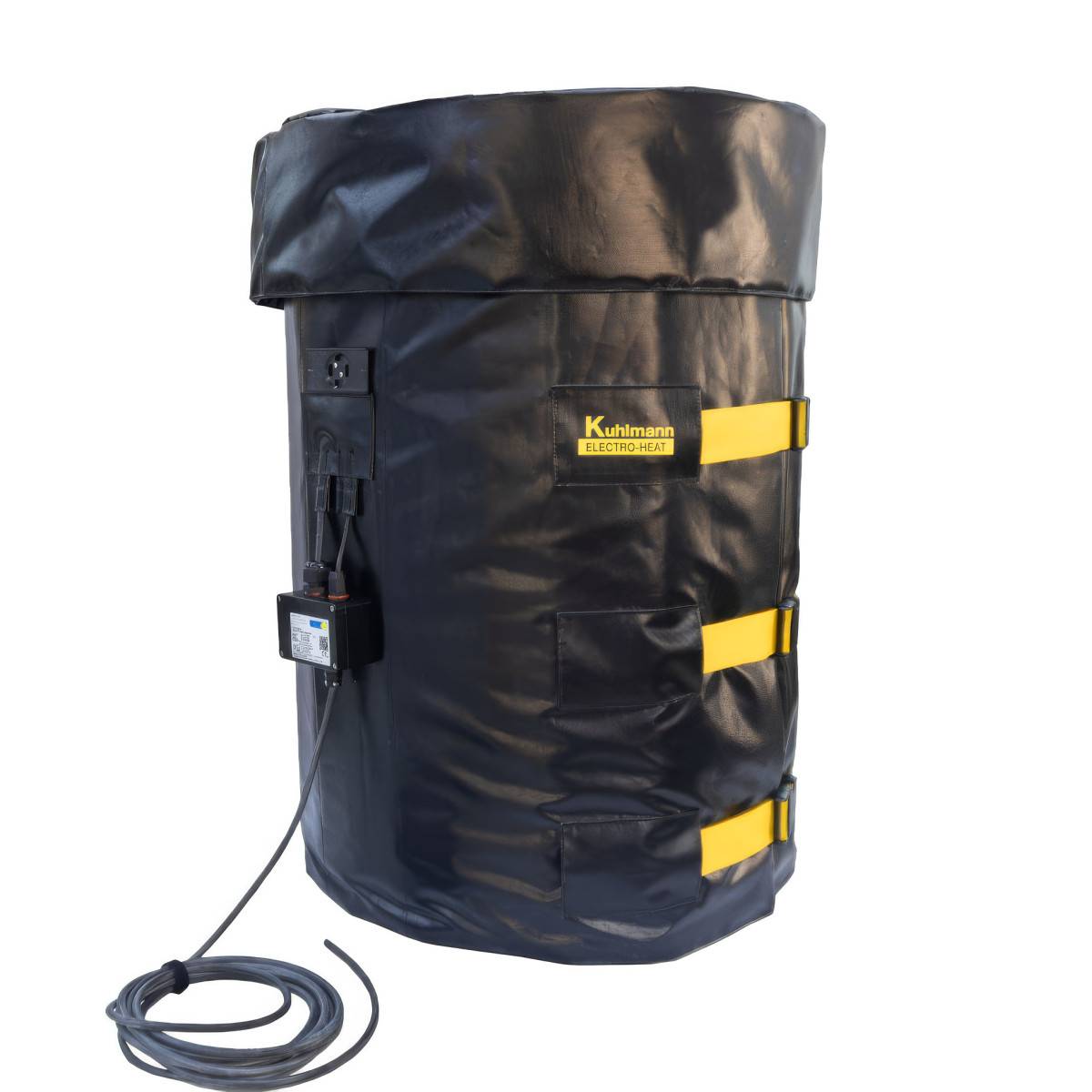

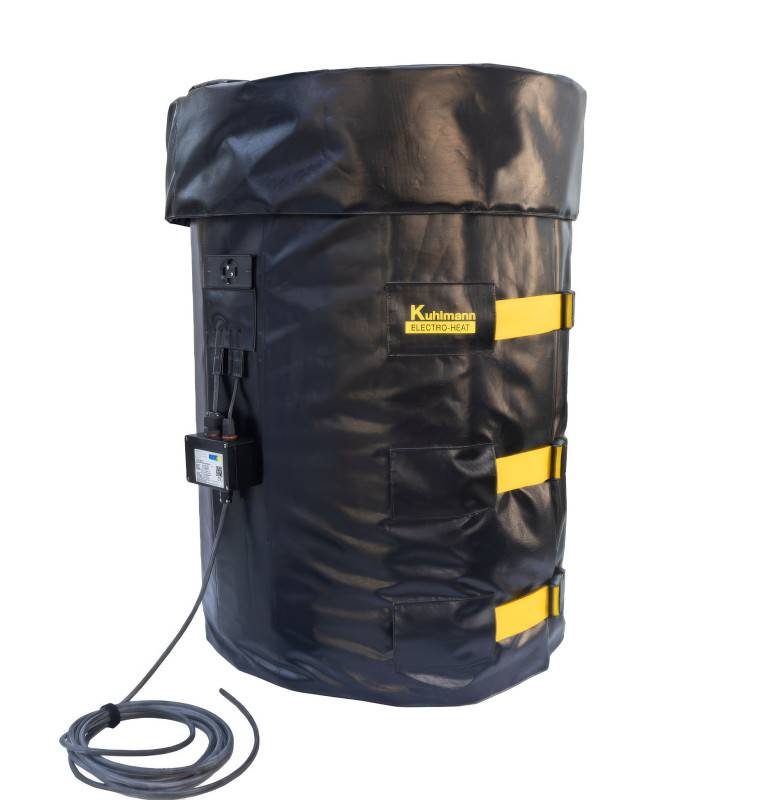

LB Series ATEX Drum Heater: Self-Regulating Safety and Installation Flexibility

Heating drums in industrial environments at risk of explosion requires equipment of the highest reliability and optimal installation flexibility. The LB Series ATEX Drum Heater is designed to meet the most stringent safety requirements of ATEX zones 1, 2, 21 and 22. This device provides safe and energy-efficient temperature control for drums containing chemicals, oils, or other sensitive materials. Thanks to its IP65 rating, it offers excellent dust and water resistance, making it ideal for demanding industrial environments.

Self-Regulating Technology for Energy Efficiency

This keg heater is distinguished by its self-regulating heating technology. This smart system automatically adjusts its power output (ranging from 160W to 660W depending on the size of the keg) as the temperature rises. This ensures safe and consistent heating while reducing energy consumption. This automatic limitation is essential for compliance with ATEX temperature classes (T6 to T1), ensuring a controlled operating temperature (65 degrees Celsius energized). The device is also equipped with an ATEX-certified junction box that simplifies cable replacement when needed, improving durability and reliability.

 Custom Installation: Plugless Connection Cable

To offer maximum adaptability to the specificities of each industrial plant, the LB Series ATEX drum heater comes with a 5 meter (3G1.5 mm²) connection cable that is SUPPLIED WITHOUT TERMINAL PLUG.

• Flexibility : This approach allows the customer to install the plug or connection system of their choice themselves, in line with the electrical and safety standards in force on their site.

• Local Compliance : This ensures that the heater installation can be integrated directly and safely into any existing electrical system.

This installation flexibility is a major asset for professionals looking for an adaptable and certified solution.

Crucial Information: Sold without Insulating Lid

It is important to note that this LB Series ATEX Drum Heater is sold SEPARATELY from the insulating cover.

Although combining this heater with the ATEX insulating cover can optimize energy efficiency and reduce heat loss, the cover is not included in this offer. The user should order it as an option to maximize benefits, especially for:

• Reduce energy costs by trapping heat.

• Accelerate the rise in temperature.

• Extend the temperature maintenance in cold areas.

This heater provides the secure base and necessary heating, but the addition of the lid is highly recommended for complete thermal management.

Industrial Versatility and Technical Specifications

The LB series covers a wide range of kegs, with adapted powers (160W to 660W to 230V) to ensure maximum efficiency:

The heater is made of antistatic and water-repellent PVC fabric (B2 flame retardant) and is equipped with secure fastening straps. Applications include frost protection, temperature maintenance, and safe heating of volatile materials.

Technical Specifications of the LB Series ATEX Drum Heater
