Brass Wall Fitting Series 7000 PN25 | Wall Light for PE Tube

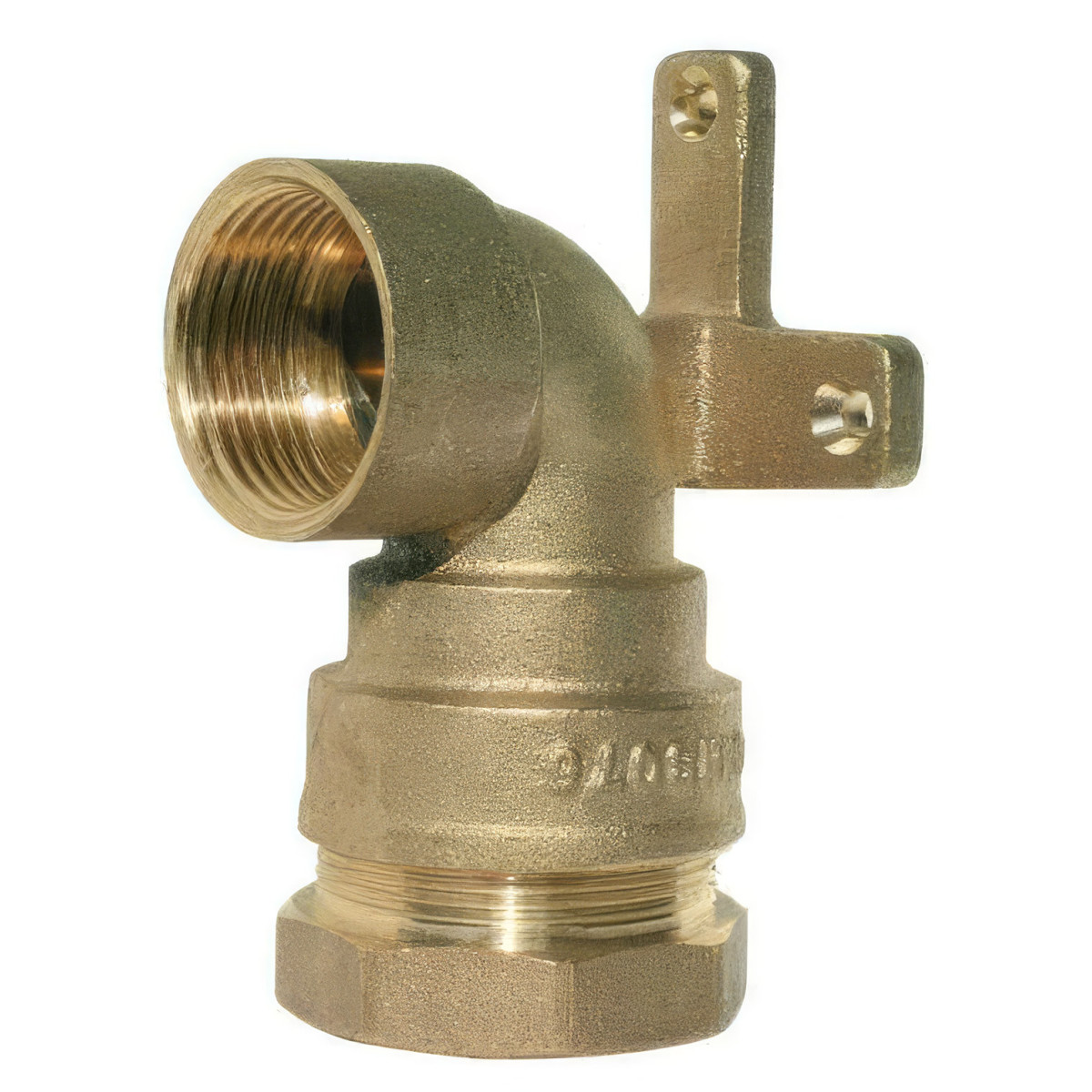

The 7000 Series brass wall compression fitting, also known as a wall bracket or bracket elbow, is the essential technical solution for creating a secure, fixed tapping point. Designed to transform a polyethylene (HDPE or LDPE) pipe inlet into a female threaded outlet securely fixed to the support, this fitting is the ideal ally for the installation of garden taps, watering valves or drinking water distribution points. Made from CW617N brass, it offers exceptional rigidity and longevity for all your outdoor and indoor hydraulic infrastructures.

Robust mounting with integrated wall bracket

This fitting features a wide base with several fixing points for permanent anchoring to walls, low walls or technical walls. This design, with integrated wall bracket, absorbs mechanical stresses when opening and closing the taps, protecting the PE pipe from unnecessary tension or twisting. The robustness of CW617N brass, combined with this mounting plate, ensures that your water point remains perfectly immobile and functional, even after years of intensive use in a variety of climatic conditions.

PN25 performance and H62 cramping technology

Despite its termination function, this fitting makes no compromises on strength. Certified PN 25 bar for diameters ranging from 16 mm to 50 mm, it easily withstands water hammer and the high pressures of supply networks. The safety of the connection with the PE pipe is ensured by an H62 brass notched ring, which provides a powerful, unbreakable bite on the polyethylene. Internal sealing is ensured by a high-precision O-ring (in NBR or EPDM), guaranteeing a hermetic circuit over a temperature range from 0°C to +50°C.

Installation ergonomics and ISO 7-1 precision

To facilitate installation in the field, this wall-mounted fitting features an extra-large clamping nut for optimum grip. The body of the fitting also incorporates holding flats suitable for standard wrenches, facilitating final tightening without the risk of scratching or deforming the material. The female threaded outlet scrupulously complies with the ISO 7-1 (BSPT) standard, ensuring universal compatibility with taps and accessories on the market. What's more, the wide gasket spans guarantee a perfect flat gasket seal from 1 mm thickness upwards.

Technical specifications

Health compliance and installation advice

This product fully complies with French legislation concerning materials intended for human consumption. For long-lasting installation, we recommend fixing the wall bracket to the wall before making the final PE pipe connection. Use wall plugs and screws adapted to your type of support (brick, concrete, wood). To seal the valve in the female outlet, the use of a flat gasket is facilitated by the wide gasket span, but PTFE tape or filasse remain perfectly compatible options thanks to the precision of the Rp tapping.
