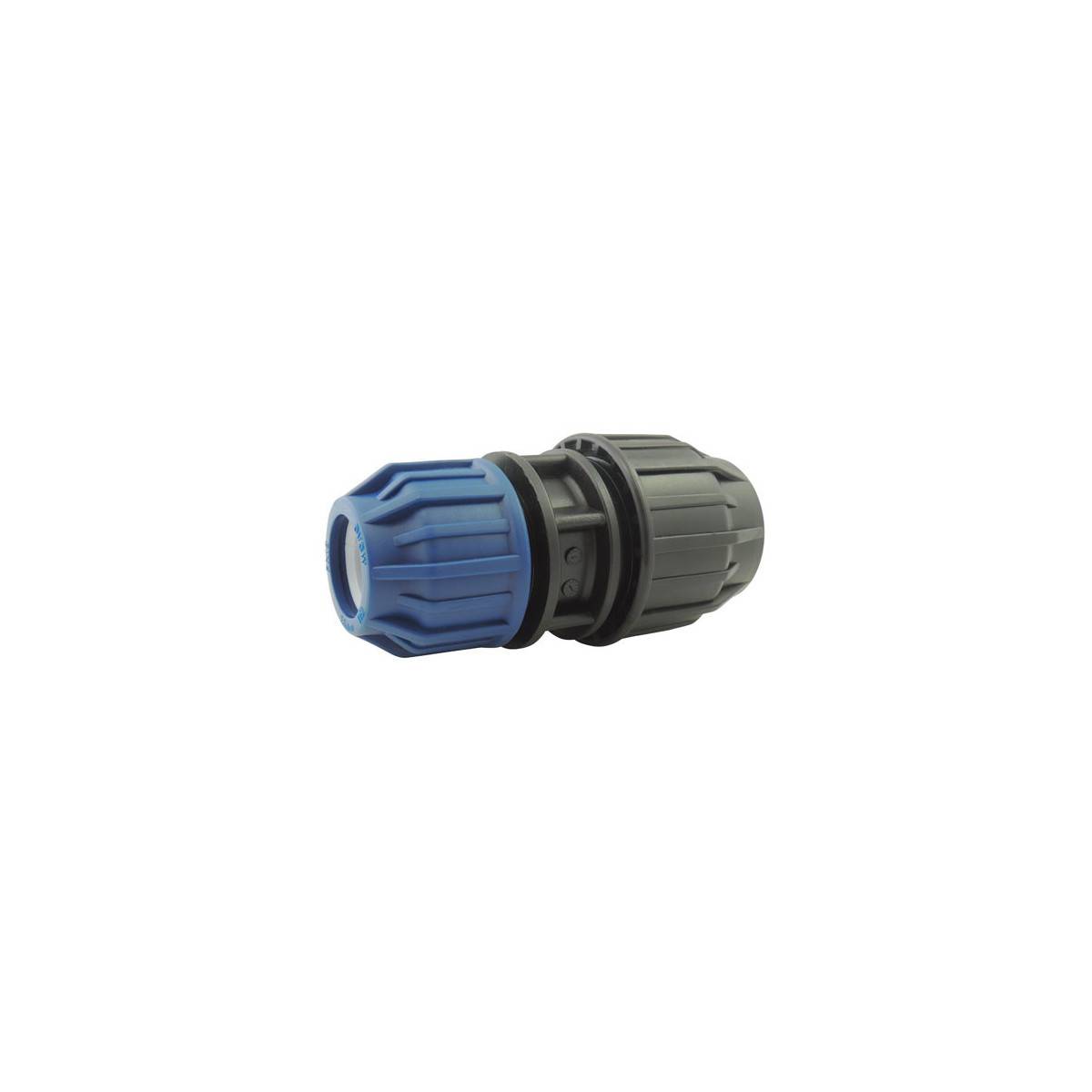

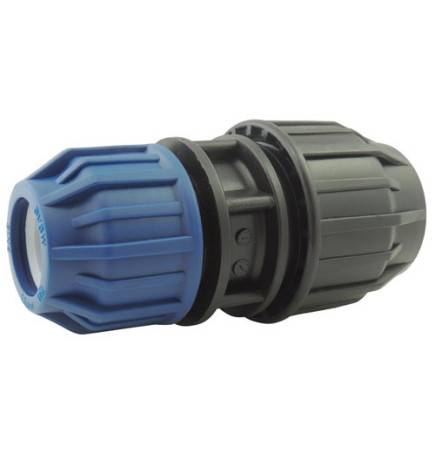

Compression Transition Adapter

Ezfitt Compression Transition Adapter (Reference: 5351) represents the ideal technical solution for connecting a polyethylene (PE) pipe with any other pipe made of various materials. This universal fitting allows reliable joints to be made between different types of pipework, whether PVC, ABS, steel, stainless steel, copper or lead. Designed according to the most demanding professional standards, this adapter guarantees a perfect seal and exceptional long-term durability.

Professional Applications and Use Cases

This transition adapter proves useful in many situations where it is necessary to connect pipelines of different natures. Plumbers and heating engineers frequently use it during renovations to connect new PE pipework to existing steel or copper networks. Farmers and market gardeners appreciate it for connecting their PE irrigation systems to water points fitted with traditional brass or stainless steel valves.

In the food processing industry, this adapter allows PE circuits to be connected to stainless steel equipment, thereby ensuring the continuity of flow without compromising hygiene standards. Local authorities use it to progressively modernise their water supply networks by integrating modern PE into historical cast iron or steel infrastructure. This versatility makes it an essential component in rehabilitation and network extension projects.

Technical Design and Quality Materials

The construction of this adapter is based on a rigorous selection of technical materials. The polypropylene main body offers excellent chemical and mechanical resistance, withstanding pressure stresses and thermal variations without deterioration. This technical plastic material retains its mechanical properties over a wide temperature range, from -10°C to +60°C, making it a perfect choice for both outdoor and indoor applications.

The POM clamping ring (polyoxymethylene) provides the rigidity and dimensional precision necessary for the correct functioning of the compression system. This technical material, renowned for its dimensional stability and creep resistance, ensures uniform and lasting clamping. The NBR O-ring (nitrile butadiene rubber) guarantees the seal of the assembly thanks to its excellent elastic properties and compatibility with most conveyed fluids.

Installation and Practical Implementation

Installing this transition adapter requires no specialised tools or particular technical skills. The first step is to prepare the pipe ends by making a straight, clean cut, then carefully deburring the edges to avoid damaging the O-ring during insertion. It is recommended to use a pipe cutter suitable for the material to obtain a perfectly perpendicular cut surface.

The compression fitting is carried out by fully inserting the PE pipe into the adapter up to the stop, then tightening the compression nut by hand before finalising the tightening with a flat spanner. The tightening torque must be progressive to allow the ring to deform uniformly around the pipe. The other end is connected according to the technique appropriate to the material concerned: threading for screw fittings, solvent welding for PVC, brazing for copper.

Expert Tips and Performance Optimisation

To maximise the performance and longevity of this adapter, several precautions should be observed. When connecting to old metal pipes, it is advisable to check the internal surface condition and eliminate any trace of corrosion or deposits that could compromise the seal. The use of a suitable penetrating lubricant facilitates subsequent disassembly without damaging the components.

In installations subject to vibrations or significant thermal expansion, the addition of fixing clamps on either side of the adapter prevents excessive mechanical stress. For critical applications, it is wise to keep spare adapters and additional O-rings in the maintenance stock. Chemical compatibility must be verified when conveying particular fluids such as hydrocarbons or solvents.
