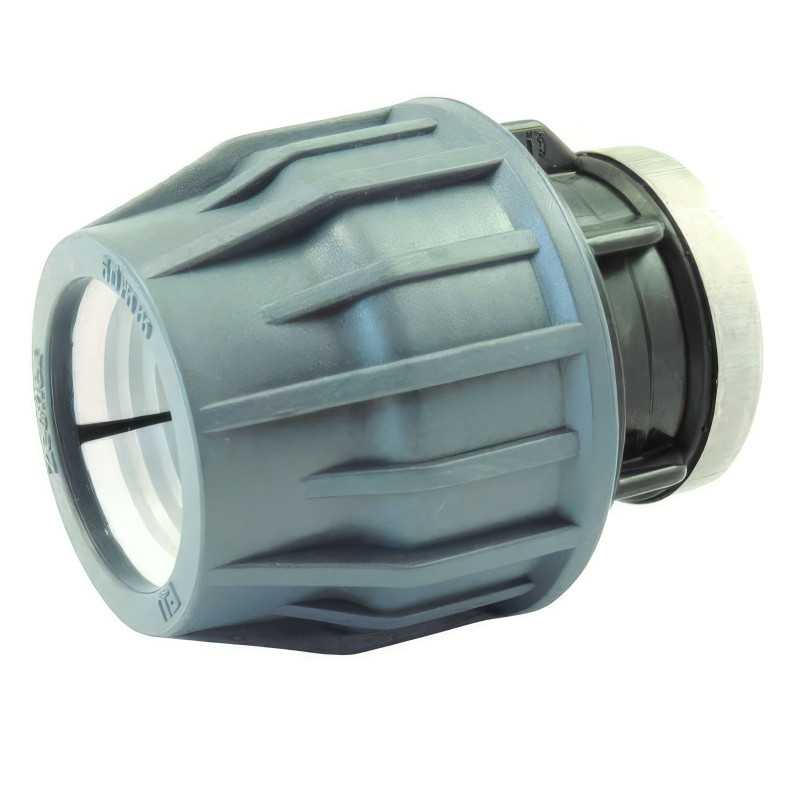

Female threaded compression adapter for pool hose

Female threaded compression adapter for pool hose

delivery within a week

The Female Compression Adapter for PVC Flexible Pool Hose is the ideal solution for connecting your flexible pipes to threaded equipment without gluing. Equipped with a POM ring for maximum grip and a chlorine-resistant EPDM seal , it guarantees an immediate and long-lasting seal. Its lubricated and captive seal and ergonomic nut make installation easy, offering a robust and removable alternative (PN 16) for your pumps, filters and heating systems.

Safety guarantees100% secure payment
Shipping PolicyResponsive and attentive after-sales service
Returns PolicyFast and secure delivery

The polypropylene compression coupling with BSP female connection is a technical adaptation solution designed specifically for the swimming pool world. This fitting allows a flexible PVC hose (soft pressure) to be reliably connected to any equipment with a male gas pitch threaded outlet (BSP). It is the essential accessory for connecting your flexible pipes to valves, pumps or rigid manifolds without the need for gluing, thus offering a modular and removable installation.

High-performance materials: POM ring and EPDM sealing

To ensure impeccable mechanical strength and maximum longevity in the demanding environment of a technical room, this fitting uses premium components:

POM (polyoxymethylene) compression ring: This rigid material provides a strong and stable grip on the wall of the flexible hose, preventing accidental dislocation under pressure.
EPDM gasket : Specifically selected for its resistance to treatment products, it withstands prolonged contact with chlorine, bromine and salt electrolysis systems without degradation.

Smooth installation: Lubricated and captive seal

The installation of this female fitting has been optimised for quick and safe installation. The gasket is lubricated at the factory, which allows for flexible PVC pipe insertion without excessive friction, thus protecting the seal during assembly. In addition, captive seal technology ensures that the seal remains perfectly lodged in the fitting body during handling, eliminating mounting errors and residual leaks that are common in tight spaces.

Concrete cases of application in swimming pools

In a specific case of heat pump installation, this female fitting allows to connect directly to the threaded inlets/outlets of the device while receiving the flexible PVC hose coming from the pool. For example, it is ideal for mounting a pressure gauge or a tapped flow sensor on a flexible filter line. Its high-density polypropylene structure offers total immunity to corrosion and excellent resistance to UV rays.

Ergonomics and reliability PN 16

Equipped with a high-strength ergonomic nut , this fitting ensures easy manual tightening for immediate sealing on the compression side. The female threaded part complies with BSP standards, guaranteeing universal compatibility with pool plumbing accessories. Choosing this female compression fitting means opting for a modern solution that combines speed of installation with PN 16 certified reliability, thus radically simplifying the maintenance of your hydraulic equipment.

Technical characteristics

Attributes	Specifications
Fitting Type	Female compression adapter
Standard thread	BSP (Female No Gas)
Materials	PP Body, POM Bushing, EPDM Gasket
Waterproofing	Lubricated and captive seal
Compatibility	Flexible/flexible PVC hoses
Operating pressure	PN 16 bar

BrandEzfitt

Reference 536250

Technical sheet

Summary #1: The polypropylene compression coupling with BSP female connection is a technical adaptation solution designed specifically for the swimming pool world. This fitting allows a flexible PVC hose (soft pressure) to be reliably connected to any equipment with a male gas pitch threaded outlet (BSP). It is the essential accessory for connecting your flexible pipes to valves, pumps or rigid manifolds without the need for gluing, thus offering a modular and removable installation.
Summary#2: To ensure impeccable mechanical strength and maximum longevity in the demanding environment of a technical room, this fitting uses premium components: POM (polyoxymethylene) compression ring: This rigid material ensures a strong and stable grip on the wall of the flexible hose, preventing any accidental disconnection under pressure. EPDM gasket: Specifically selected for its resistance to treatment products, it withstands prolonged contact with chlorine, bromine and salt electrolysis systems without degradation.
Summary#3: The installation of this female fitting has been optimised for quick and safe installation. The gasket is lubricated at the factory, which allows for flexible PVC pipe insertion without excessive friction, thus protecting the seal during assembly. In addition, captive seal technology ensures that the seal remains perfectly lodged in the fitting body during handling, eliminating mounting errors and residual leaks that are common in tight spaces.
Summary#4: In a specific case of heat pump installation, this female fitting allows to connect directly to the threaded inlets/outlets of the device while receiving the flexible PVC hose coming from the pool. For example, it is ideal for mounting a pressure gauge or a tapped flow sensor on a flexible filter line. Its high-density polypropylene structure offers total immunity to corrosion and excellent resistance to UV rays.
Summary#5: Equipped with a high-strength ergonomic nut, this fitting ensures easy manual tightening for immediate sealing on the compression side. The female threaded part complies with BSP standards, guaranteeing universal compatibility with pool plumbing accessories. Choosing this female compression fitting means opting for a modern solution that combines speed of installation with PN 16 certified reliability, thus radically simplifying the maintenance of your hydraulic equipment.
