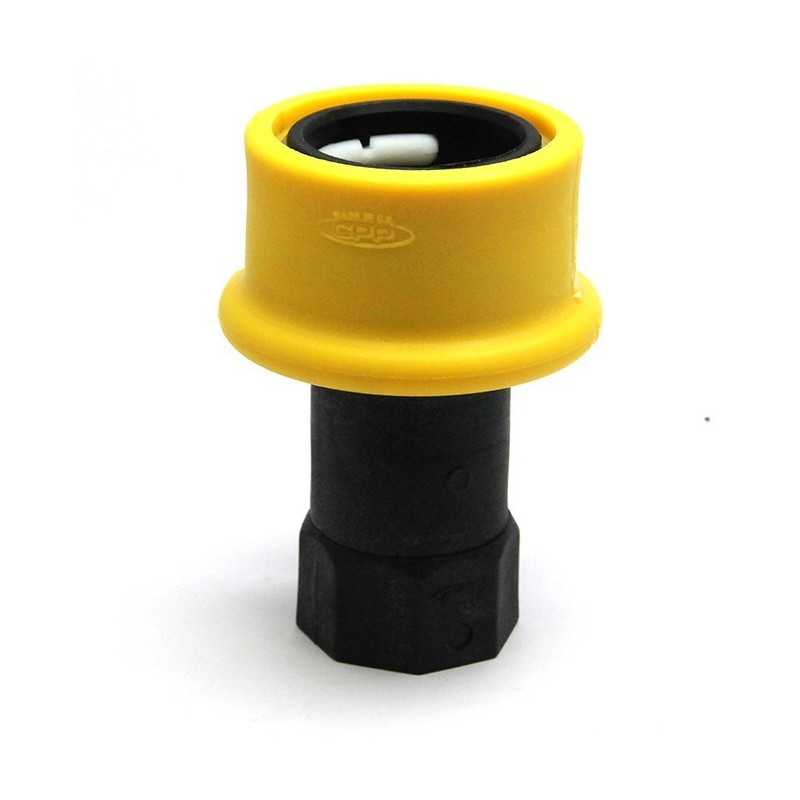

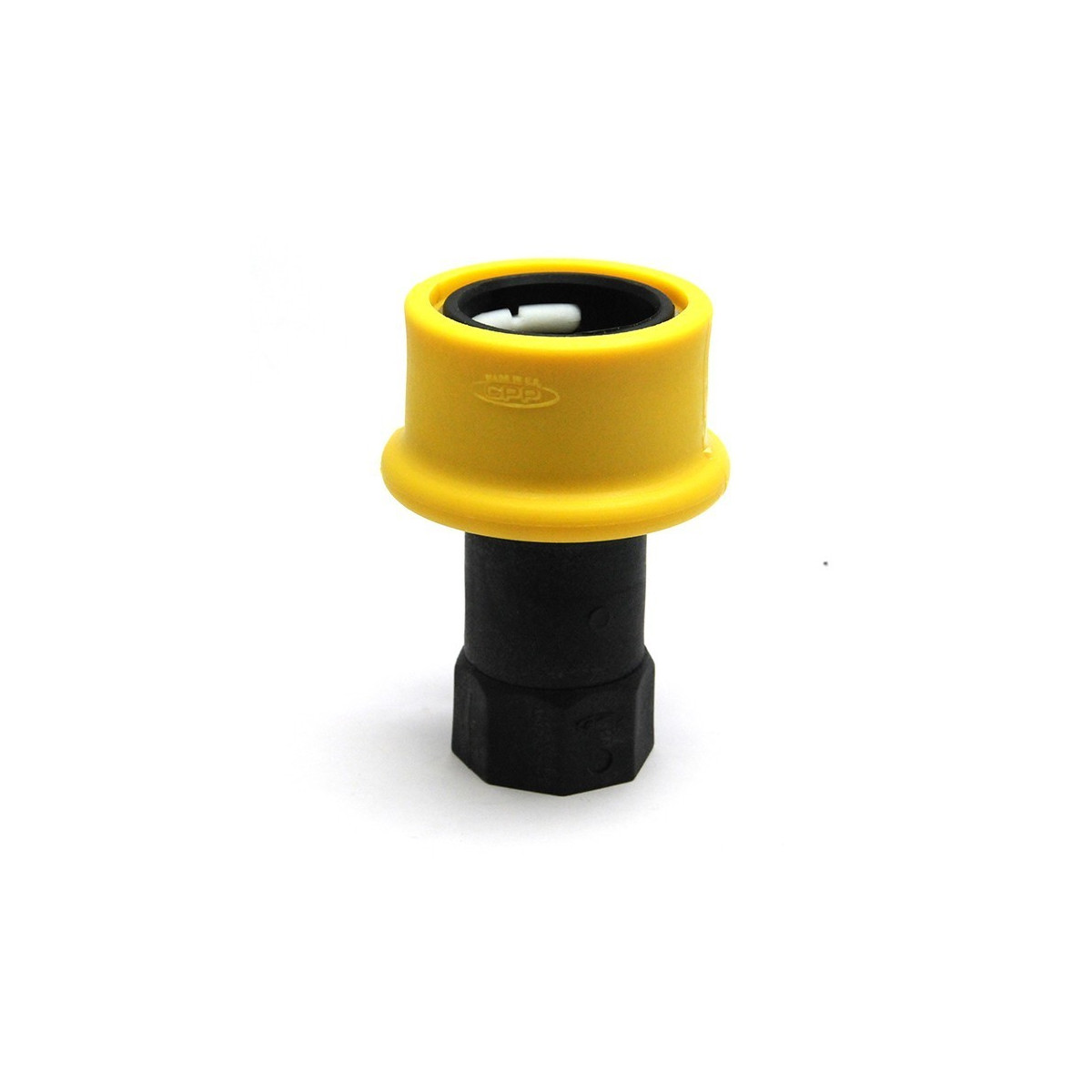

DRY SHUT Female Quick Coupler with 1'' BSP Female Thread

DRY SHUT Female Quick Coupler with 1'' BSP Female Thread (Reference: 100373) - CPP brand offers this high-end quick coupling, designed to meet the strictest professional requirements for liquid transfer. This female coupler integrates DRY SHUT technology, guaranteeing perfect sealing and optimal safety during connection and disconnection operations.

Applications and fields of use

This DRY SHUT female quick coupler excels in numerous activity sectors. The chemical industry adopts it for secure transfer of corrosive, acidic or basic products. Food industry professionals use it to handle food liquids, oils, syrups or cleaning solutions. Gas stations and fuel depots integrate it into their fuel distribution circuits.

Industrial applications also include cooling circuits, high-pressure hydraulic systems, water treatment installations and manufacturing processes requiring quick and sealed connections. Its ability to handle high flow rates makes it a preferred choice for intensive transfer operations.

Technological innovation and materials

Glass fiber reinforced polypropylene constitutes the base material of this coupler, offering exceptional mechanical resistance combined with excellent chemical resistance. This composition allows supporting high pressures while maintaining appreciable lightness during repeated handling.

The integrated Viton seals guarantee perfect sealing against hydrocarbons, solvents and aggressive chemicals. This fluorocarbon elastomer maintains its sealing properties over an extended temperature range, from -4°F to +392°F.

The 1'' BSP female thread (British Standard Pipe) ensures universal compatibility with most standard industrial fittings and equipment. This tapered thread guarantees progressive and secure connection, reducing leak risks and facilitating assembly.

Installation and implementation

Installing this DRY SHUT coupler requires manual screwing onto the corresponding male fitting, respecting the recommended tightening torque to avoid thread damage. Before first use, check the cleanliness of contact surfaces and absence of foreign bodies that could compromise sealing.

Connection with the male fitting is performed by simple insertion until the locking click. Disconnection requires pulling back the locking sleeve while pulling the male fitting. At this moment, internal valves close automatically, avoiding residual flows.

To maintain optimal performance, regularly clean contact surfaces with a solvent suitable for the type of transported liquid. Periodically inspect the condition of seals and locking mechanism. Store the coupler in a dry environment, away from extreme temperatures and direct UV radiation.

Expert advice and optimization

To maximize the lifespan of this DRY SHUT coupler, associate it exclusively with male fittings from the same range or certified compatible ones. This compatibility guarantees optimal functioning of the locking system and preserves seal integrity.

In applications involving abrasive or particle-loaded products, install an upstream filter to preserve the internal valve mechanism. For viscous liquids, slightly preheat the product to improve fluidity and reduce stress on the coupler.

Avoid brutal thermal shocks that could affect differential expansion between the polypropylene body and Viton seals. When using with aggressive chemicals, consult the chemical compatibility chart to verify long-term material resistance.

Complete your installation with protective caps to preserve fitting cleanliness during inactive periods. Consider adding a grounding system for applications involving flammable or conductive liquids.

Technical specifications
