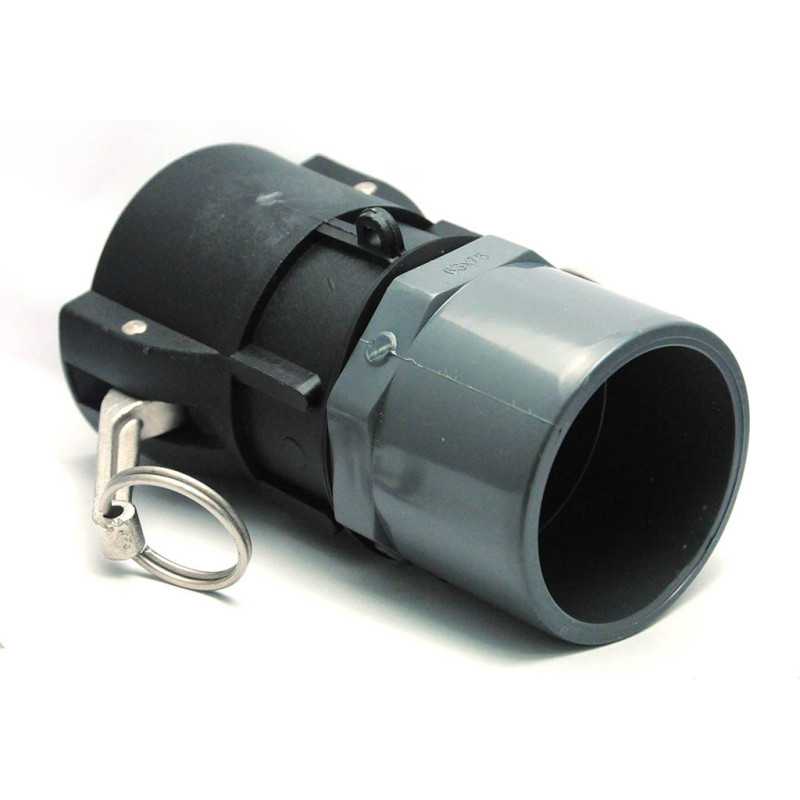

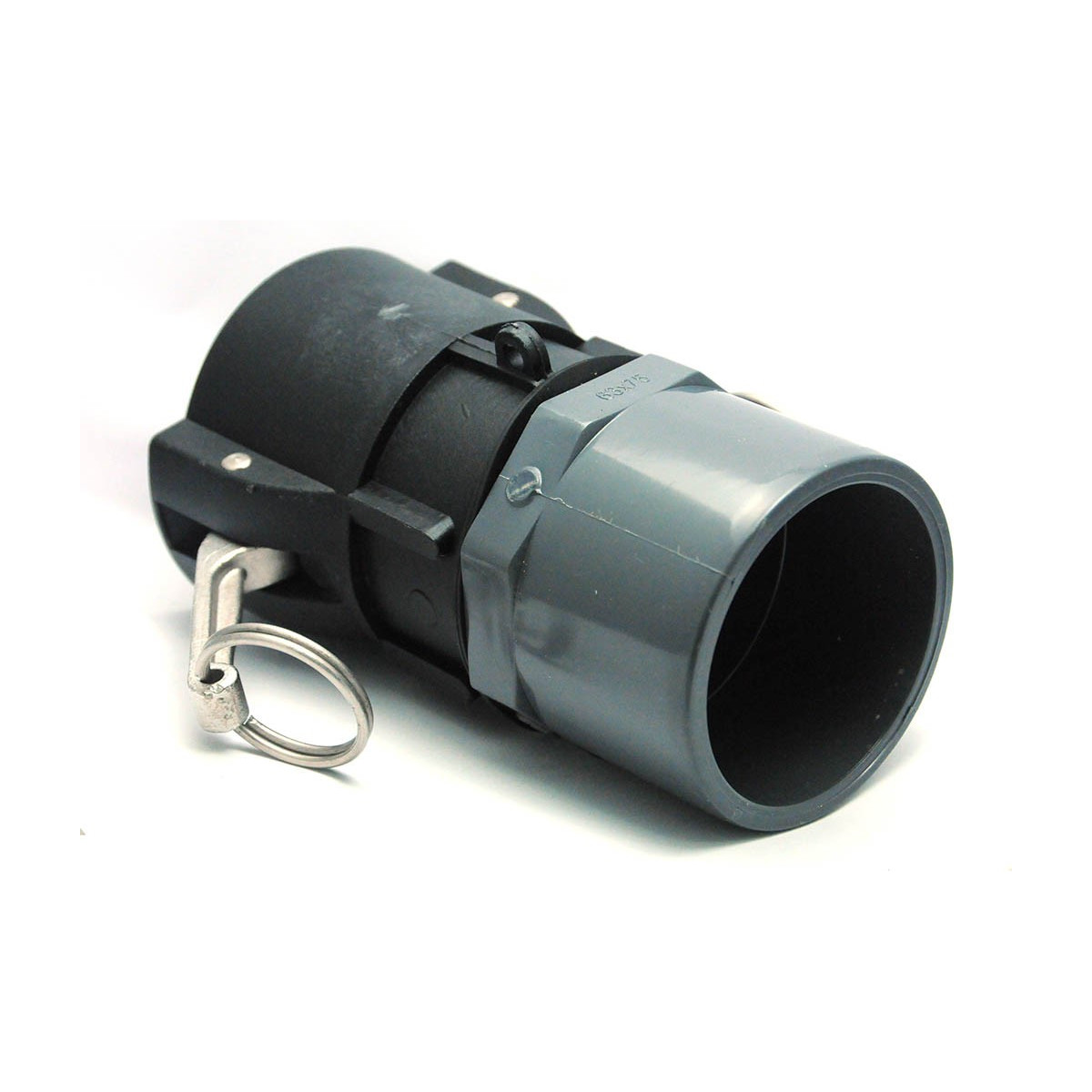

Female camlock fitting 2 inches - PVC female 63/75

Female Camlock Fitting 2 Inches - PVC Female 63/75 (Reference: 100399) represents the professional reference solution for efficiently connecting your 1000-liter IBC tanks to your PVC piping networks. Designed by Multitanks with recognized expertise in industrial storage, this fitting combines the robustness of glass fiber reinforced polypropylene with the practicality of the camlock system. Food contact certified, it meets the strictest requirements for safety and hygiene.

Applications and Concrete Benefits

This female camlock fitting is primarily intended for professionals in agriculture, food industry, chemicals, and individuals equipped with IBC tanks. It allows instant connection of a tank equipped with a 2-inch camlock valve to a PVC piping network of 63 or 75 mm diameter. Typical applications include water transfer for irrigation, liquid food product distribution, effluent evacuation, or supply to treatment systems.

Camlock technology offers decisive advantages: connection in less than 5 seconds without tools, perfect sealing thanks to integrated gaskets, and equally quick disconnection to facilitate maintenance or configuration changes. This operational flexibility translates into considerable time savings and reduced risk of leaks during handling.

Technical Innovation and Material Specifications

The 30% glass fiber reinforced polypropylene gives this fitting exceptional mechanical properties. This innovative composition combines the natural chemical resistance of polypropylene with the rigidity and improved service life provided by glass fibers. The result is a fitting capable of resisting intense mechanical stress while maintaining excellent resistance to aggressive chemicals.

Precise dimensions guarantee perfect compatibility: 2-inch (50.8 mm) female camlock side compliant with international standards, and female PVC side adapted to 63 and 75 mm outer diameter tubes. This dual 63/75 compatibility offers remarkable versatility to adapt to different installation configurations. The smooth interior surface minimizes pressure losses and facilitates optimal fluid flow.

Installation and Implementation

Installing this camlock fitting requires no specialized tools. On the camlock side, connection is made by simple fitting onto the corresponding valve, followed by locking the cams by rotation. This operation guarantees immediate and reliable sealing. On the PVC side, connection is made by gluing with appropriate PVC adhesive or by screwing according to the type of connection chosen for your installation.

To optimize service life, it is recommended to periodically check the condition of the sealing gaskets and regularly clean the contact surfaces. Maintenance is limited to rinsing with clean water or cleaning with mild detergents. Polypropylene perfectly resists common cleaning products and temperature variations encountered in normal use.

Expert Tips and Product Synergies

To maximize the efficiency of your installation, combine this fitting with Multitanks camlock valves and complementary adapters from our range. When using with chemicals, always verify the compatibility of polypropylene with the transported fluid. For food applications, follow recommended cleaning and disinfection procedures.

A common error is forcing the camlock connection: this should be done naturally without excessive force. In case of resistance, check alignment and cleanliness of surfaces. For outdoor installations, protect unused camlock connections with protective caps to avoid debris accumulation. During winter periods, completely drain fittings to avoid damage due to freezing.

Technical Characteristics
