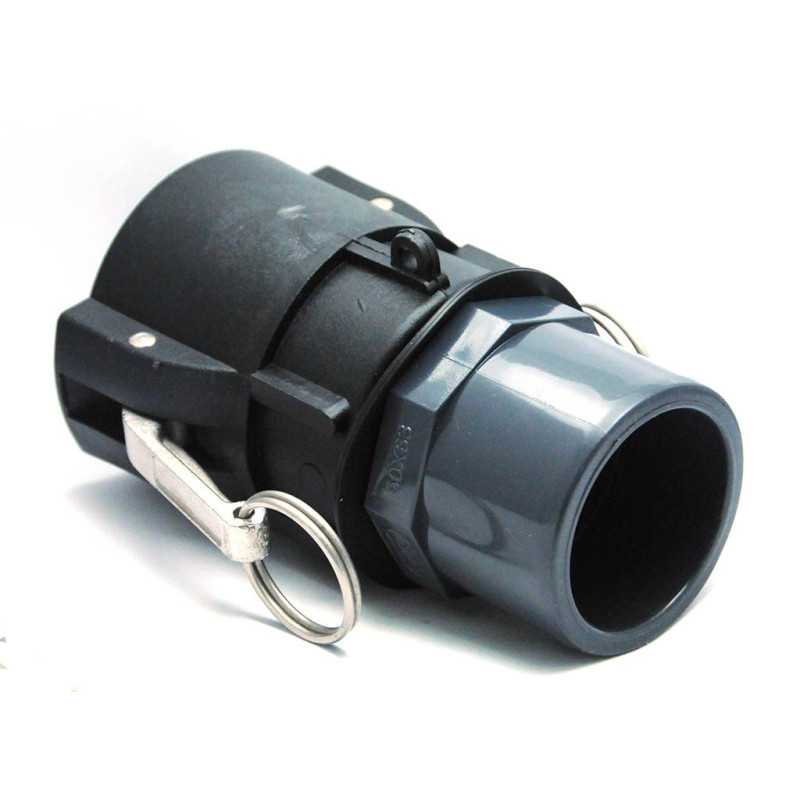

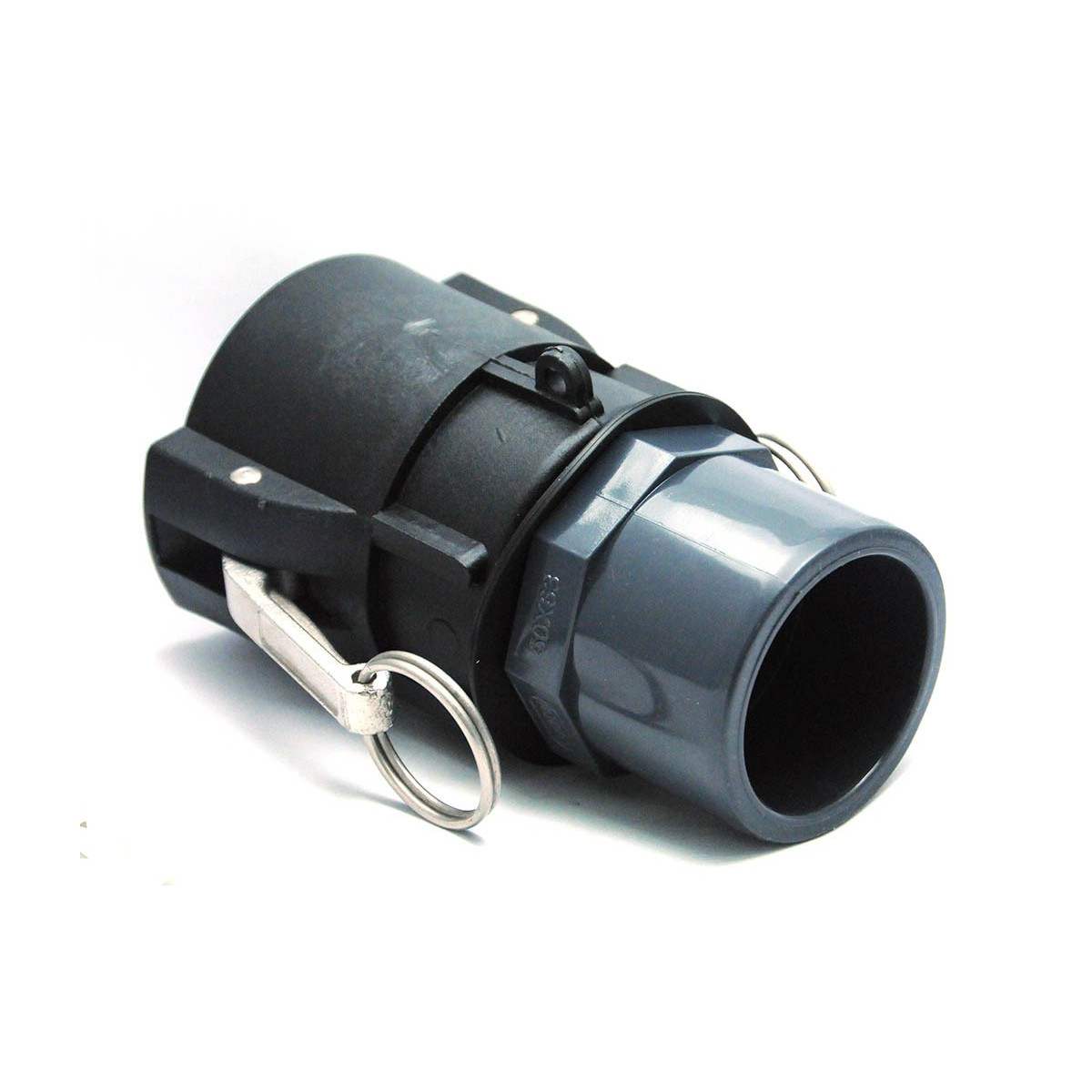

2 inch female camlock fitting - 50/63 female PVC

Discover the 2 Inch Female Camlock Fitting with 50/63 PVC Outlet (Reference: 100398), a professional connection solution designed by Multitanks to meet the most demanding requirements for liquid transfer. This high-performance cam coupling combines the reliability of the camlock system with the versatility of a PVC outlet compatible with 50 and 63 mm diameters.

Professional applications and concrete advantages

This female camlock fitting finds its place in numerous sectors requiring secure and fast liquid transfers. Food processing industries adopt it for connecting 1000L IBC tanks to distribution circuits, while farms use it for their irrigation systems and liquid fertilizer transfer.

The advantages of the camlock system are particularly appreciated: tool-free installation in seconds, secure locking with folding cams, and equally quick disassembly. The 50/63 female PVC outlet offers extensive compatibility with existing piping, avoiding costly adaptations and prolonged downtime.

Material innovation: high-performance fiber-reinforced polypropylene

Manufacturing in polypropylene loaded with 30% glass fiber gives this fitting exceptional mechanical properties. This composition offers high rigidity and excellent durability, ensuring superior resistance to mechanical stress and thermal variations.

The food contact treatment certifies the use of this fitting in sensitive applications: food industries, pharmaceuticals, or drinking water transfer. Its remarkable chemical resistance allows use with a wide range of liquids: mild acids, bases, solvents, light hydrocarbons, saline solutions.

The lightness of polypropylene, combined with glass fiber reinforcement, creates an ideal compromise between ease of handling and structural robustness, reducing operator fatigue during repeated handling.

Optimized installation and use

Installation of this 2 inch female camlock fitting follows a simple and secure procedure. After checking the cleanliness of contact surfaces, position the fitting on the corresponding male element by perfectly aligning the profiles. The cams then fold manually to ensure mechanical locking.

The 50/63 female PVC outlet accepts rigid PVC tubes with external diameter of 50 mm or 63 mm with appropriate sealing gaskets. For optimal sealing, check the condition of O-rings before each assembly and replace them at the first signs of wear.

Maintenance is limited to regular cleaning with clear water and visual inspection of moving parts. Polypropylene perfectly resists usual cleaning products, facilitating preventive maintenance operations.

Technical specifications
