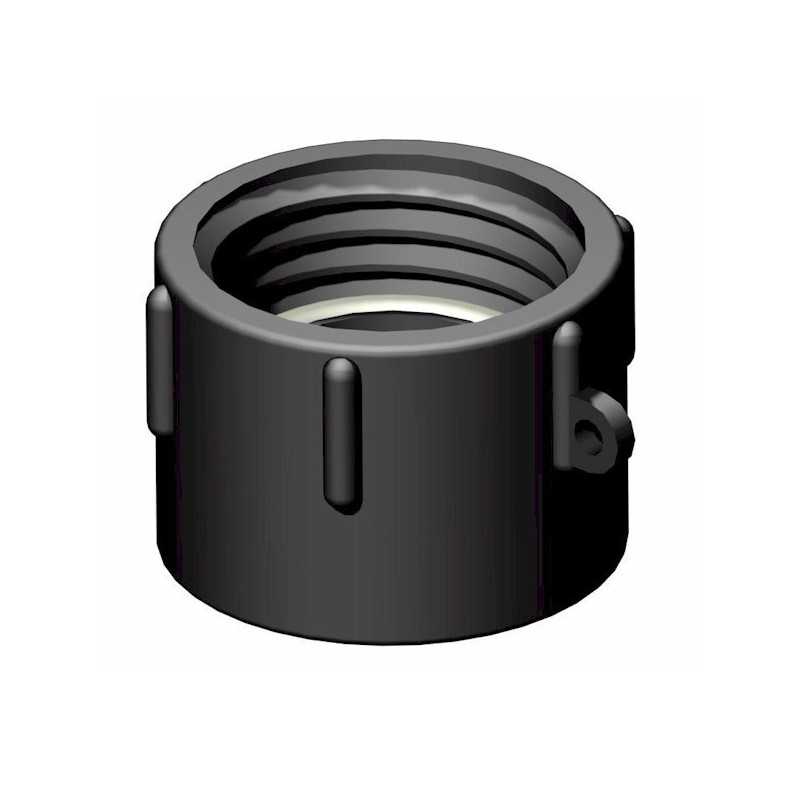

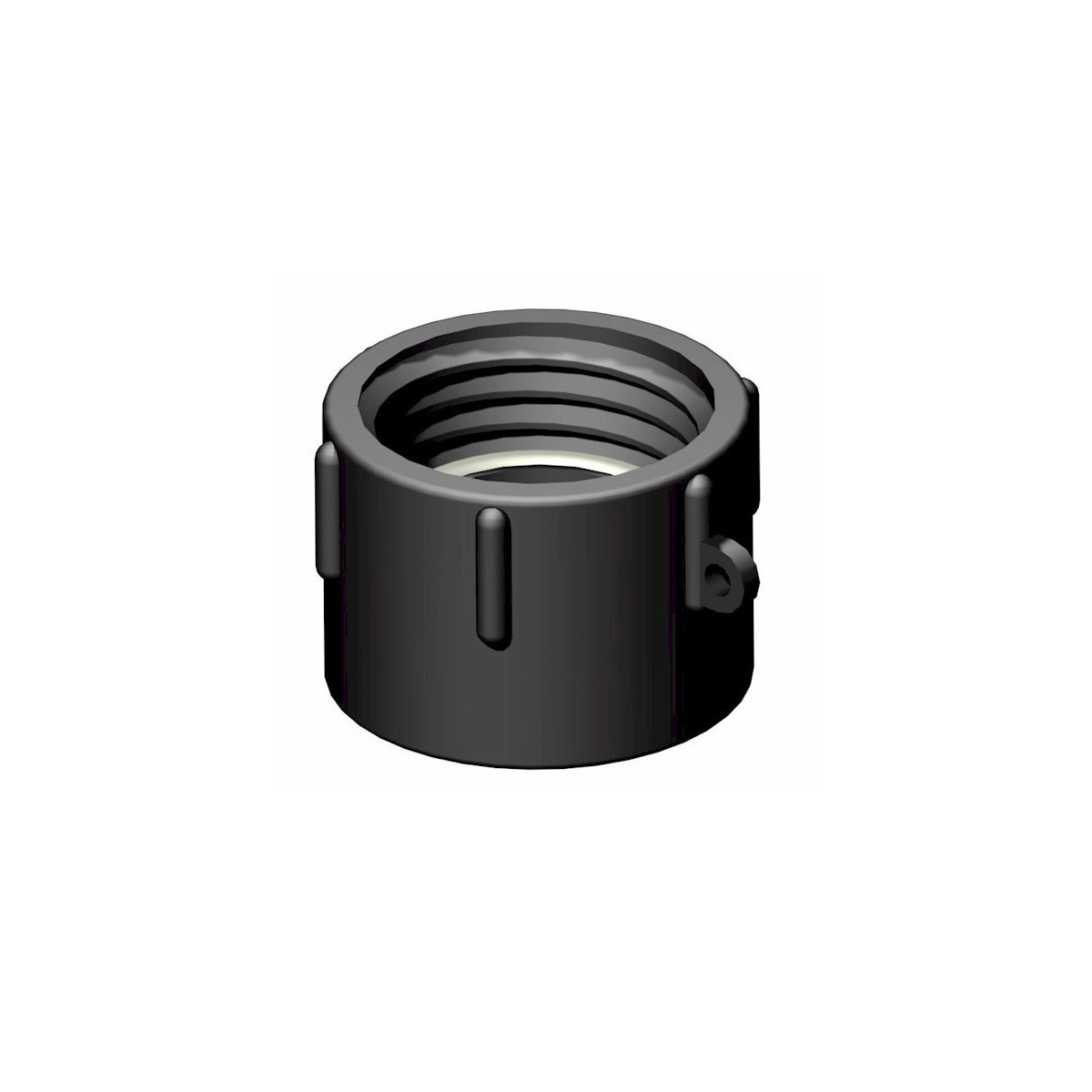

IBC S60x6 to 1''1/2 Female Fitting | Polypropylene & Fiberglass

IBC S60x6 to 1''1/2 Female Polypropylene & Fiberglass Fitting (Reference: 100142) - Optimize your water reserve operation with this professional adapter for 1000-liter tanks, a masterpiece for anyone looking to break free from specific industrial threads. This CPP brand fitting ensures immediate conversion of your S60x6 valve outlet to a standard 1''1/2 BSP female plumbing connection, certified for intensive professional use.

Professional benefits and use cases

This adapter revolutionizes the hydraulic management of your IBC installations by enabling interconnection of high-flow distribution networks or robust hydraulic accessories directly to your IBCs. In agricultural contexts, it becomes the ideal interface for coupling a sprayer filling installation or a multi-way distribution manifold.

For industrial professionals, this fitting facilitates rapid transfer between multiple storage units by enabling connection of 40mm or 50mm screw fittings. Its inert chemical composition makes it perfectly compatible with rainwater, liquid fertilizers, or common industrial fluids, considerably expanding the application range of your IBC tanks.

Technical specifications and material innovation

This transition fitting has been molded to endure intensive service conditions thanks to high-level technical specifications. Its reinforced structure in fiberglass-filled polypropylene offers perfect dimensional stability, far superior to ordinary plastics.

Certified for a maximum pressure of 8 bar, it guarantees total safety during gravity or pump transfers. Its 56mm passage diameter preserves hydraulic efficiency and limits turbulence at the valve outlet, thus optimizing transfer flow rates.

The chosen technical composite is stabilized to face harsh outdoor environments, fearing neither solar UV rays nor winter frosts that weaken standard materials.

Simplified installation and use

The design of this adapter prioritizes rapid implementation: installation is easy and can be done without heavy tools on standard S60x6 valves. Simply screw the adapter onto your IBC valve's S60x6 thread, then connect your 1''1/2 female accessory to the other end.

With a featherweight of only 50 grams, it exerts no harmful offset stress on the tank's original thread. The 1''1/2 female threading allows clean and deep thread engagement, ensuring hermetic connection essential for protecting your fluids.

Maintenance is limited to periodic cleaning with clear water to preserve thread condition. During winter storage, the fitting can remain in place without risk of frost damage.

Tips and synergies with the Multitanks ecosystem

To maximize your installation efficiency, combine this adapter with 1''1/2 ball valves available at Multitanks for precise flow control. This combination is particularly recommended for liquid fertilizer or plant protection product dosing applications.

Expert advice: during installation, apply professional quality PTFE tape to the threads to guarantee perfect sealing. Avoid excessive tightening that could damage the threads, as the fitting's reinforced composition allows optimal sealing without excessive mechanical stress.

In multi-tank configurations, this adapter becomes a key element for creating centralized distribution networks, enabling simultaneous management of multiple reservoirs from a single control point. Remember to check compatibility with your other hydraulic components before installation.

Technical characteristics
