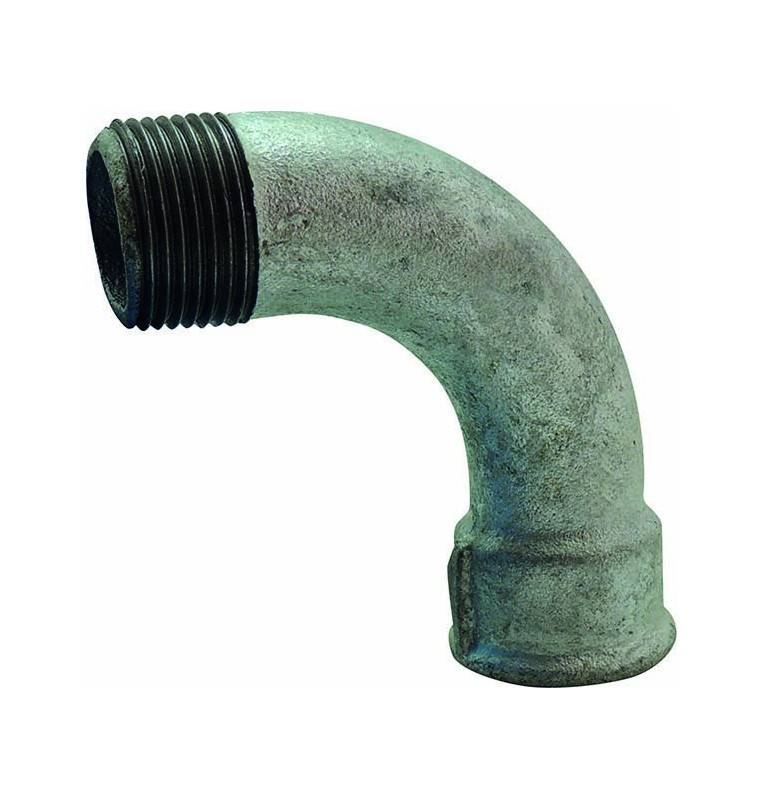

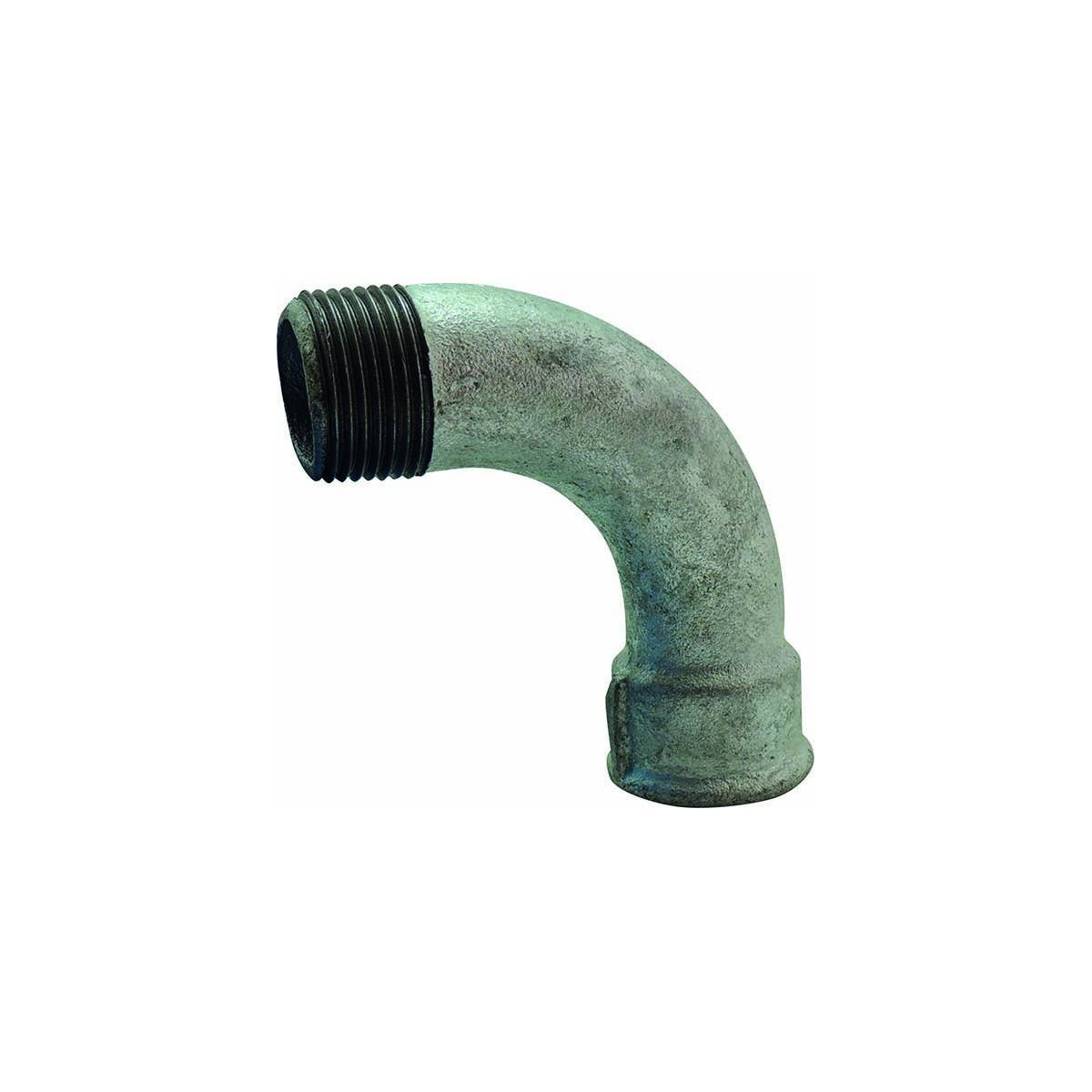

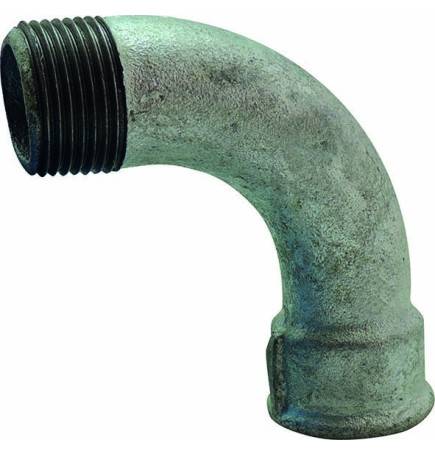

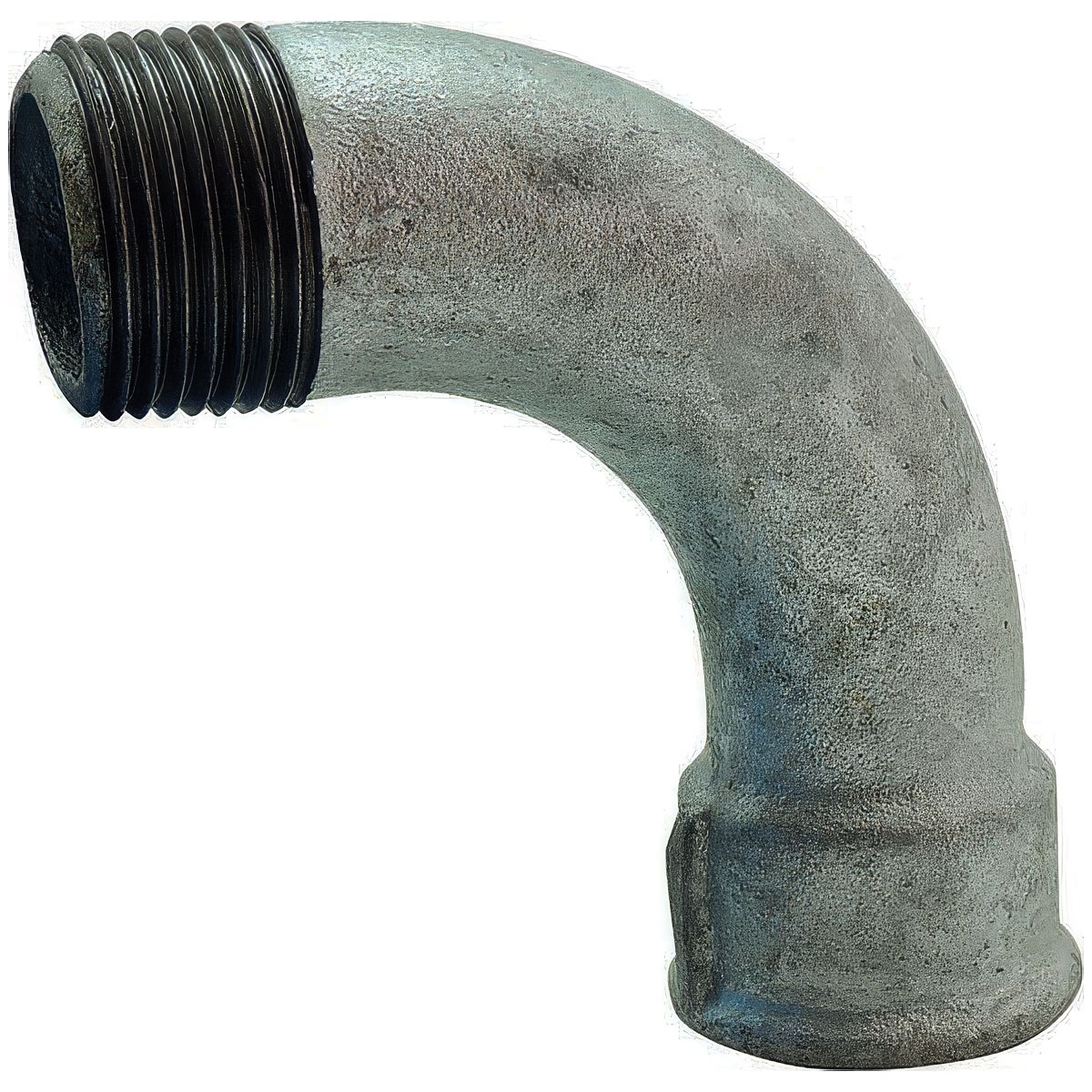

90° Elbow with Large Radius Galvanized Mallet Cast Iron Male Female| EN 10242 connection

The 90° bend with a large radius: a durable connection solution

Designed for performance and durability, the 90° large radius malleable iron elbow provides a reliable connection solution for your installations. This galvanized male/female fitting is designed to accommodate a wide range of needs, from traditional plumbing systems to more demanding industrial applications. Its careful workmanship, in accordance with the strictest standards, ensures increased resistance and longevity, even under intensive conditions of use. The wide angle allows for a smoother curvature for the flow of fluids or gases, reducing pressure drops and turbulence in the piping.

High-precision manufacturing in accordance with European standards

The design of this elbow strictly complies with the EN 10242 and ISO 49 standards, guaranteeing uncompromising quality and reliability. Made from malleable cast iron EN-GJMB-350-10 according to the EN 1562 standard, this fitting benefits from a material composition rigorously selected for its robustness and resilience. Each part is subject to strict quality control and 100% tested for watertightness. This rigor in the production process ensures an impeccable finished product, ready to be installed with confidence.

The EN 10242 standard: a guarantee of quality and safety

 EN 10242 is the pillar of quality for malleable cast iron fittings. It establishes manufacturing, design, threading, and performance requirements. For our fittings, it ensures that the thread, whether tapered male (R) or cylindrical female (Rp), is fully compliant with ISO 7-1 (BSPT), ensuring universal compatibility and optimal sealing once installed with the corresponding tubes. In addition, the loose nuts of the unions comply with the ISO 228-1 (BSPP) standard, which is specific to gas fittings. Compliance with this European standard is an assurance that the product you install is reliable, durable and safe.

Galvanized protection for increased longevity

The galvanized finish of this 90° elbow is a major plus. Applied with a minimum thickness of 70 μm, this protective coating is an effective barrier against corrosion and rust. This zinc layer significantly extends the life of the fitting, making it ideally suited for environments exposed to moisture or corrosive agents. It is a sustainable solution for installations that require minimal maintenance and long-term strength, whether buried or exposed to the elements.

Multiple applications and uses: versatility at the service of professionals

The large radius elbow made of malleable cast iron is a versatile part that finds its place in many areas of application:

• Plumbing and HVAC (Heating, Ventilation, Air Conditioning): For drinking water, central heating, and air conditioning systems, it allows for reliable changes of direction.

• Gas networks: Its waterproof design and compliance with standards make it a safe choice for natural gas or propane installations.

• Industry: In factories, it is used for compressed air lines, oil or non-corrosive product circuits.

• Agriculture: For irrigation systems and water supply networks.

• DIY and decoration: Its raw and industrial appearance is sought after for the creation of furniture, shelves or "vintage" style lighting.
