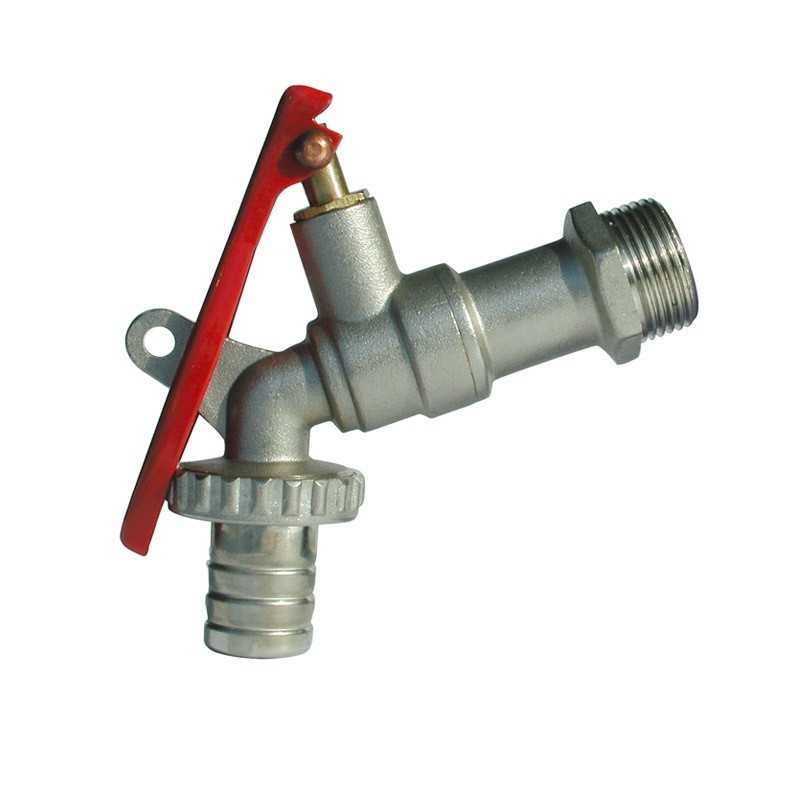

Lockable Ball Valve

Ezfitt Lockable Ball Valve (Reference: 247-34) represents the ideal solution for securing and controlling water access in your outdoor and industrial installations. This professional valve combines the robustness of chrome-plated OT58 brass with padlock security functionality, meeting the strictest requirements of both private and professional users.

Specific Applications and Use Cases

This lockable valve finds its place in numerous secure applications. For public gardens and green spaces, it prevents unauthorized use of water points while allowing controlled access for maintenance. Condominiums and residences adopt it to secure outdoor taps against vandalism and fraudulent water collection.

In the industrial and agricultural sector, this valve controls fluid access on IBC tanks, irrigation networks and washing installations. Public facilities (campsites, schools, sports centers) find a solution to control water consumption while maintaining access for maintenance teams. The standard 3/4 inch thread facilitates integration on most existing installations.

Technical Construction and Materials

The ball valve design guarantees perfect sealing thanks to double O-ring technology. The chrome-plated OT58 forged brass body, ball and sleeve offer exceptional resistance to corrosion and wear. This composition ensures remarkable longevity even in permanently humid environments.

The PTFE seats and NBR N240S O-rings ensure durable sealing up to 80°C. The chrome-plated bolted shaft resists repeated mechanical stress from padlocking. The 25mm barbed outlet allows direct connection of standard garden hoses without additional fittings. The full bore design prevents pressure loss while facilitating internal cleaning.

Installation and Implementation

Installation is carried out by screwing onto 3/4 inch male thread ISO228 gas thread with vise and flat wrench. Apply Teflon tape or sealing paste on the thread to ensure sealing. Respect the tightening torque to avoid deformation of the brass body. The handle position clearly indicates the open state (parallel to the valve) or closed (perpendicular).

For secure padlocking, use a padlock with shackle diameter compatible with the flat handle eyelets. In closed padlocked position, water access is completely blocked. Preventive maintenance consists of regular cleaning of threads and light lubrication of the shaft. In case of freezing, completely drain the valve to avoid ruptures.

Expert Tips and Usage Optimization

Combine this valve with a pressure reducer if your installation exceeds 16 bars to preserve sealing. Complete your installation with Guillemin or Camlock fittings for secure quick connection/disconnection. The ACS approval authorizes its use on food circuits, ideal for fountains and water troughs.

For temporary installations (construction sites, events), this valve prevents costly theft and damage. In agriculture and livestock, it secures access to treatment tanks while allowing precise flow control. Avoid direct exposure to intense UV which could alter seals in the long term. The batch marking on the handle facilitates traceability and maintenance tracking.

Technical Specifications
