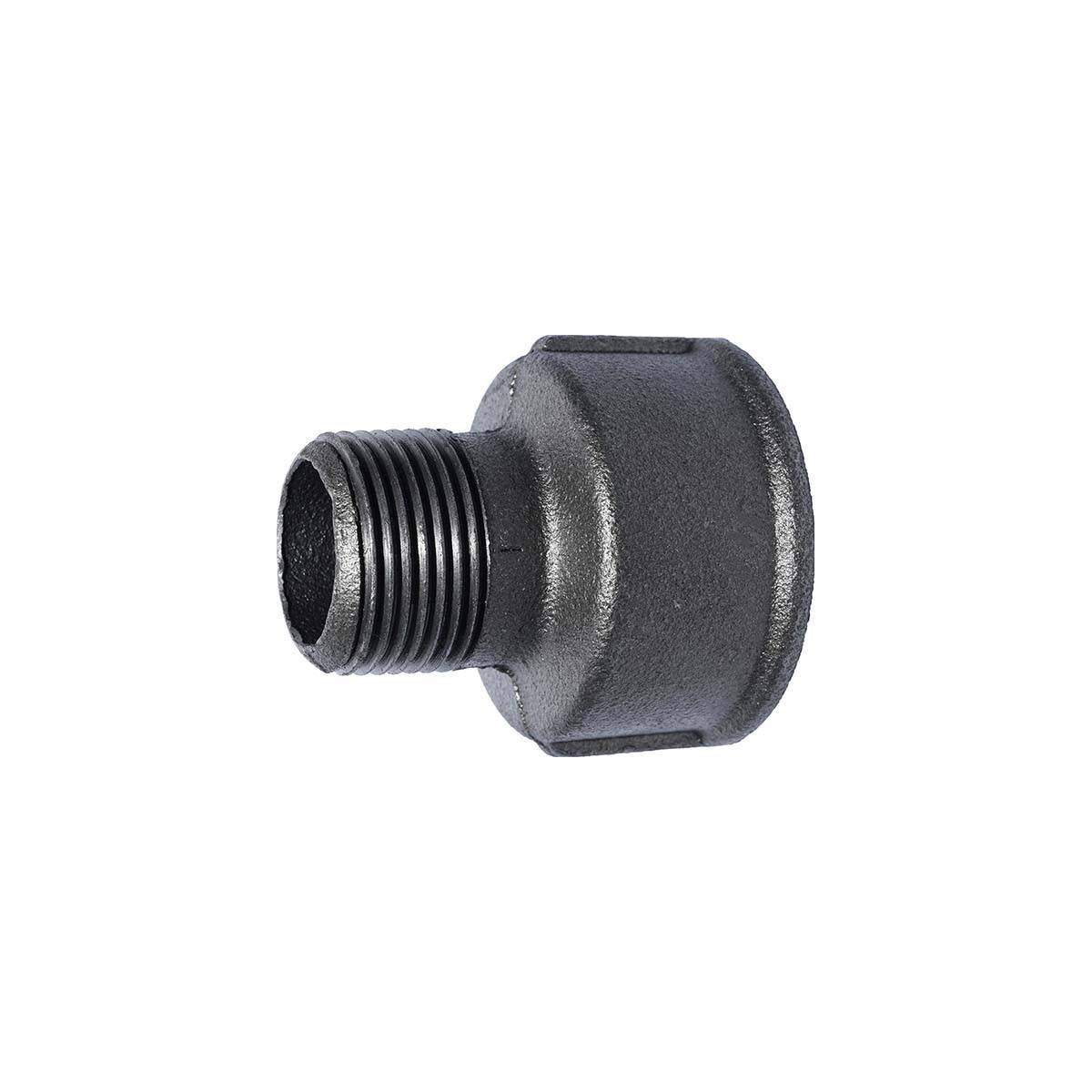

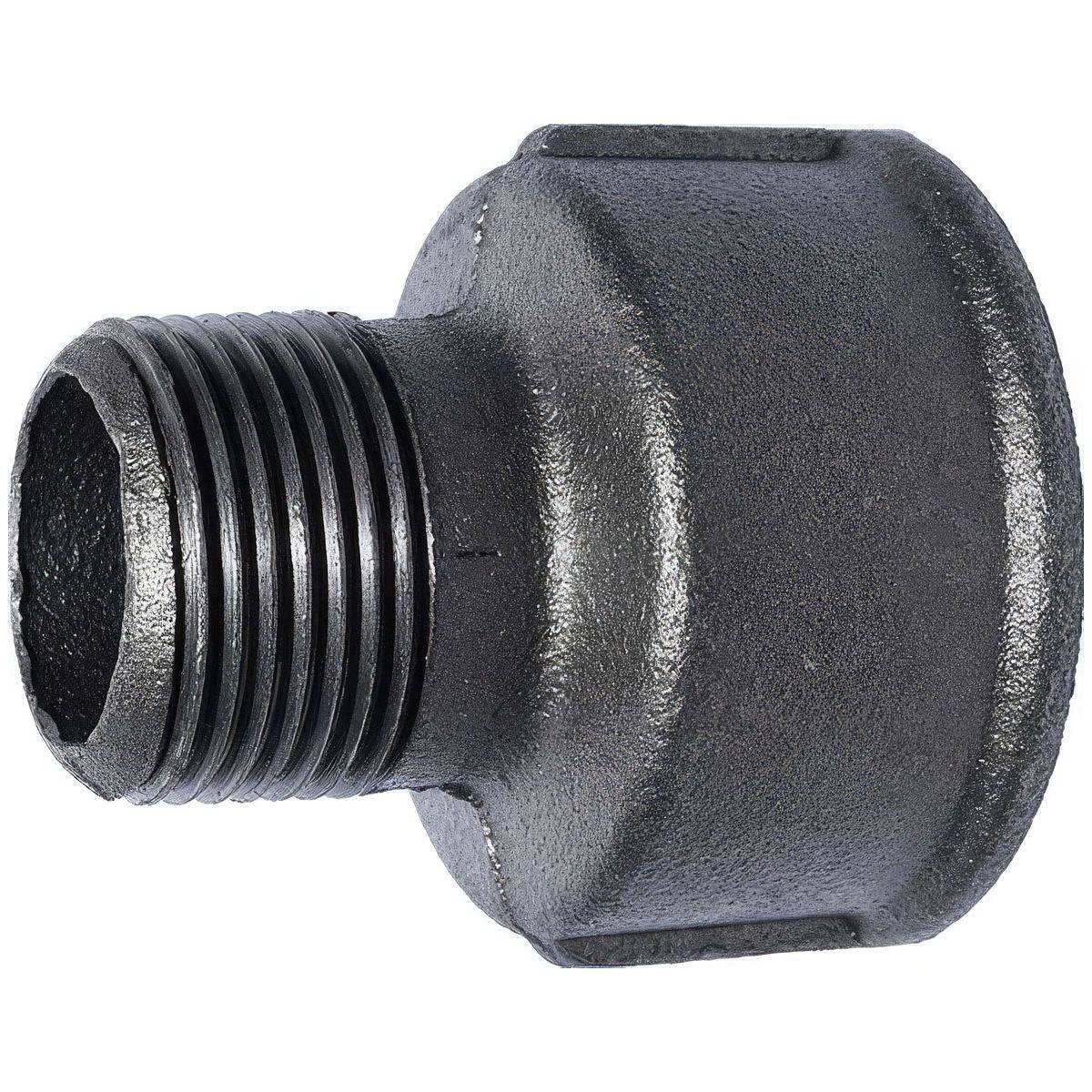

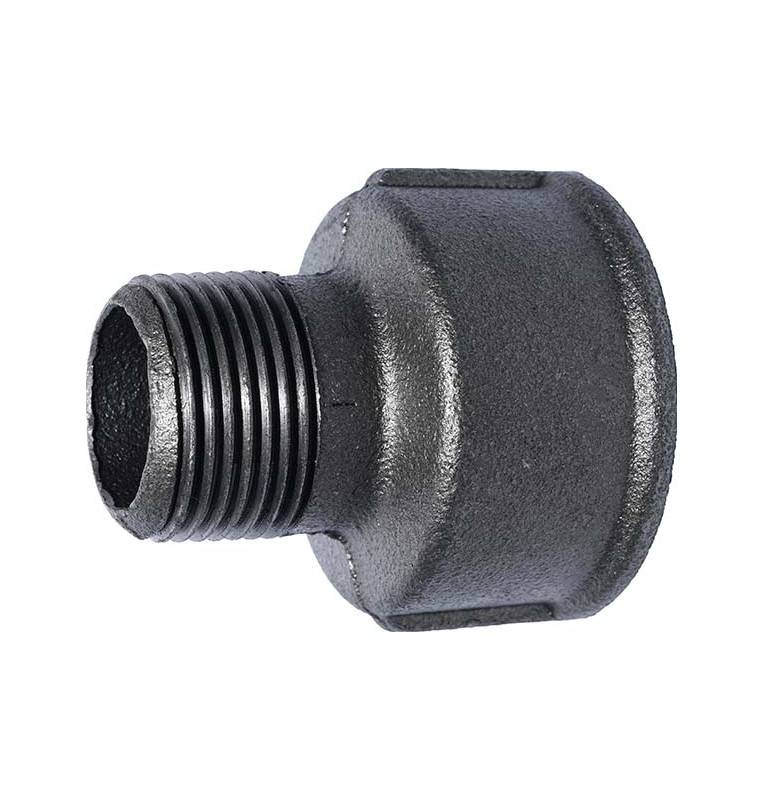

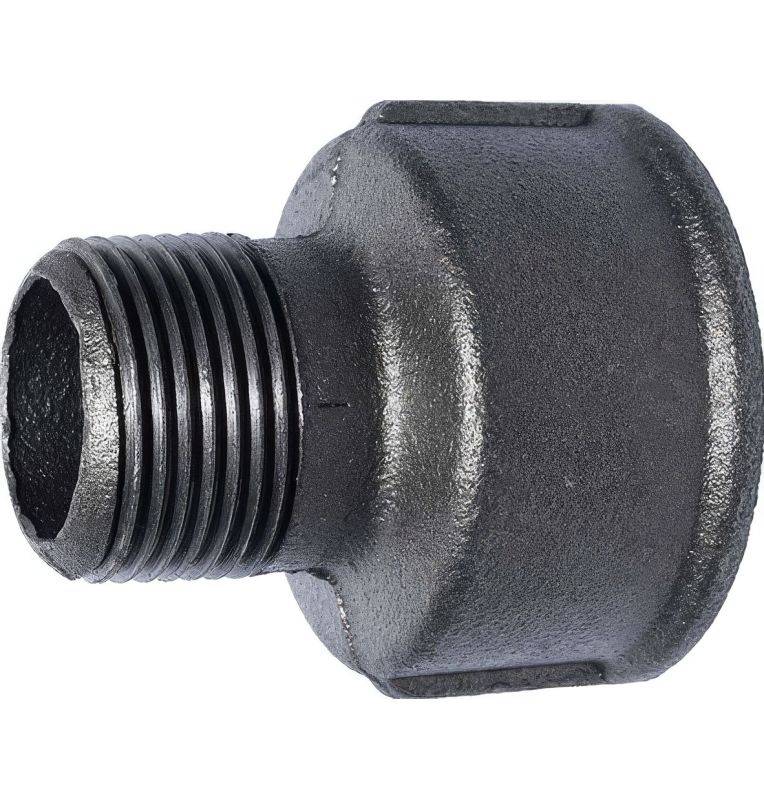

Male-to-Female Reduction in Malleable Cast Iron with Black Core

Malleable Cast Iron Malleable Iron Reduction with Black Heart

The male-female reduction in malleable cast iron with a black core is an essential element in the management and adaptation of piping networks. Specifically designed to connect a larger diameter pipe or fitting (female side) to a smaller diameter fitting or pipe (male side), this part ensures a reliable and leak-proof gauge transition. This versatile fitting is a must-have for installers and technicians looking to optimize the performance of their fluid systems. Its malleable cast iron design with a black core gives it a recognized mechanical robustness, ensuring the durability of the installation under various pressure and temperature constraints.

Fluid & System Adaptation Solutions

This reduction fitting fits perfectly into the distribution of various fluids, whether water, gas, steam, or any other non-corrosive liquid and gas. Its ability to operate in these diverse environments makes it a must-have in the plumbing and fluid engineering industries. It is also a key part of HVAC (Heating, Ventilation and Air Conditioning) systems, where precise diameter matching is crucial for proper flow and maintaining energy efficiency. In addition, the black finish and the raw side of the malleable cast iron naturally destine it for the creation of industrial furniture (shelves, lamps, tables), where it becomes a vintage and solid design element, bringing a highly sought-after loft aesthetic.

Commitment to Quality and Compliance with Standards

The design and manufacture of this reduction are carried out with a constant concern for compliance with international standards. The fittings are produced and controlled in strict accordance with EN 10242 and ISO 49 standards, guaranteeing quality and interchangeability recognized in the professional market. The base material is EN-GJMB-350-10 malleable cast iron, an alloy renowned for its resilience and reliability, as specified by EN 1562. This choice of material ensures that the fitting can withstand the mechanical stresses of a pressurized network, without compromising the safety and lifespan of the installation.

Optimized Sealing Design and Anti-Corrosion Protection

The reliability of a reduction is based on the quality of its tightness and its resistance to external aggressions.

• This fitting features a male/female configuration, with a tapered male thread (R) and a cylindrical female thread (Rp), both of which comply with ISO 7-1 (BSPT). This combination is essential to ensure a tight connection: the male tapered thread fits into the female cylindrical thread of another fitting or pipe, allowing for effective compression and superior sealing.

• To ensure maximum durability , the fittings have an applied black finish with a minimum thickness of at least 70μm (micrometers). This protective layer against corrosion is fundamental to extend the useful life of the fitting in wet or industrial environments.

• As part of the quality control, the entire production is subjected to a 100% leak test. This rigorous protocol ensures that each part delivered is free of defects and ready to be installed without the risk of leakage.

Practical Tips for Installation and Performance

To fully exploit the performance of this male-to-female reduction, a correct installation is essential.

• Ensure the Management: The reduction is of the Female > Male type. The female side, which is wider, should connect to the male thread with a larger diameter, and the male side, which is smaller, should connect to the female thread with a smaller diameter.

• Use of sealants: It is highly recommended to use a suitable sealant (PTFE tape for threads or specific joint paste) on the tapered male thread to ensure a perfect seal when tightening.

• Balanced Clamping: The clamping must be firm and precise, without excessive force. Over-tightening can damage threads or cause stress in the cast iron, while under-tightening can compromise sealing.

• Cleaning the Fitting: Before assembly, check and clean the threads of the reducer and adjacent parts to remove any dirt or foreign matter that could interfere with the seal.

• Decorative Application: For industrial furniture, the raw black appearance can be left as it is or be enhanced by a protective wax that will maintain the finish and protect it from surface wear.

Detailed technical specifications

The table below provides a summary of the technical specifications of this reduction:
