Heating Tape Kit Kuhlmann 100W/m | High Power 200°C Heat Tracing

The 100W/m Kuhlmann Heating Tape Kit: Controlled Power for 200°C

The Heating Tape Kit Kuhlmann 0-200°C 100W/m is the reference solution for professionals requiring a higher heat output in the field of electrical tracing. This product is specifically designed for critical temperature maintenance applications where the temperature delta is large, or where heat losses are higher. It is ideal for heating industrial pipes, large tanks, complex valves or other process equipment that requires extremely robust frost protection or the maintenance of high-viscosity fluids. Thanks to its linear power of 100 Watts per meter, this tape guarantees a rapid temperature rise and effective control up to 200 degrees Celsius.

Robust Industrial Design and Key Specifications

This kit has been developed for durability and performance in demanding environments. The high power of 100 W/m is evenly distributed to avoid hot spots and ensure system safety. The silicone rubber outer sheath offers excellent mechanical and thermal resistance, protecting the heating element from external aggressions. In addition, the built-in copper braiding acts as a mechanical protection and facilitates grounding, increasing the electrical safety of the device. This level of protection is confirmed by the IP44 moisture resistance rating, ensuring that the tape is protected against splashing water and solid bodies.

The 100 W/m Difference: When Should You Double the Power?

Going from 50 W/m to 100 W/m is not trivial; This meets specific needs where standard power would be insufficient. This high-performance heating cable is often indispensable in the following situations:

• Large Diameter Piping : Pipes with a larger surface area require more energy to compensate for losses.

• High Viscosity Fluids : To maintain the fluidity of bitumen, waxes, or certain resins, a power of 100 W/m ensures sufficient heating.

• Very cold climate zones : Where ambient temperatures are extremely low, the 100 W/m tape provides foolproof frost protection.

• Need for Rapid Temperature Rise : If heating time is a critical factor in the industrial process.

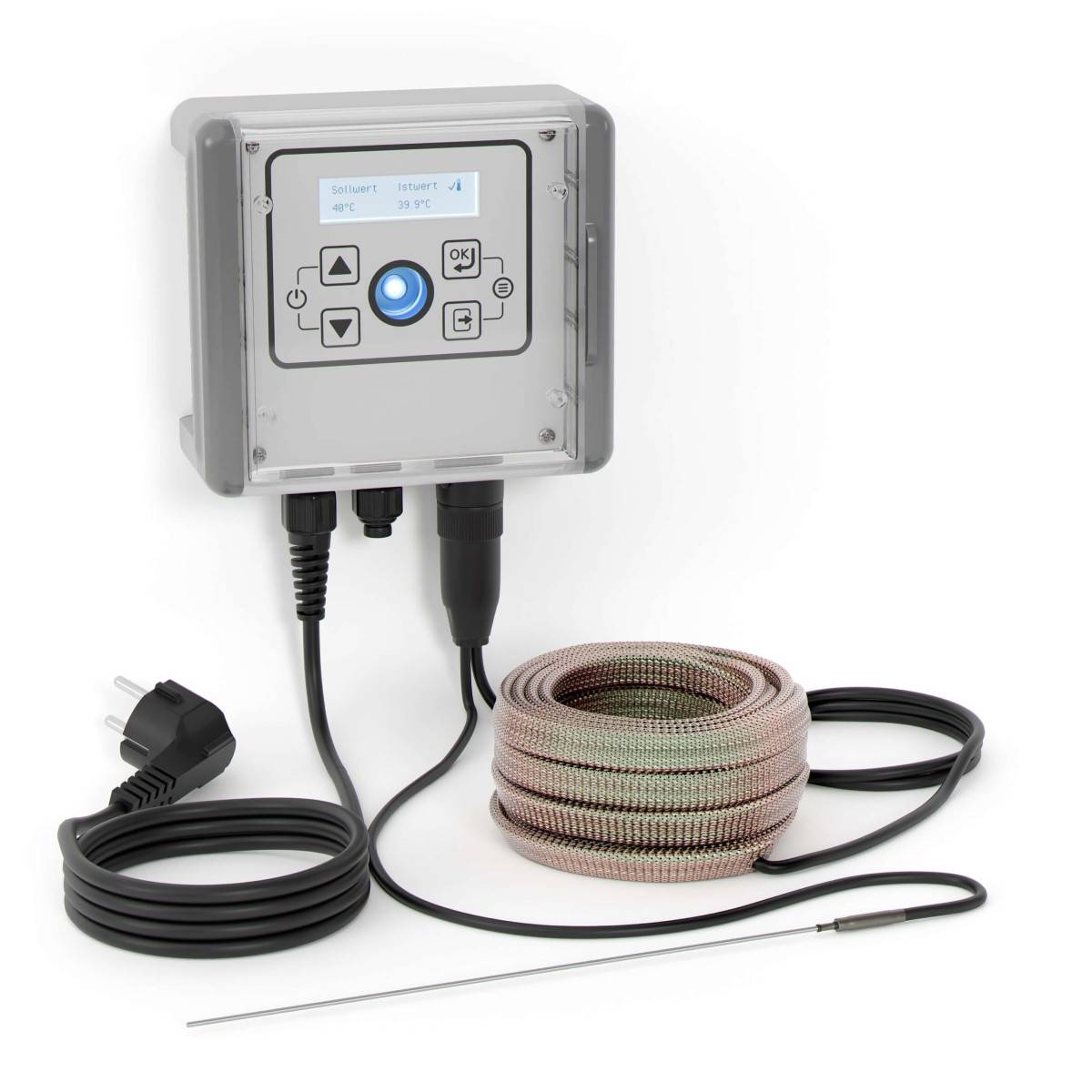

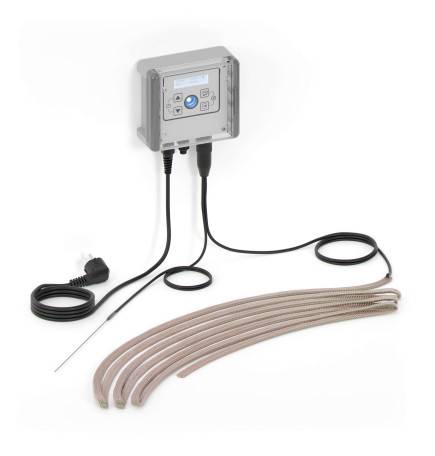

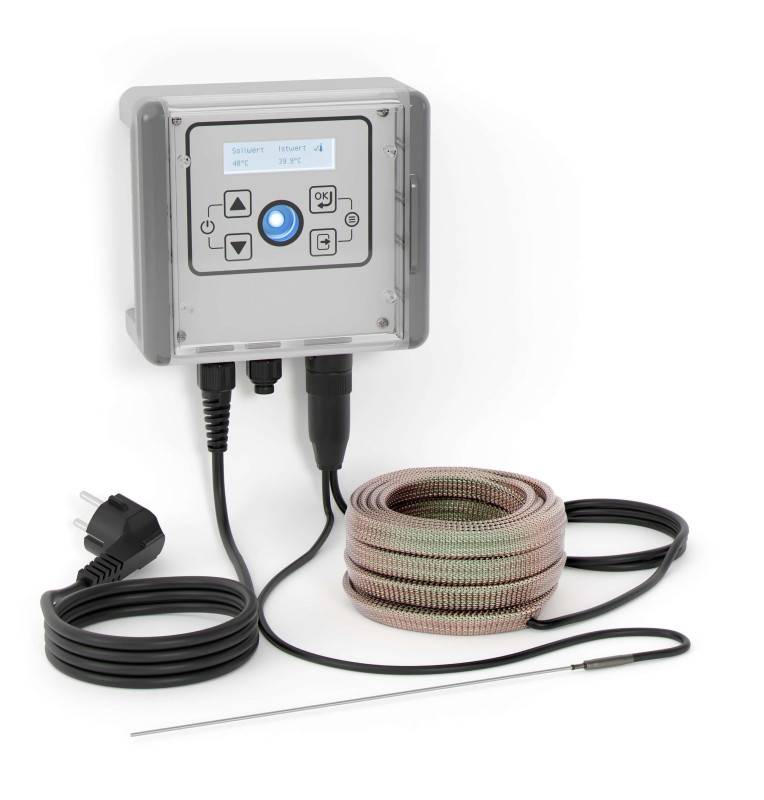

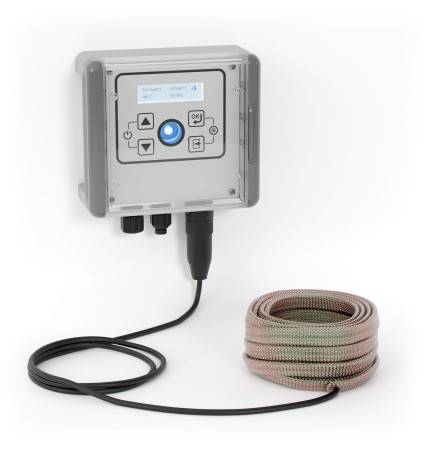

This kit is supplied complete, including heating tape, 230V 50Hz power connectors and the necessary fixing accessories, for immediate implementation in accordance with industrial requirements.

Optimized Applications and Usage Tips

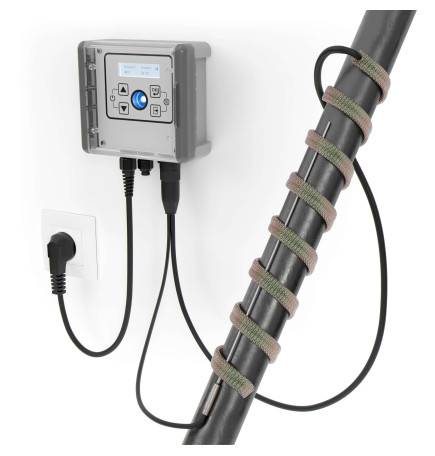

This 200°C heat tracing kit is useful in all sectors where the thermal control of fluids is vital. The ability to work up to 200°C significantly expands the areas of application, especially in petrochemicals, fine chemicals and the food industry for fat or chocolate lines.

To obtain the best performance from this industrial heating tape, it is strongly recommended to proceed as follows:

• Braiding Securement : The copper braiding must be properly grounded to ensure maximum electrical safety, in accordance with current safety standards.

• Post-Installation Insulation : After attaching the tape, it is imperative to apply quality thermal insulation suitable for high temperature (mineral wool or high-density foam insulation). Insulation is the key factor in minimising heat loss and allowing the heating cable to effectively reach 200°C.

• Thermal Regulation : The addition of a compatible external thermostat is recommended to optimize power consumption and maintain temperature accurately, thus avoiding unnecessary overheating.

Detailed technical specifications

This table summarizes the precise specifications of the 100 W/m Kuhlmann Kit:

These specifications ensure a reliable and powerful heating system that is suitable for industrial plants requiring a high heat capacity.

Safety and Reliability of the 100 W/m Kuhlmann Kit

Safety is a top priority, especially with 100 W/m of power. The choice of silicone rubber for the sheath guarantees excellent flexibility for installation while maintaining optimal electrical insulation. The copper metal braiding not only provides grounding but also gives the tape good abrasion and impact resistance. This kit is a cable heating solution designed for peace of mind, ensuring effective protection of your equipment against freezing and viscosity issues. It represents an investment in the continuity of your operations, reducing the risk of costly breakdowns.
