Heating Tape Kit Kuhlmann 350W/m | Ultra-high temperature 900°C heat tracing

Ultra-Powerful Kuhlmann Heating Tape Kit: 350 W/m at 900°C

The Heating Tape Kit Kuhlmann 0-900°C 350W/m is the ultimate electrical tracing equipment for industrial and laboratory applications requiring exceptionally high temperatures.¹ With a phenomenal linear output of 350 Watts per meter, this tape is designed for the toughest thermal challenges, reaching and maintaining temperatures of up to 900 degrees Celsius. This level of performance positions it as the essential solution for critical processes such as reactor preheating, maintaining the temperature of liquid metals (low melt) or glass in certain applications, and managing fluids or powders requiring extreme thermal conditions. It provides constant heating essential for the maintenance of pumps and valves in these very high heat environments.

Advanced Insulation Technology for Extreme Temperatures

The ability of this ultra-high temperature heating tape to operate up to 900°C is based on a robust construction and the use of specific materials. The insulation is provided by silicate fiber, a material known for its exceptional resistance to thermal shocks and very high temperatures, surpassing standard insulation. The tape also features a protective copper braiding which, in addition to providing remarkable durability and flexibility, plays a crucial role in electrical safety through grounding. The optimized design of the tape, with dimensions of 30x8mm, allows for a perfect fit on surfaces, ensuring superior heat transfer and contributing to better energy efficiency even at these power levels.

Mandatory Accuracy Control for 900 Degrees

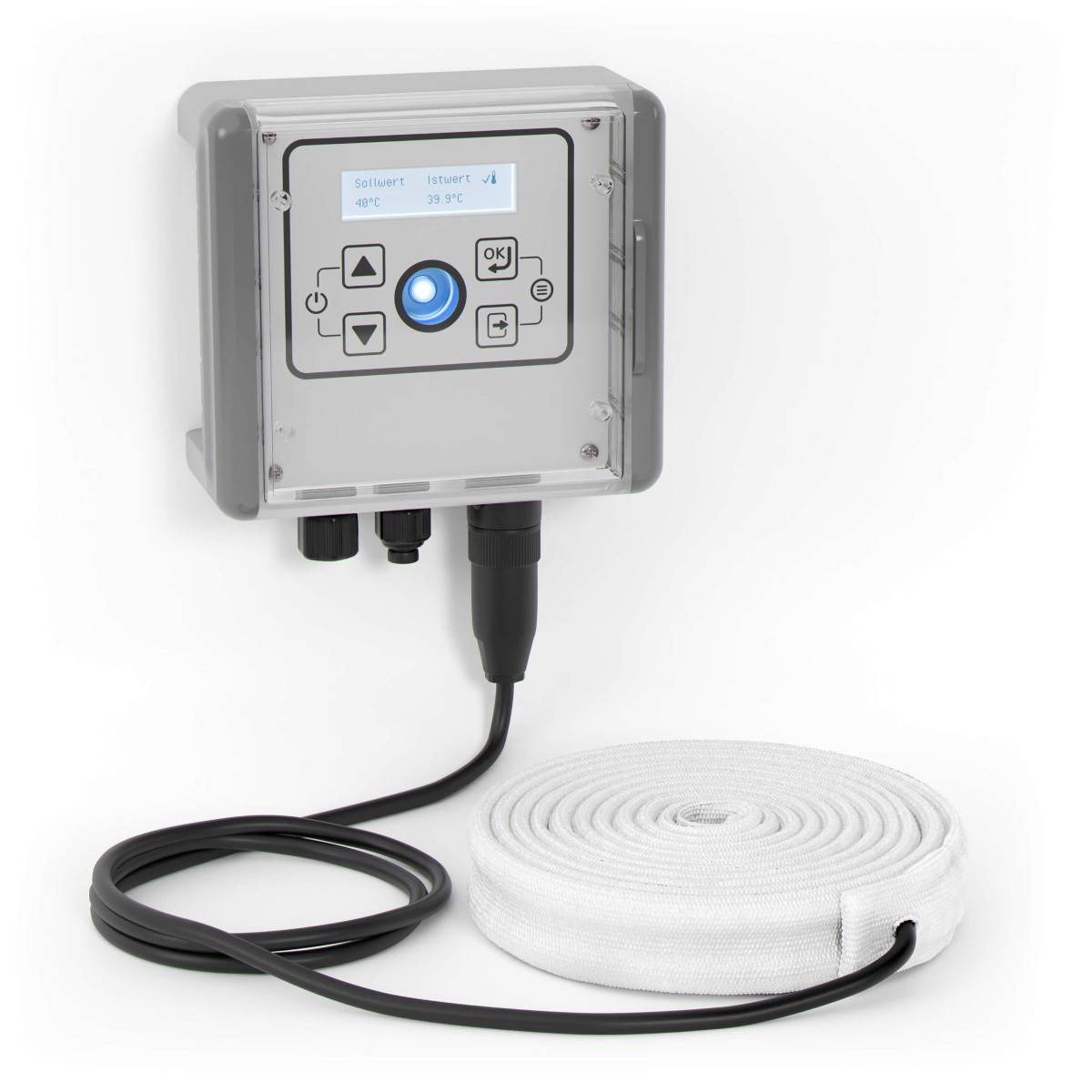

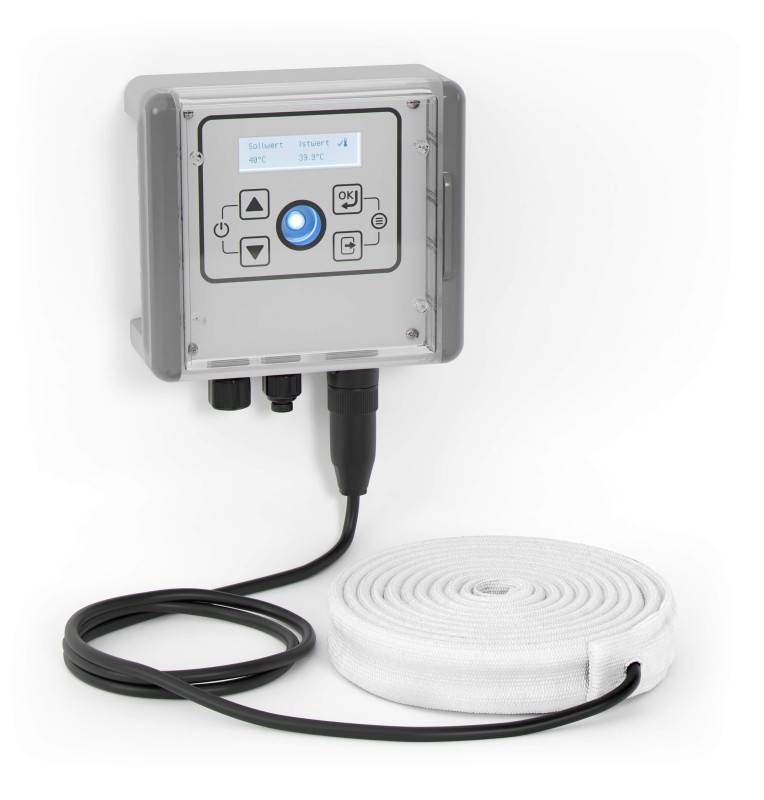

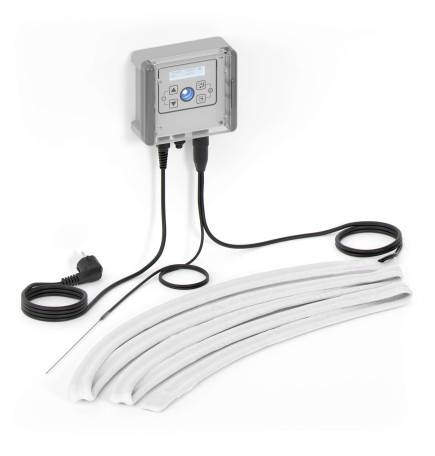

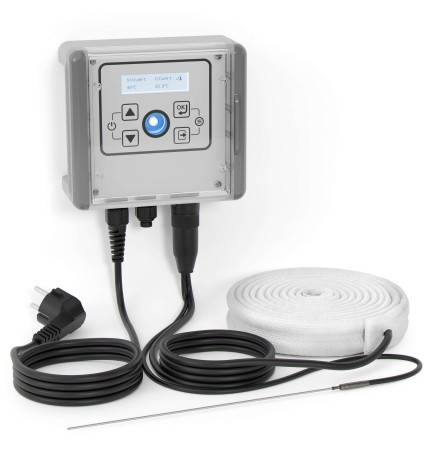

The 350 W/m power requires meticulous thermal control to ensure process safety and prevent material degradation. The ribbon is designed for optimal use with the 530 Series Controller, a reliable control system in high-power power management. Precise temperature measurement is provided by Type K Thermocouple Probes, the industry standard for measuring temperatures up to 1000°C. This technical combination is fundamental to maintaining the ideal temperature of the product without the risk of overheating or fluctuations. The standard power supply is 230V 50Hz, with a Schuko plug (CEE 7/7) for a convenient and compliant connection.

Installation Requirements and Specific Applications

This ultra-powerful heating cable is intended for users who have very specific needs, often in high-tech sectors.

• Advanced Materials Industry : Heating of ducts transporting materials requiring very high melting or processing temperatures.

• Preheating of Catalytic Systems : Use in systems where a high temperature is required for the rapid activation of industrial catalysts.

• Furnaces and Laboratory Equipment : Integration of tube furnaces or analytical equipment into targeted areas for localized heating up to 900°C.

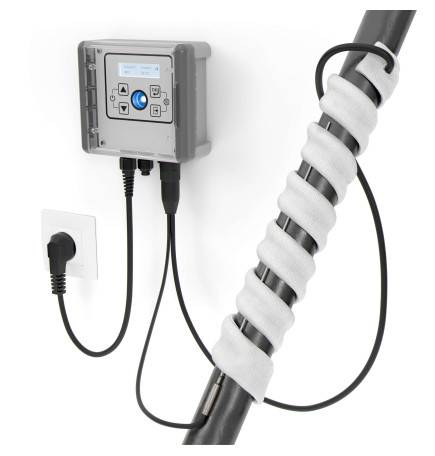

Given the energy released, the installation must be carried out with particular attention to geometric constraints to preserve the integrity of the silicate fiber. The minimum bending radius of more than 10 mm and the minimum winding distance of more than 10 mm are imperative rules to follow. In addition, very high performance thermal insulation, capable of withstanding 900°C, is essential after installation. The aim is to ensure maximum efficiency of this high-performance electrical heat tracing while protecting the working environment.

Detailed Technical Specifications of the Kuhlmann 350 W/m Kit

This table presents the technical data of this cable heating solution:

The IP20 protection class indicates that the tape is designed for dry environments and requires additional protection against moisture or splashing water (e.g. via external insulation and suitable junction boxes).

Commitment to Performance and Safety

Opting for this 900°C heat tracing kit is a strategic choice for companies whose thermal processes are at the limit of electric heating capacities. The reliability of the Kuhlmann brand, combined with the 350 W/m power, ensures that your operations will not be interrupted by a lack of heat. The kit is designed to maintain the ideal viscosity of the most challenging materials, avoiding costly blockages. The installation of this high-power heating tape is facilitated by its flexibility and optimized dimensions, but must always be coupled with a high-quality control system (530-Series Controller and Type K Probe) to operate safely and with the utmost precision.
