Tired of watering by hand? Learn how to install a low-pressure automatic sprinkler system on your 1000L tank. S60x6 fittings, timers and expert advice
World's Fastest Online Shopping Destination
World's Fastest Online Shopping Destination

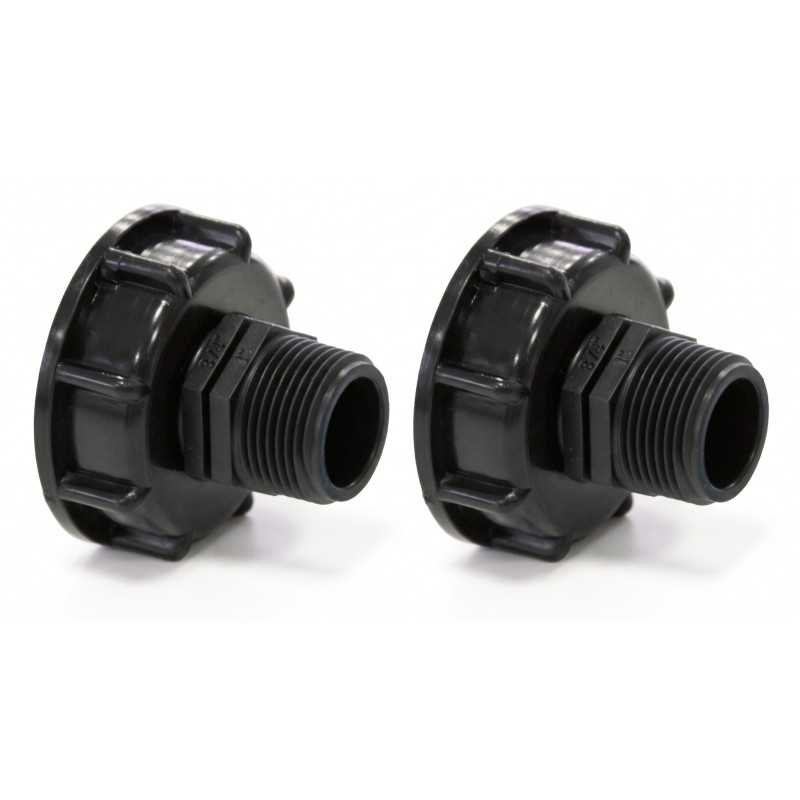

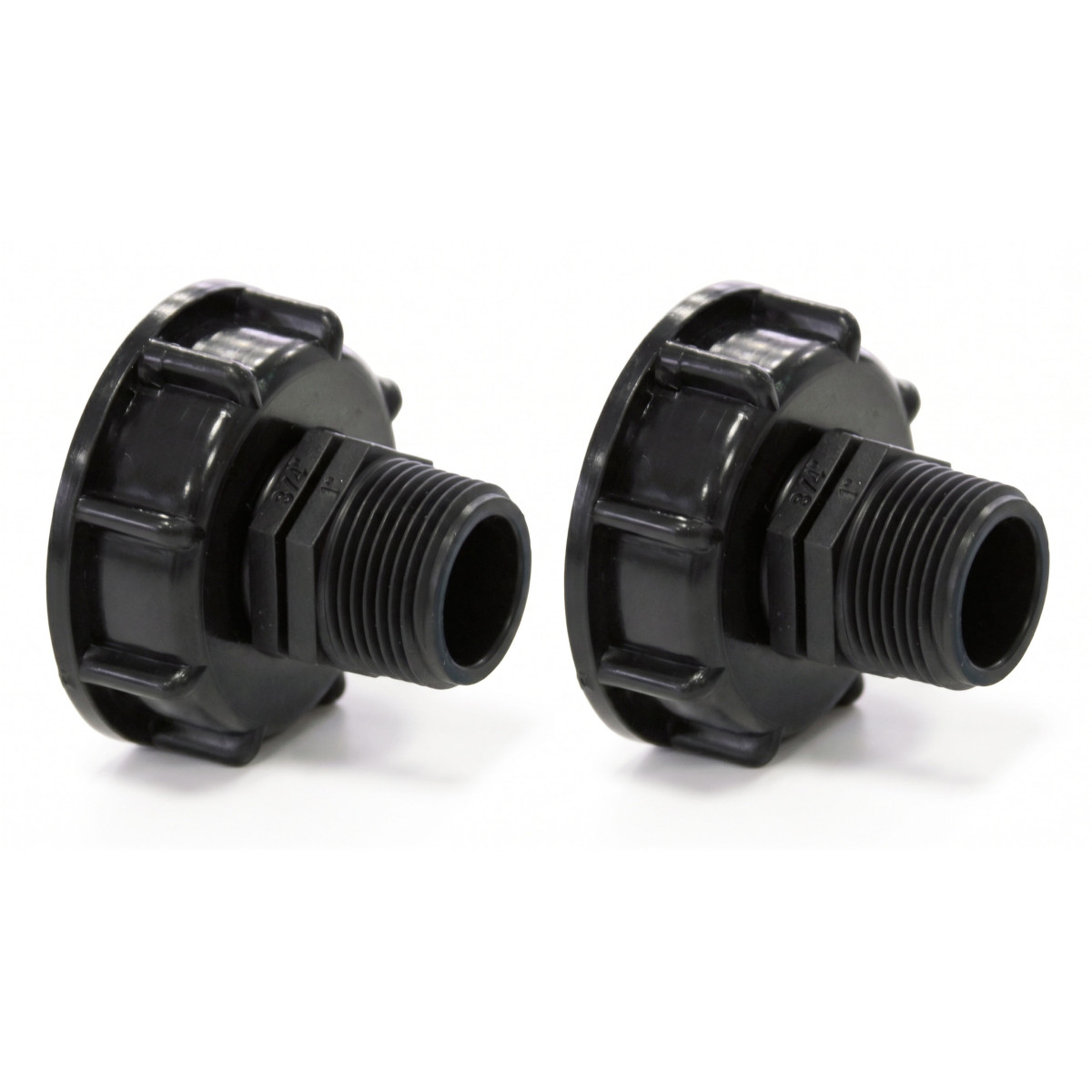

Set of 2 S60x6 Fittings with 1" Male Threaded Outlet for 1000 L IBC Tank
100230x2
€9.12
€9.60
Tax included
Save 5%Instead of €9.60
Of which €0.06 eco-tax(will not be included in the discount)
Non ci sono ancora recensioni
Two S60x6 fittings with 1" BSP male threaded outlet in the same parcel. The 1-inch thread takes standard plumbing accessories: quarter-turn valve, surface pump, linking hose between two tanks.

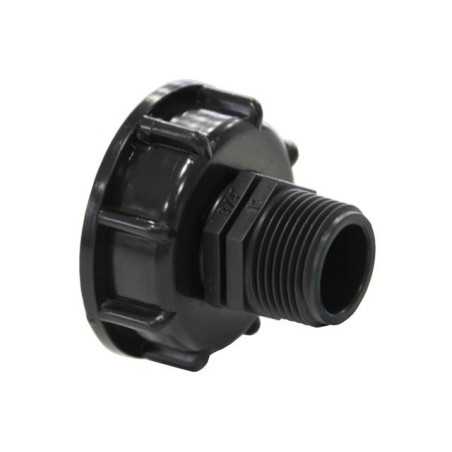

The same HDPE fitting as the one sold individually: with its S60x6 female inlet, it screws by hand onto the valve of a 1000 L IBC tank.
Safety guarantees100% secure payment
Shipping PolicyResponsive and attentive after-sales service
Returns PolicyFast and secure delivery
Set of 2 S60x6 Fittings with 1" Male Threaded Outlet for 1000 L IBC tank (Reference: 100230x2). A threaded outlet is not just for screwing on a hose: it lets you build a proper little system around your tanks. With two fittings, the most useful setups become possible straight away, with no need for a second order.
Threaded or barbed: what difference does it make?
A barbed outlet takes a hose held in place by a hose clamp. It is simple, but the connection stays flexible and does not cope well with suction. A 1" BSP male threaded outlet connects to all standard BSP plumbing hardware: valves, nipples, elbows, reducers and quick couplings.
This thread is what makes the setups below possible. It withstands the suction of a pump and can be taken apart without damaging the hose.
Linking two tanks together
Two IBC tanks, each fitted with one of these fittings and connected by a 1" female / female hose, work as a single two-cubic-metre reserve. The water level balances itself between the two, and a single draw-off point is enough to empty the whole set.
Place both tanks on level ground, at the same height: otherwise the lower one fills up while the other empties. To move or clean a tank, close both valves before unscrewing the hose.
A pump on one side, watering on the other
Water flows out of a tank by gravity, which is enough for drip irrigation or a watering can. For a long hose or a sprinkler, you need a surface pump: its suction port usually has a 1" female thread, and the fitting connects to it directly with a hose or a nipple.
The second fitting in the set can then equip another tank, or be kept as a spare. A 1" quarter-turn valve screwed onto the outlet lets you shut off the water without touching the tank valve.
Installation and sealing
The S60x6 female inlet screws by hand onto the tank valve until it meets the seal. Never tighten it with pliers: the plastic thread gets marked and the seal is lost.
On the 1" male outlet, wrap the thread with PTFE tape before screwing on the accessory. On a pump suction line this is essential: the slightest air leak will make the pump lose its prime. Before the first frosts, drain the fittings on any tanks not used over winter.
Technical specifications
| Details | Specifications |
|---|---|
| Set reference | 100230x2 |
| Packaging | Set of 2 identical fittings |

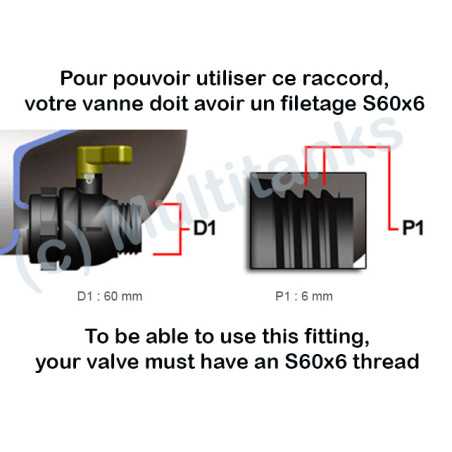

| Inlet | Female S60x6 (Ø 60 mm, 6 mm pitch) |
| Outlet | Male 1" BSP thread (26x34) |
| Material | High-density polyethylene (HDPE) |
| Operating temperature | -40 °C to +80 °C |
| Compatibility | 1000 L IBC tanks with S60x6 valve |
| Possible setups | Linking two tanks, surface pump, 1" valve |
| Installation | Hand-tightened, PTFE tape on the threaded outlet |
100230x2
33 Items
Technical sheet
- Summary #1
- Deux raccords permettent le montage que l'on ne peut pas faire avec un seul : une cuve de chaque côté d'un flexible, ou une pompe d'un côté et l'arrosage de l'autre.
- Summary#2
- Sortie mâle au pas du gaz 1 pouce, soit 26x34 : elle accepte vannes quart de tour, mamelons, coudes, réductions et raccords rapides de plomberie courante.
- Summary#3
- Entrée femelle S60x6 : elle se monte à la main sur la vanne d'une cuve IBC de mille litres, sans outil ni démontage de la vanne d'origine.
- Summary#4
- Polyéthylène haute densité, température de service donnée de moins quarante à plus quatre-vingts degrés : une plage qui couvre l'usage extérieur toute l'année.
- Summary#5
- Ruban d'étanchéité sur le filetage avant de visser l'accessoire, impératif côté aspiration d'une pompe : une prise d'air, même minime, suffit à la faire désamorcer.
