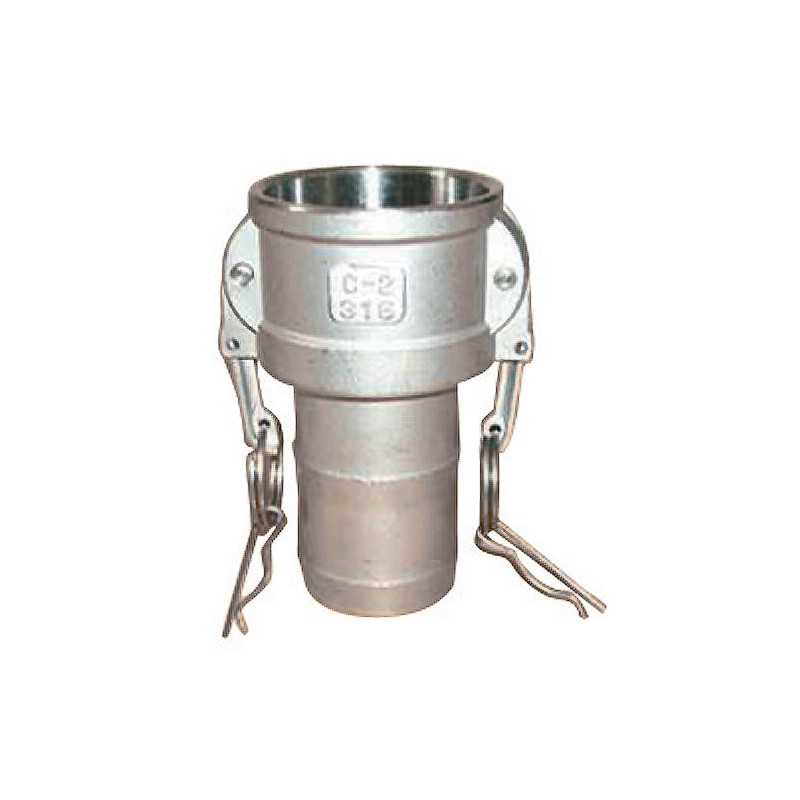

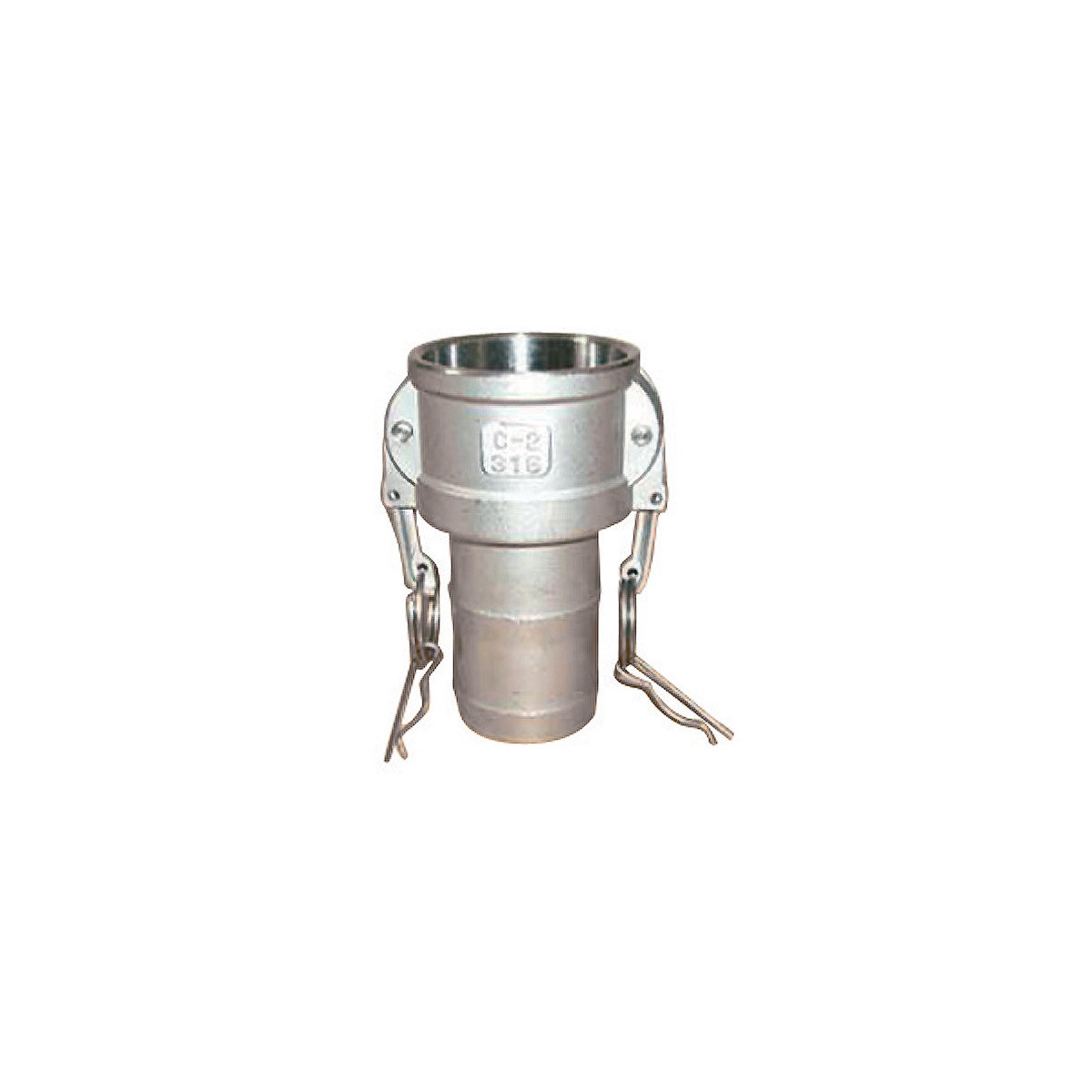

Female Camlock Fitting - Stainless Steel Hose Shank - Type C

Female Camlock Fitting - Stainless Steel Hose Shank (Reference: 3380) represents the benchmark solution for professionals seeking a reliable and durable connection in their piping systems. Made from 316 stainless steel, this Type C fitting combines technical performance and ease of use to meet the most stringent requirements of industrial, agricultural and fluid transfer applications.

Applications and Use Cases

This Type C Camlock fitting proves useful across numerous industries where connection speed and reliability are essential. In the food and beverage industry, it enables the secure connection of hoses for the transfer of food liquids, wines or oils. Agricultural operations use it for irrigation systems, spraying or liquid fertiliser transfer.

The industrial sector adopts it for cooling circuits, high-pressure cleaning systems and the handling of compatible chemical products. Firefighters and emergency services appreciate its rapid deployment during interventions. Finally, demanding private users integrate it into rainwater harvesting installations or sophisticated irrigation systems.

Technical Specifications and Materials

The 316 stainless steel used in the manufacture of this fitting represents a major technical choice. This grade of stainless steel, enriched with molybdenum, offers exceptional corrosion resistance, even in saline environments or in the presence of aggressive chemicals. Its composition also provides excellent resistance to high temperatures and thermal variations.

The female hose shank features an optimised design with precise grooves that guarantee perfect adhesion with the hose. The Type C Camlock mechanism incorporates ergonomic levers facilitating handling even with gloves. The polished stainless steel finish ensures a smooth surface, limiting residue build-up and facilitating cleaning. Available in a complete range of diameters from 1/2 inch to 6 inches, this fitting adapts to all projects.

Installation and Practical Use

Installing the Type C Camlock fitting takes place in three simple steps requiring no specialised tools. First, insert the hose shank into the end of the hose, ensuring it fully covers the grooves. Second, position the corresponding male fitting by perfectly aligning the contact surfaces. Third, lock the Camlock levers with a firm movement until you hear the security click.

For disassembly, simply lift the levers and separate the two parts with a pulling motion. This ease of use allows for rapid on-site interventions, particularly appreciated during frequent configuration changes or preventive maintenance. Sealing is provided by food-grade O-rings, which are easily replaceable.

Maintenance is limited to regular rinsing with clean water and periodic cleaning with appropriate detergents depending on the fluid being transported. Regularly check the condition of the seals and replace them as necessary to maintain optimal sealing.

Expert Advice and Product Synergies

To optimise the efficiency of your installation, pair this Type C fitting with our corresponding male Camlock fittings in 316 stainless steel to guarantee perfect material compatibility. The use of stainless steel hose clamps will reinforce the mechanical hold of the assembly, particularly recommended for pressurised or vibrating applications.

Avoid the common mistake of oversizing the fitting relative to the actual flow rate: an appropriate diameter optimises flow velocity and limits pressure losses. In outdoor environments, protect fittings from freeze-thaw cycles by draining circuits or using compatible antifreeze fluids.

For food applications, strictly follow cleaning protocols and favour FDA-approved seals to maintain sanitary compliance. When used with chemicals, always verify the chemical compatibility of 316 stainless steel with your specific fluid. Our technical team remains available to assist you in choosing complementary accessories and optimising your installation.
