Name: ISO 228-1 Divisional Water Meter | R80 Precision | PN16
Brand: Multitanks
SKU: 1520
Price: 54.88 EUR
Availability: InStock

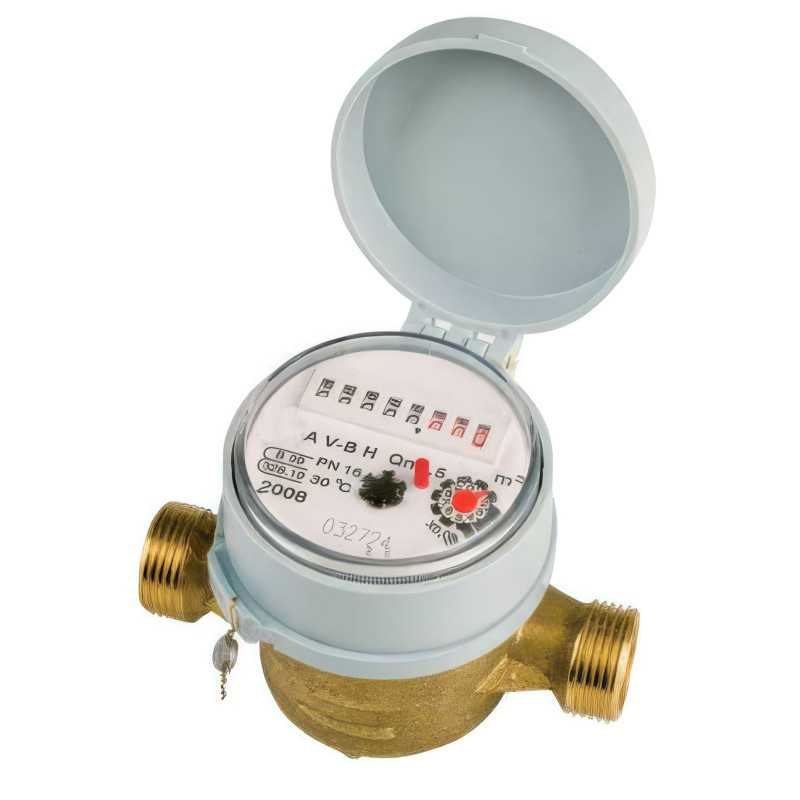

Divisional water meter - cold water

Divisional water meter:

Single-jet tangential turbine speedometer

Use: Drinking water count for collective and individual habitat
Design: Single-jet turbine. Dry 360-degree dial with protective hood. Magnetic transmission. Direct play on 8 encrypted rolls (0000,000 m3). ISO 228-1 gas thread.

Anti-fraud: Lead, protection from external magnetic fields, anti-crushing pawn.
Matter: Brass body
Mechanical skills: Frost-resistant. Low load losses (0.63 bar max)
Precision class: R80 (horizontal), R50 (upright)
Pressure: PN 16 bar
Installation: Upstream and downstream pipes not necessarily straight (U0D0)
Certifications: MID 2004/22/CE

Temperature: 0C/50C
Delivered without union fitting (ref. 2308 and 2309)
The Q1 and Q2 values of the table are valid for a horizontal mount (R80 class)

Ref. multitanks DN (C) Threading Q3 Permanent flow (m3/h) Length Height
_____________________________________________________________________
1520-34 15 3/4" 2.5 110 mm 85 mm
1520-1 20 1" 4,130 mm 85 mm

BrandMultitanks

Reference 1520-34

In stock2 Items

Technical sheet

Summary #1: The Cold Water Sub-Meter is a high-precision measuring instrument designed specifically for metering drinking water in individual and collective homes. This speedometer uses single-jet tangential turbine technology, providing exceptional reliability for water consumption management. Its robust and compact design makes it the ideal solution for fair and accurate billing within condominiums or for domestic monitoring.
Summary#2: This meter incorporates technical features designed to facilitate installation and daily use: 360° rotatable dry dial: Allows comfortable reading regardless of the installation orientation, with an integrated protective cover. Direct reading: Clear display on 8 encrypted rolls for precise tracking down to the litre (00000,000 m³). Magnetic Transmission: Ensures perfect isolation of the counting mechanism for increased longevity.
Summary#3: The reliability of the measurement is guaranteed by reinforced safety devices against manipulation attempts. The device is equipped with a sealing system, an anti-crush pin and protection against external magnetic fields. Manufactured with a high-quality brass body, it has remarkable mechanical properties, including frost resistance and very low pressure drops (0.63 bar maximum).
Summary#4: Compliant with the European MID 2004/22/EC directive, this meter offers great freedom of installation. Thanks to its U0D0 certification, it does not necessarily require straight lengths of upstream or downstream pipe, simplifying its integration into small spaces. It can withstand a working pressure of PN 16 bar and operates optimally between 0°C and +50°C.
Summary#5: In a specific case, this sub-meter is installed in an apartment technical duct to individualize the cold water charges. Its accuracy class R80 in the horizontal position (or R50 in the vertical position) guarantees fine flow rate detection. For example, it can be used to monitor an outdoor watering point to separate domestic consumption from garden use. Note that the device is delivered without union fittings, allowing you to choose the most suitable connection accessories (ref. 2308 or 2309) for your ISO 228-1 piping.
