90-degree galvanized male malleable cast iron elbow for distribution of water, drinking water, gas, steam, liquid and non-corrosive gas. CVC systems.

Design, manufacture and control:
- Connections are manufactured in accordance with EN 10242 and ISO 49 standards.
- Nuance of matter: EN-GJMW-400-5 according to EN 1562.
- The finish of the fittings is galvanized (ep. 70 m). Corrosion protection is added by allowing the fittings to be retained.

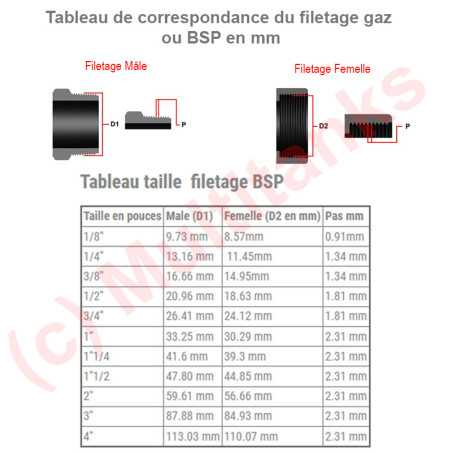

- All threaded connections are ISO 7-1 (BSPT), with conical male tip (R) and cylindrical female tip (Rp). Free nuts for union connection are gas-type in accordance with ISO 228-1 (BSPP).
- 100% of the fittings are waterproofed.

Mark Multitanks

Reference 92GAL-14

In stock 8 Items

Technical data sheet

Summary#1: 90° galvanized male female elbow in malleable cast iron for distribution of water, drinking water, gas, steam, liquid and non-corrosive gases.
Summary#2: The connections are manufactured in accordance with EN 10242 and ISO 49. Material grade: EN-GJMW-400-5 according to EN 1562
Summary#3: The finish of the fittings is galvanized (ep. 70μm). Corrosion protection is added by allowing the fittings to be preserved.
Summary#4: All threaded connections comply with ISO 7-1 (BSPT), with conical male tip (R) and cylindrical female tip (Rp).
Summary#5: The free nuts for union connection are of the gas type in accordance with ISO 228-1 (BSPP).

Specific references

ean13: 3760317885321

Review the product

Le client n'a pas laissé de commentaire.

By Jean-mchel t. the 05/02/2025

Combinations	Diameter	Reference	Stock	Price	Add to cart
Diameter : 1/4'' Reference : 92GAL-14 Stock : 8	1/4''	92GAL-14	Available now Stock : 8	€3.05 TTC	€3.05 TTC
Diameter : 1/2'' Reference : 92GAL-12 Stock : 0	1/2''	92GAL-12	Shipping in 4-5 days	€2.17 TTC	€2.17 TTC
Diameter : 3/8'' Reference : 92GAL-38 Stock : 7	3/8''	92GAL-38	Available now Stock : 7	€2.95 TTC	€2.95 TTC
Diameter : 3/4'' Reference : 92GAL-34 Stock : 12	3/4''	92GAL-34	Available now Stock : 12	€3.20 TTC	€3.20 TTC
Diameter : 1'' Reference : 92GAL-1 Stock : 1	1''	92GAL-1	Available now Stock : 1	€5.39 TTC	€5.39 TTC
Diameter : 1''1/4 Reference : 92GAL-114 Stock : 0	1''1/4	92GAL-114	Shipping in 4-5 days	€9.05 TTC	€9.05 TTC
Diameter : 1''1/2 Reference : 92GAL-112 Stock : 0	1''1/2	92GAL-112	Shipping in 4-5 days	€13.53 TTC	€13.53 TTC
Diameter : 2'' Reference : 92GAL-2 Stock : 0	2''	92GAL-2	Shipping in 4-5 days	€17.79 TTC	€17.79 TTC
Diameter : 2''1/2 Reference : 92GAL-212 Stock : 0	2''1/2	92GAL-212	Shipping in 4-5 days	€42.10 TTC	€42.10 TTC
Diameter : 3'' Reference : 92GAL-3 Stock : 0	3''	92GAL-3	Shipping in 4-5 days	€52.78 TTC	€52.78 TTC
Diameter : 4'' Reference : 92GAL-4 Stock : 0	4''	92GAL-4	Shipping in 4-5 days	€90.08 TTC	€90.08 TTC
