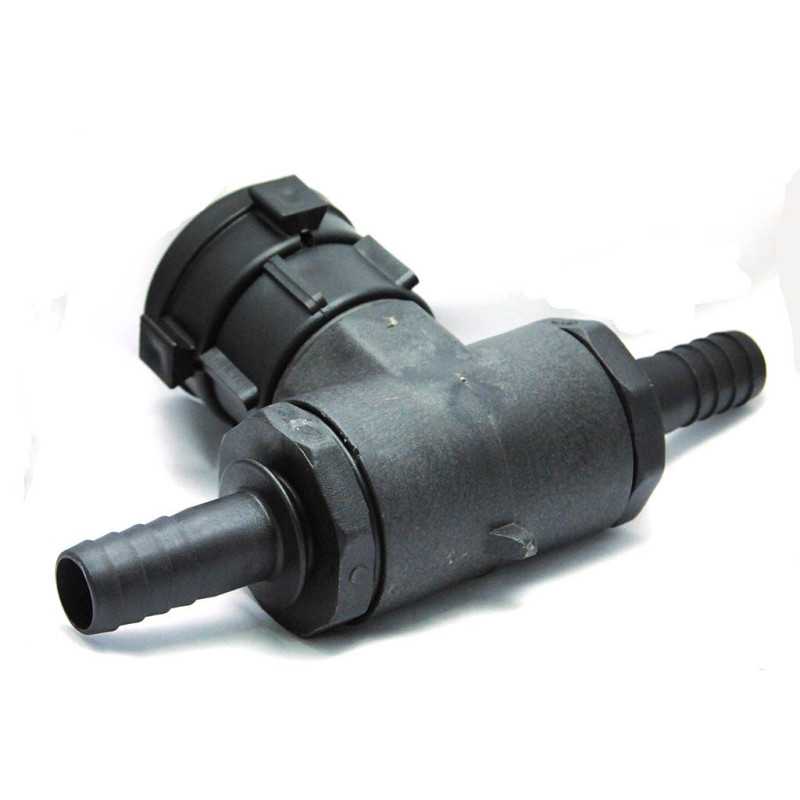

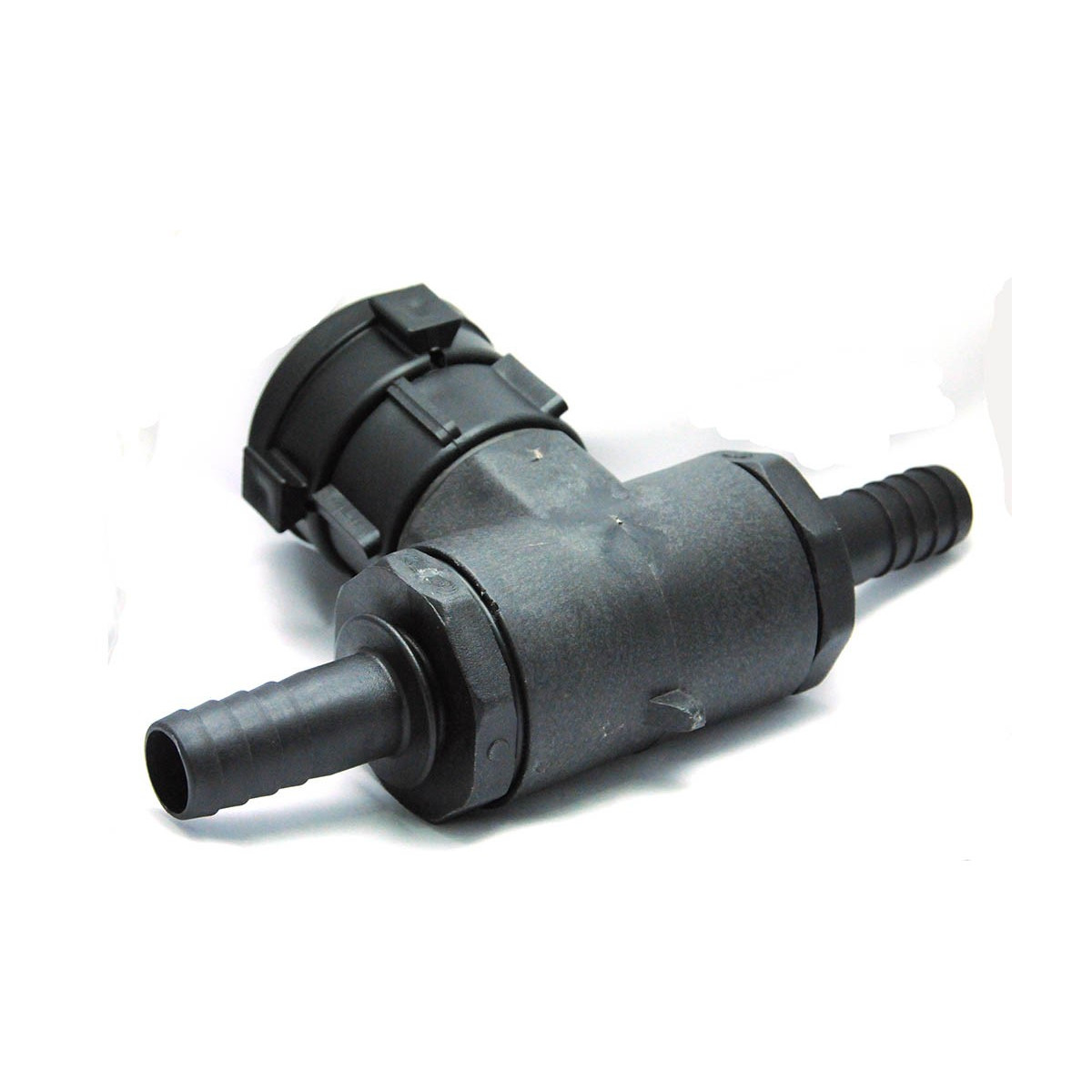

Female S60x6 swivel nut fitting with Tee and double male barbed outlet 25mm

Female S60x6 swivel nut fitting with Tee and double male barbed outlet 25mm (Reference: 104052) is an advanced technical component developed by Multitanks to optimize fluid distribution on your 1000 liter IBC tank installations. This professional fitting allows you to transform a single outlet into double distribution, offering an efficient solution to supply two separate circuits from a single draw-off point.

Applications and usage areas

This double outlet Tee fitting finds its place in many professional and domestic applications. It is particularly suitable for automated irrigation systems requiring the supply of two distinct garden zones, industrial installations requiring the distribution of chemicals to different processes, and agricultural systems for irrigation of separate greenhouses or plots.

Professionals in the agri-food sector also use it to divide cleaning or rinsing flows, while individuals appreciate it for creating independent watering circuits in their gardens. This versatility makes the 104052 fitting a key element for any installation requiring efficient multi-point distribution.

Technical characteristics and design

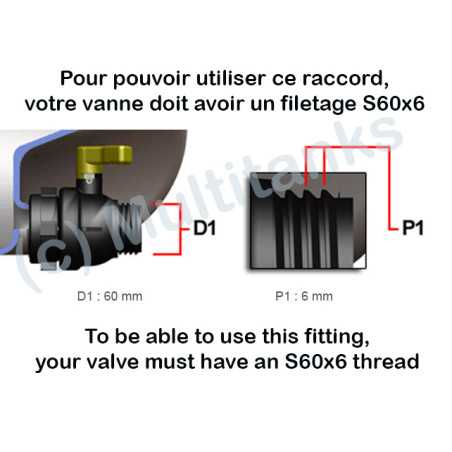

The design of this fitting is based on an S60x6 female thread perfectly calibrated according to industrial standards, with a nominal diameter of 60mm and a pitch of 6mm. This standardization guarantees total compatibility with all IBC valves and accessories available on the market.

The swivel nut constitutes the major innovation of this product, allowing easy screwing and unscrewing without orientation constraints. The two 25mm male barbed outlets are machined with precision to ensure perfect hose attachment, avoiding any risk of leakage or accidental disconnection.

The Tee geometry is optimized to minimize pressure losses, guaranteeing balanced flow on both outlets. The materials used resist UV, thermal variations and most chemicals commonly stored in IBC tanks.

Installation and implementation

Installing this Tee fitting requires only standard tools and can be performed without specialized skills. Start by checking the compatibility of your existing valve with the S60x6 thread. Carefully clean the threads before installation to guarantee optimal sealing.

Tightening must be done progressively, using the swivel nut to position the Tee in the desired orientation before final tightening. Be careful not to overtighten to avoid damaging the seals. The 25mm hoses connect directly to the barbed outlets, with or without clamps depending on the application.

For maintenance, periodic disassembly allows checking the condition of seals and cleaning internal ducts. The modular design facilitates selective replacement of components if necessary, thus optimizing the installation''s service life.

Expert advice and optimizations

To maximize the efficiency of this fitting, combine it with control valves on each outlet to independently control flow rates. This configuration allows adapting distribution according to the specific needs of each circuit, particularly useful for watering zones with different water requirements.

In industrial environments, installing pressure gauges on downstream circuits facilitates pressure monitoring and early detection of potential malfunctions. For outdoor applications, protect the fitting from weather by installing it in a pit or under a protective cover.

A common error is neglecting the balancing of hose lengths on both outlets. Unequal lengths can create pressure imbalances and affect flow distribution. Favor routes of similar length or compensate with appropriate control valves.

This fitting integrates perfectly with other components of the Multitanks range, notably S60x6 ball valves and pressure reducers to create complete and efficient installations.

Technical specifications
