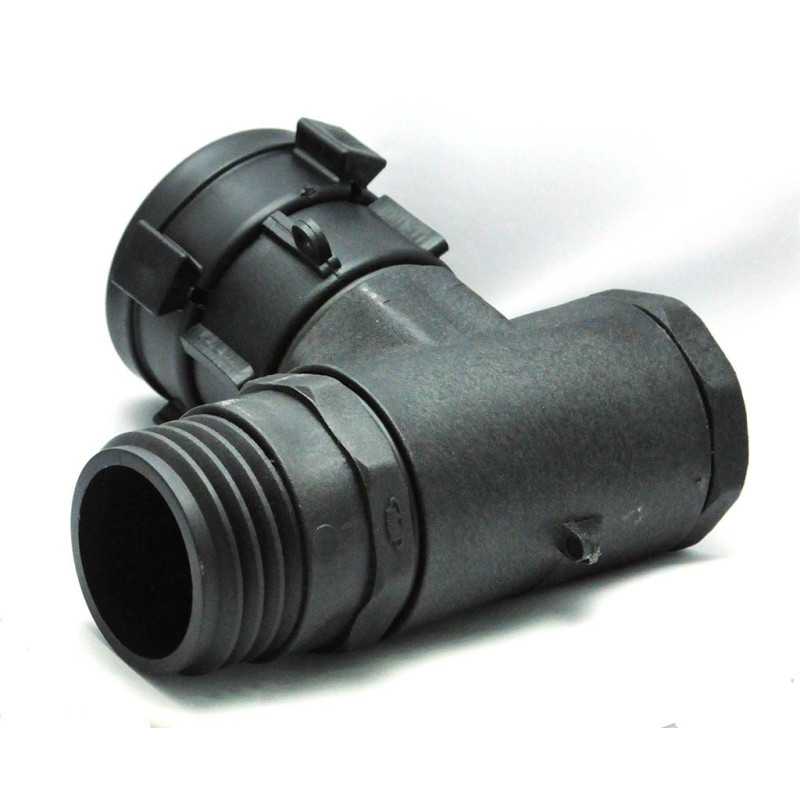

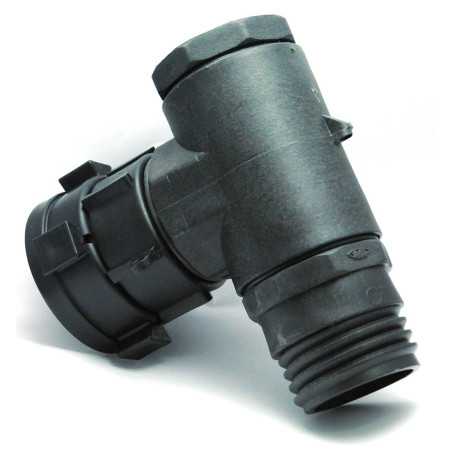

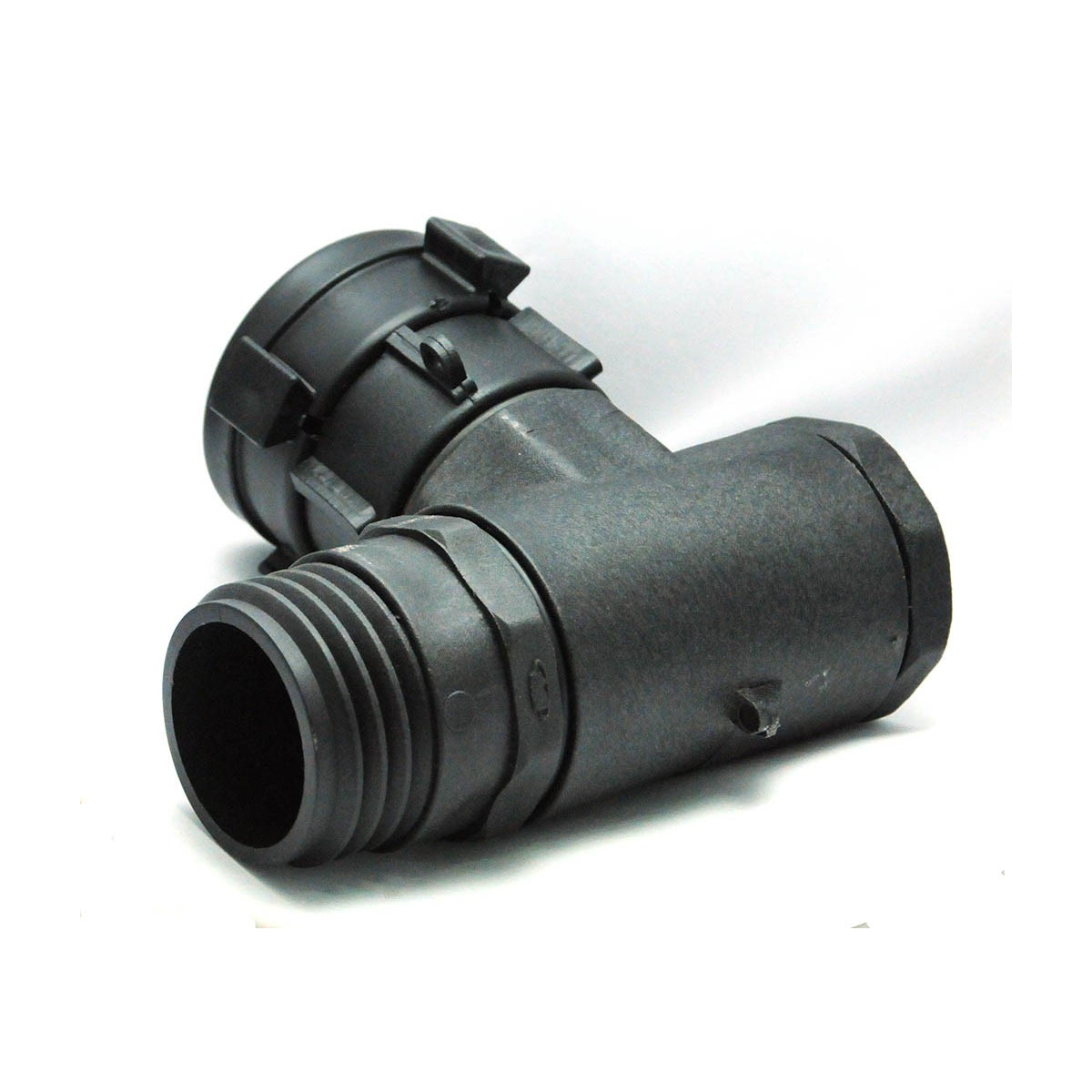

S60x6 Female Fitting with Swivel Nut 90° Elbow and S60x6 Male Outlet

S60x6 Female Fitting with Swivel Nut 90° Elbow and S60x6 Male Outlet (Reference: 104050) represents an advanced technical solution for your 1000-liter IBC tank setup. This professional Multitanks fitting combines the efficiency of a 90° elbow with the practicality of a swivel nut, providing unmatched installation flexibility. Designed according to the most demanding industrial standards, it guarantees a reliable and durable connection for all your liquid storage and distribution projects.

Applications and Benefits

This elbow fitting finds application in numerous configurations where a 90° direction change is necessary. Farmers use it to orient their irrigation systems, while industrialists appreciate it for optimizing space in their storage installations. The swivel nut allows final orientation adjustment without constraint, avoiding twisting on connected piping.

Particularly suitable for confined spaces, this fitting facilitates valve access and allows bypassing obstacles. It proves indispensable for indoor installations where space optimization is crucial, such as in cellars, garages or technical rooms. Its robust design perfectly suits demanding professional environments.

Technical Specifications and Compatibility

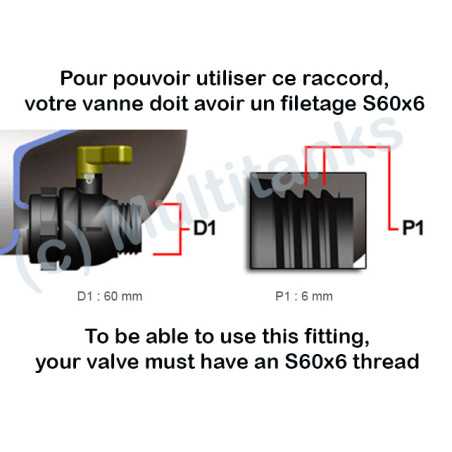

The S60x6 threading strictly complies with industrial standards with a 60 mm external diameter and 6 mm thread pitch. This standardization ensures perfect compatibility with all S60x6 valves and fittings on the market. The female part screws directly onto your IBC tank outlet, while the male outlet receives the next fitting in your installation.

Metal construction ensures exceptional resistance to pressure and mechanical stress. The 90° elbow is precision machined to minimize pressure losses while maintaining optimal flow. The swivel nut, the centerpiece of this fitting, allows free rotation without loosening the main connection, thus providing unique orientation flexibility.

Installation and Use

Installing this fitting requires no specialized tools. Begin by checking that your valve threading corresponds to the S60x6 standard. Manually screw the female part onto the tank outlet following the rotation direction, then moderately tighten with a suitable wrench to ensure sealing.

Once fixed, orient the elbow in the desired direction by rotating the nut until achieving the perfect angle. This operation can be performed at any time, even after complete system installation. For maintenance, periodic cleaning with soapy water is sufficient to maintain optimal functionality. Regularly check tightening to prevent loosening due to vibrations or thermal variations.

Expert Advice and Optimization

To maximize your installation efficiency, combine this elbow fitting with S60x6 ball valves that offer full opening and minimize flow restrictions. Using Teflon seals or sealing paste suitable for transported liquids improves connection safety.

In outdoor installations, protect the fitting from UV and weather with suitable covering. For food applications, ensure all circuit components comply with food contact standards. Avoid over-tightening which could damage threading and compromise sealing. For mobile tank installations, periodically check connections as movements can cause progressive loosening.

This fitting pairs perfectly with reinforced flexible hoses or rigid PVC or stainless steel tubes according to your specific needs. For temporary installations, its easy assembly/disassembly makes it a preferred choice.

Technical Characteristics
