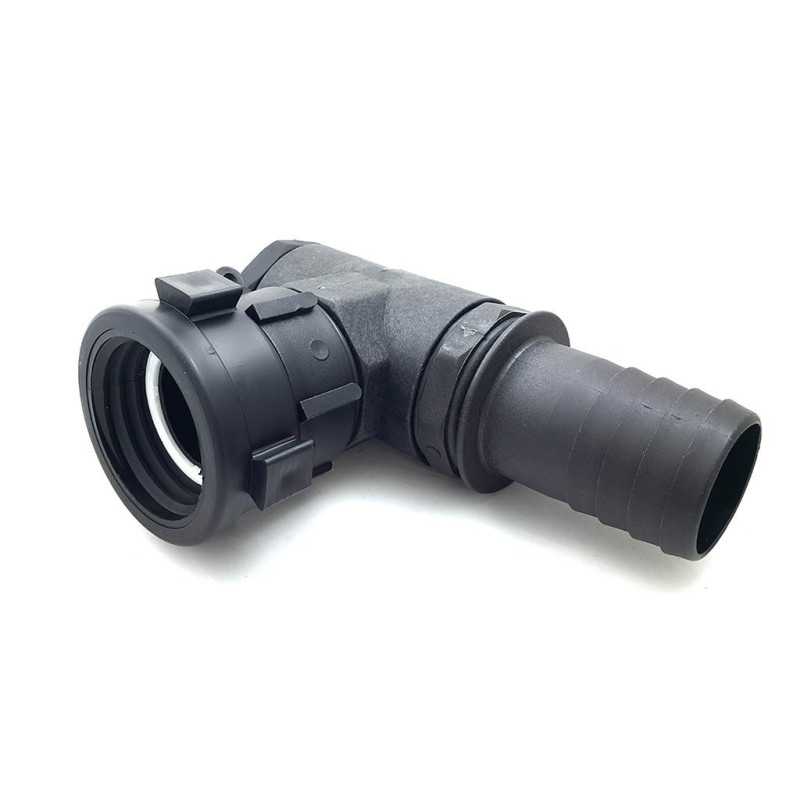

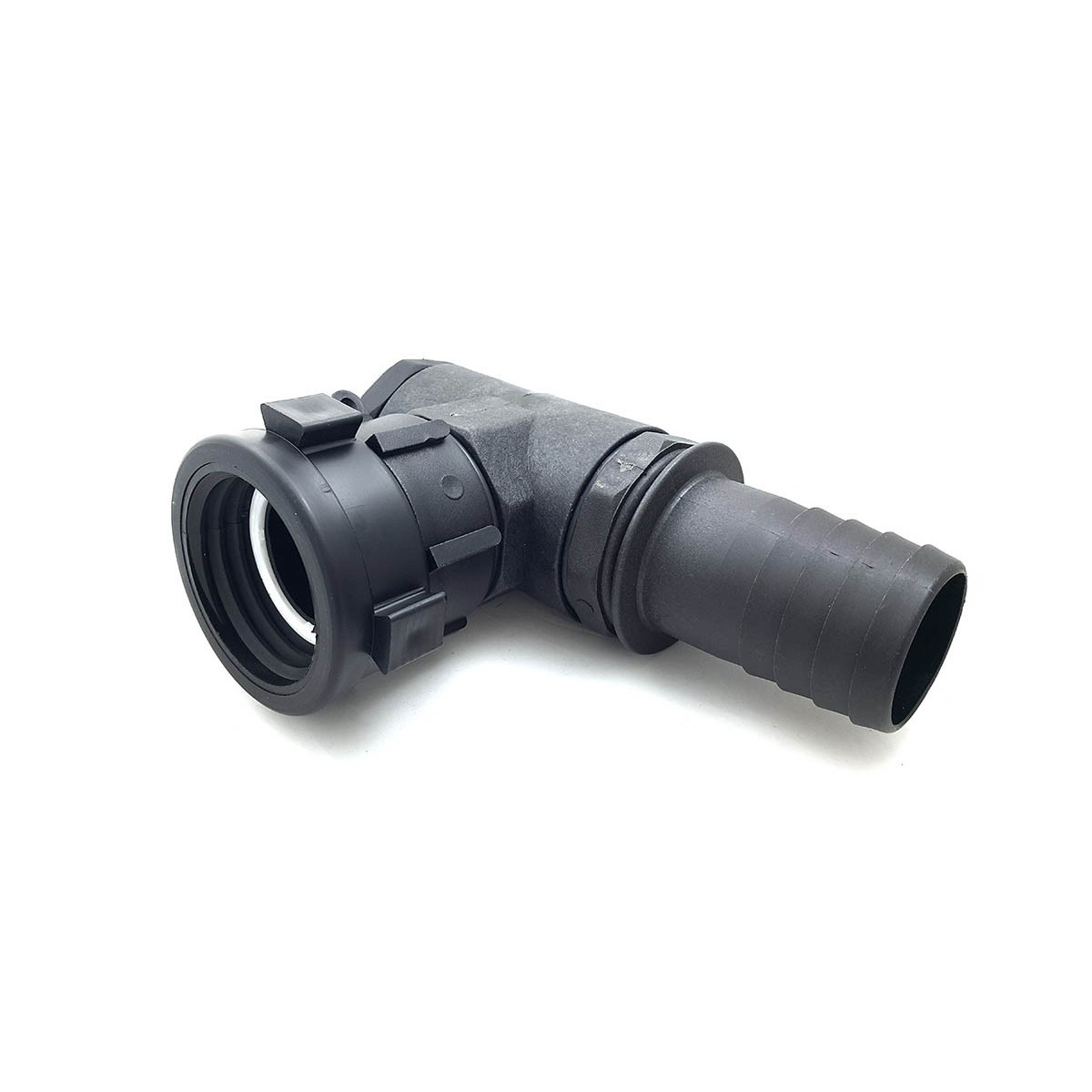

S60x6 Female Fitting Swivel Nut with 90° Elbow and 50mm Male Barbed Outlet

S60x6 Female Fitting Swivel Nut with 90° Elbow and 50mm Male Barbed Outlet (Reference: 104053) represents an advanced technical solution for 1000-litre IBC tank installations requiring precise directional changes. This professional Multitanks fitting cleverly combines an S60x6 female thread, a swivel nut and a 90° elbow with barbed outlet, offering exceptional versatility for your industrial and agricultural setups.

Applications and Benefits

This elbow fitting perfectly meets space and orientation constraints in IBC tank installations. Ideal for both private and professional users, it allows diverting flow at 90° while maintaining the ability to adjust the outlet orientation thanks to the swivel nut. This feature proves particularly useful in confined spaces, series installations, or when lateral access is required.

Main applications include automated irrigation, rainwater harvesting systems, industrial storage installations for non-corrosive liquids, and distribution circuits for agriculture. The 50mm barbed outlet ensures a robust connection with flexible or semi-rigid hoses, guaranteeing optimal flow for demanding applications.

Technical Specifications and Compatibility

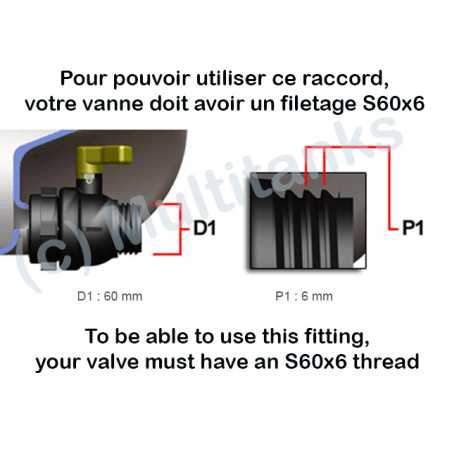

The S60x6 female thread strictly complies with industrial standards with a 60mm diameter and 6mm pitch, ensuring perfect compatibility with standard IBC tank valves. This standardisation guarantees interchangeability and connection reliability, which are crucial elements in professional installations.

The swivel nut is the major innovation of this fitting, allowing free rotation of the barbed outlet without compromising the seal. This ingenious design greatly facilitates installation and post-assembly adjustment. The 50mm male barbed outlet is precision-machined to ensure a perfect fit with hoses, reducing the risk of leaks and optimising hydraulic performance.

The integrated 90° elbow respects optimal bend radii to minimise pressure losses while maintaining smooth flow. The selected materials resist outdoor conditions and thermal variations, ensuring a prolonged service life even under intensive use.

Installation and Optimal Use

Installing this fitting requires careful preparation of the contact surface on the S60x6 valve. Thoroughly clean the thread and check for any defects or foreign bodies. The use of a suitable sealing gasket is recommended to ensure a perfectly watertight connection.

Tightening should be carried out progressively and evenly, avoiding over-tightening which could damage the thread or deform components. Once the fitting is secured, the swivel nut allows you to adjust the orientation of the 50mm outlet to suit your specific needs without unscrewing the entire fitting.

For connecting the 50mm hose, ensure the internal diameter exactly matches the barbs. The use of a suitable hose clamp reinforces the mechanical hold and seal of the assembly. Always test the installation at reduced pressure before final commissioning.

Expert Tips and Product Synergies

To optimise the performance of this fitting, we recommend pairing it with professional-grade semi-rigid hoses that maintain their shape while offering sufficient flexibility. Adding a shut-off valve downstream allows precise flow control and facilitates maintenance operations.

In permanent installations, consider adding a support or bracket to relieve mechanical stress on the fitting, particularly important with heavy hoses or those subject to movement. This precaution significantly extends the service life of the installation.

For seasonal applications, the fitting's reorientation capability allows you to quickly adapt the flow direction as needed. Professional tip: mark the optimal position of the swivel nut to easily find the ideal configuration during reassembly.

Avoid mixing incompatible materials and favour food-grade gaskets if the installation involves drinking water. Preventive maintenance includes periodic tightening checks and visual inspection of sealing gaskets.
