Summary #1

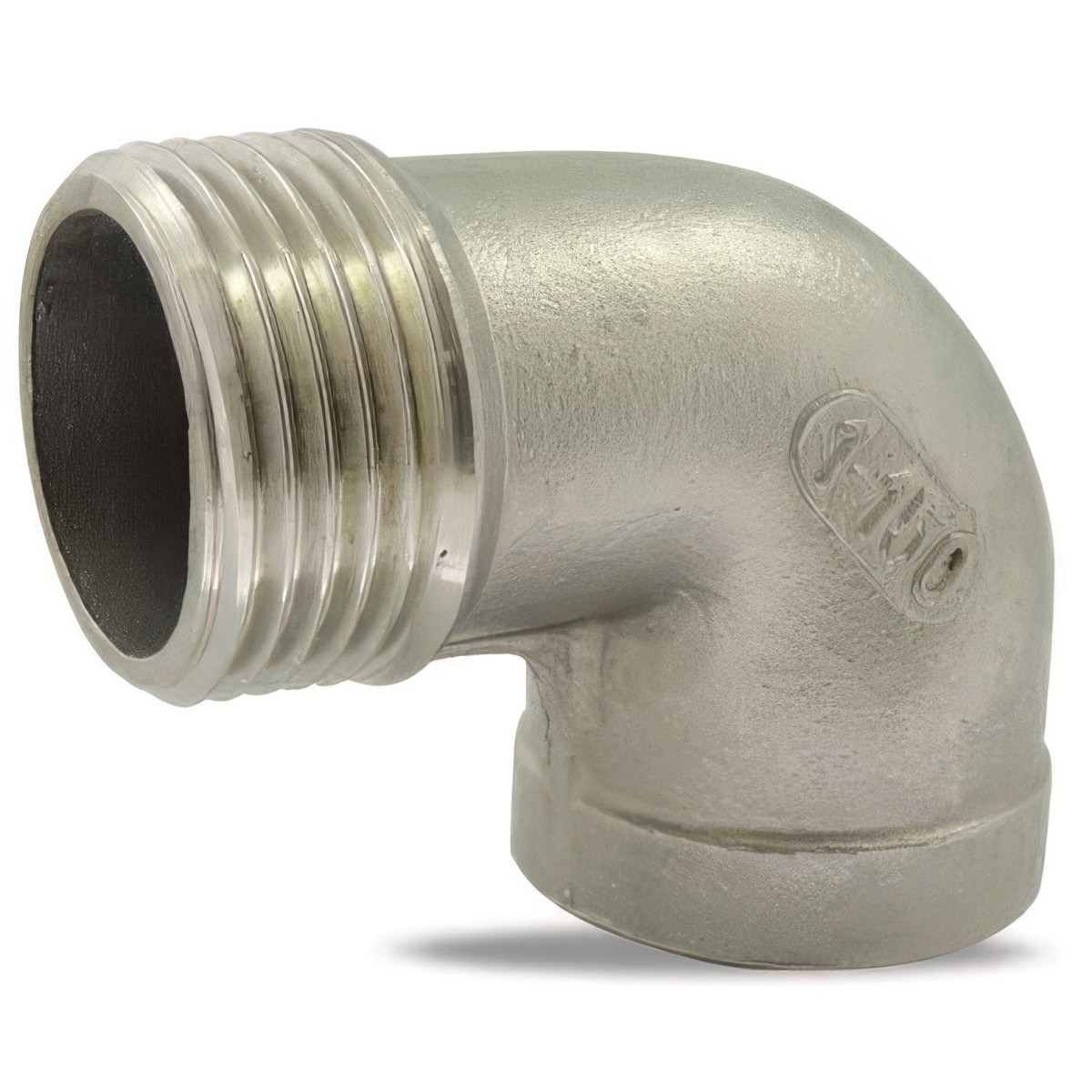

The 90° male/female elbow is an essential pipe fitting designed to achieve right-angle changes of direction while providing a transition between two types of threaded connections. Manufactured in accordance with ISO 4144, this component guarantees perfect interchangeability and exemplary reliability for professional hydraulic installations. Its compact and robust design saves significant space in complex assemblies, while providing a strong and durable connection base.

Summary#2

This elbow is entirely machined from AISI 316 stainless steel, a high-end material known for its exceptional resistance to corrosion, aggressive chemical agents and saline environments. Thanks to its intrinsic properties, it can withstand a very wide operating temperature range from -20°C to +220°C. This robustness makes it the preferred choice for the petrochemical, pharmaceutical and food and beverage sectors, where the inertia of the material is crucial to ensure fluid purity and infrastructure sustainability.

Summary#3

Calibrated for a nominal pressure of PN 20 bar, this fitting offers optimum safety for discharge circuits and pressure transfer networks. Its robust structure is able to withstand the severe mechanical stresses encountered in shipbuilding, steel mills or heavy industrial maintenance. By choosing this component, you ensure the future-proof of your installations and minimize the risk of structural failure in the long term, even under intensive operating conditions and frequent pressure cycles.

Summary#4

This elbow is distinguished by its mixed configuration in accordance with ISO 7-1 (BSPT). It has a tapered male bit (R) and a cylindrical female bit (Rp), allowing a threaded element to be directly connected to a threaded element without any intermediate accessories. This technical specificity ensures sealing by direct contact of the threads (metal-to-metal contact), facilitating direct integration on valves, pump casings or manifolds while guaranteeing hermetic assembly and simplified maintenance.

Summary#5

The 90° male/female elbow is the universal solution for optimizing your piping routing in tight spaces where connection flexibility is required. Its careful workmanship limits internal turbulence and network fouling, which is essential for water treatment, agricultural irrigation or complex industrial processes. This AISI 316 stainless steel fitting is a long-term investment, adapting to the most demanding configurations with constant reliability and proven resistance to external aggressions and thermal variations.

Specific references

EAN13

3760269585140
