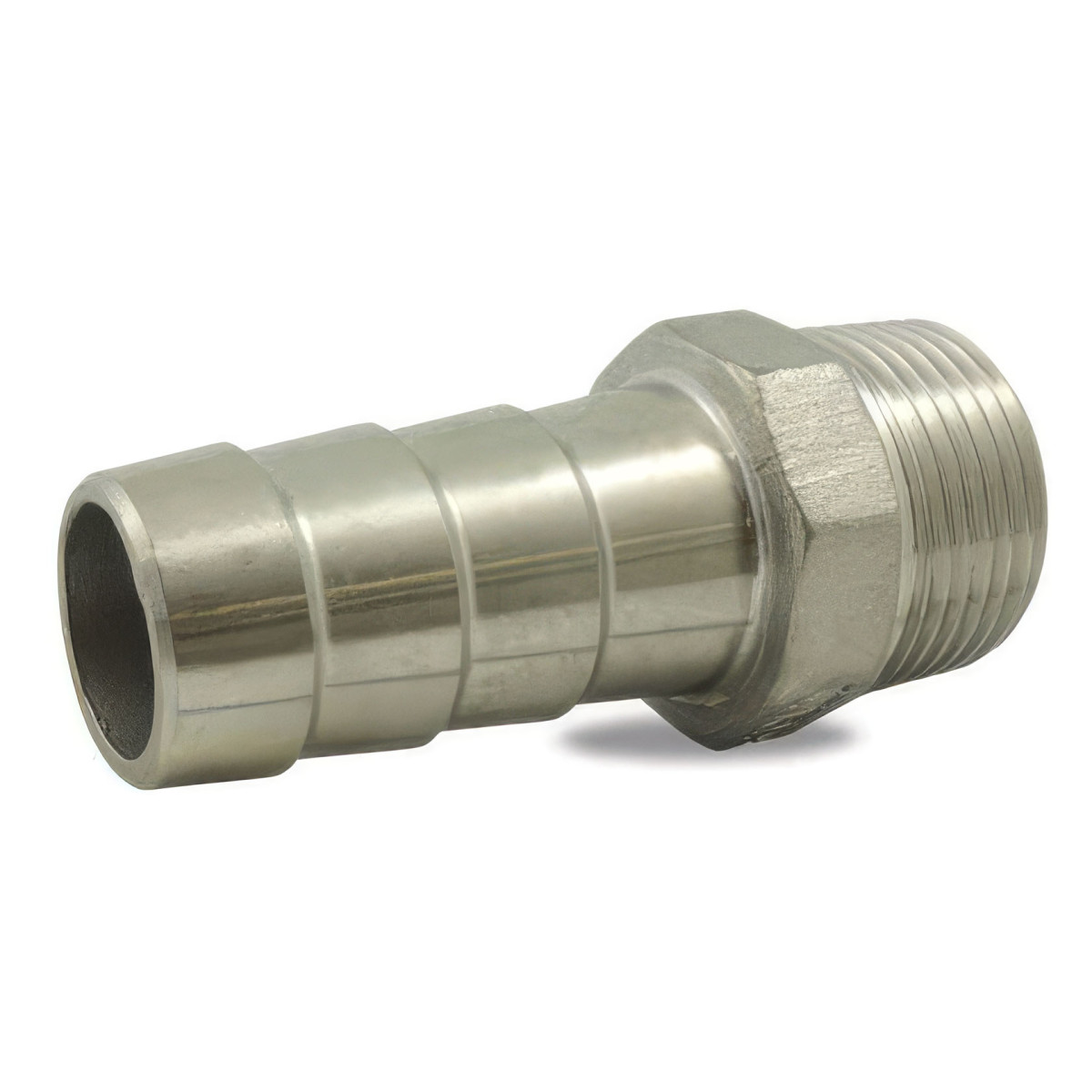

The 8516 Series Male Spline Socket is a high-precision industrial connection component that is essential for connecting rigid piping to flexible hose. Designed according to ISO 4144, it guarantees exemplary reliability for the most demanding hydraulic and pneumatic installations. Its one-piece stainless steel structure provides a durable connection solution, capable of withstanding high mechanical and thermal stresses.

Summary#2

Made of AISI 316 stainless steel, this fluted bushing has superior resistance to corrosion, acids, and saline environments. This high-quality stainless steel grade allows safe use in a wide temperature range from -20°C to +220°C. Whether for chemical, food and beverage or marine applications, AISI 316 ensures transfer integrity and prevents contamination of the fluids conveyed.

Summary#3

This industrial fitting is calibrated for a nominal pressure of PN 20 bar, providing a large safety margin for discharge or suction circuits. The fluted part (hose holder) is designed to maximize the adhesion of the hose, thus guaranteeing perfect resistance under pressure. Its robustness makes it a reference choice for maintenance, construction and industrial processes where continuity of service is a top priority.

Summary#4

The connection is made via a tapered male thread (R) in accordance with ISO 7-1 (BSPT). This tapered thread profile ensures optimal sealing by metal-to-metal contact, often reinforced by the addition of a suitable sealant. This design allows for easy integration onto cylindrical (Rp) female ends, providing mounting versatility on a wide range of pre-existing industrial valves, pumps and manifolds.

Summary#5

Thanks to its versatility and regulatory compliance, this fluted bushing is used in various sectors such as petrochemicals, water treatment, agriculture and irrigation. Its maintenance is simplified by the inert nature of 316 stainless steel, limiting deposits and premature wear. For a secure installation, we recommend the use of appropriate hose clamps on the spline part to prevent slippage of the hose during pressure build-ups.
