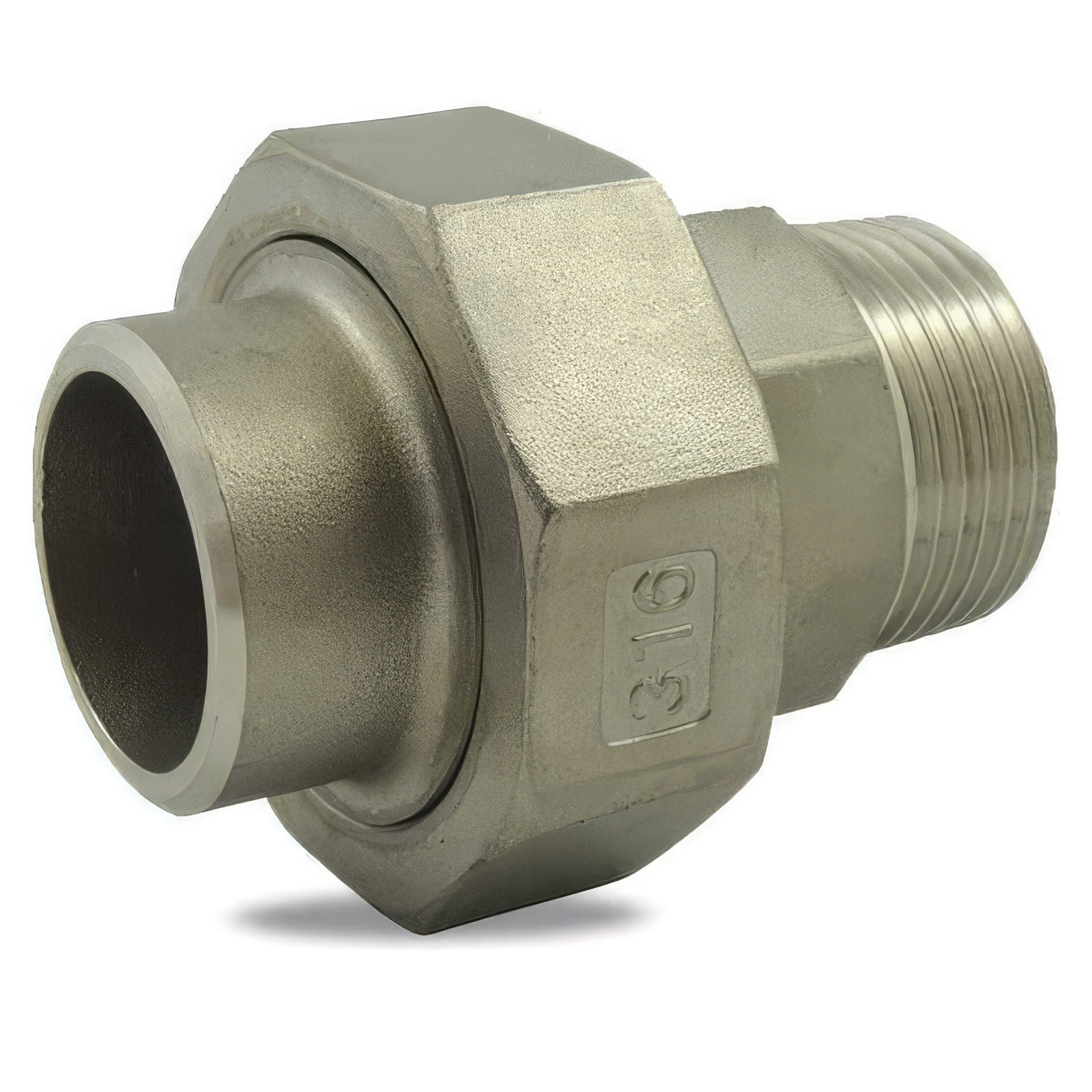

8841 - MALE/BW CONICAL BEARING UNION, TO BE WELDED

Name: Male fluted sleeve in stainless steel 316
Rating: 5 (1 reviews)

Manufactured according to ISO 4144.

Pressure: PN 20 bar
Temperatures: -20/+220°C
Material: AISI 316 stainless steel
Connections: Thread according to ISO 7-1 (BSPT). Conical male tip (R) and cylindrical female tip (Rp)

Mark Ezfitt

Reference 8841-38

Technical data sheet

Summary#1: Manufactured according to ISO 4144.
Summary#2: Pressure: PN 20 bar
Summary#3: Temperatures: -20/+220°C
Summary#4: Material: AISI 316 stainless steel
Summary#5: Connections: Thread according to ISO 7-1 (BSPT). Conical male tip (R) and cylindrical female tip (Rp)

Specific references

ean13: 3760269586277

Combinations	Diameter	Coast B	Reference	Stock	Price	Add to cart
Diameter : 1/2'' Coast B : 21.3mm Reference : 8841-12 Stock : 0	1/2''	21.3mm	8841-12	Delivery in 4-5 days	€10.79 TTC	€10.79 TTC
Diameter : 3/8'' Coast B : 17.2mm Reference : 8841-38 Stock : 0	3/8''	17.2mm	8841-38	Delivery in 4-5 days	€10.13 TTC	€10.13 TTC
Diameter : 3/4'' Coast B : 26.9mm Reference : 8841-34 Stock : 0	3/4''	26.9mm	8841-34	Delivery in 4-5 days	€17.56 TTC	€17.56 TTC
Diameter : 1'' Coast B : 33.7mm Reference : 8841-1 Stock : 0	1''	33.7mm	8841-1	Delivery in 4-5 days	€22.66 TTC	€22.66 TTC
Diameter : 1''1/4 Coast B : 42.4mm Reference : 8841-114 Stock : 0	1''1/4	42.4mm	8841-114	Delivery in 4-5 days	€33.44 TTC	€33.44 TTC
Diameter : 1''1/2 Coast B : 48.3mm Reference : 8841-112 Stock : 0	1''1/2	48.3mm	8841-112	Delivery in 4-5 days	€39.72 TTC	€39.72 TTC
Diameter : 2'' Coast B : 60.3mm Reference : 8841-2 Stock : 0	2''	60.3mm	8841-2	Delivery in 4-5 days	€67.86 TTC	€67.86 TTC
