Technical sheet

Summary #1

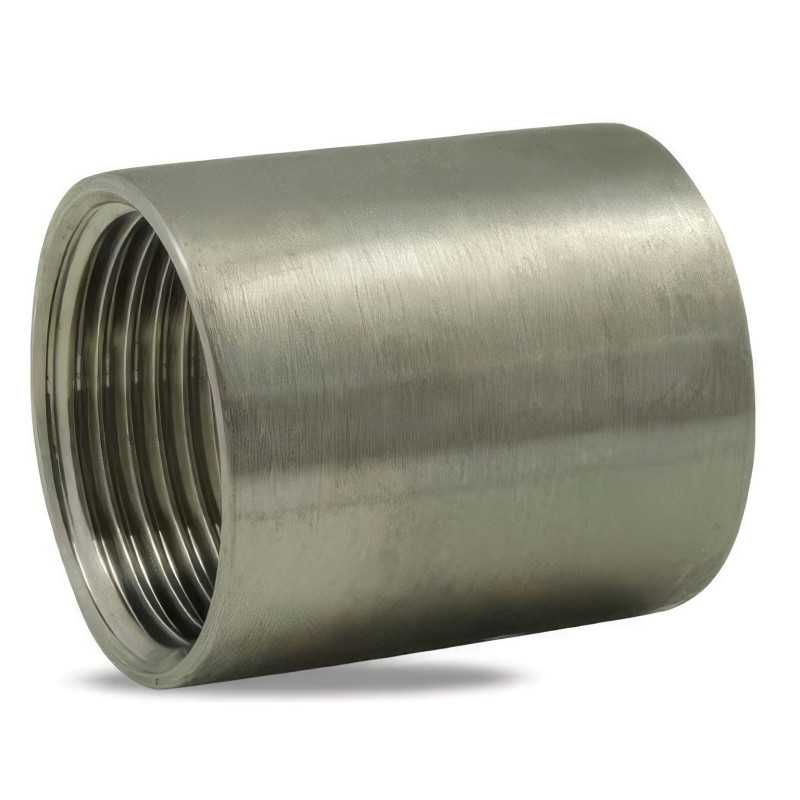

The machined female/female sleeve is an essential component of industrial piping, designed to connect two male threaded elements of the same diameter on a linear axis. Manufactured according to ISO 4144, this fitting guarantees perfect interchangeability and rigorous compliance with international safety standards. Its machined design ensures precise geometry and robustness suitable for permanent installations requiring unfailing reliability.

Summary#2

This sleeve is made entirely of AISI 316 stainless steel, a high-end stainless steel grade known for its exceptional resistance to corrosion, even in the presence of aggressive chemical agents or saline environments. Thanks to its intrinsic properties, it can withstand a very wide temperature range from -20°C to +220°C. This robustness makes it a preferred choice for the petrochemical, pharmaceutical and food and beverage sectors, where the inertia of the material is crucial for product purity.

Summary#3

Calibrated for a nominal pressure of PN 20 bar, this fitting offers optimum safety for discharge circuits and pressure transfer networks. Its machined structure makes it possible to maintain a constant and resistant wall thickness, capable of withstanding the severe mechanical stresses encountered in shipbuilding or steel mills. By choosing this component, you ensure the longevity of your installations and minimize the risk of structural failure in the long term.

Summary#4

The connection of this sleeve follows the ISO 7-1 standard (BSPT), with a cylindrical female thread (Rp) designed to receive a tapered male end (R). This specificity allows a hermetic connection by direct contact of the threads, ensuring a seal by metal-to-metal contact. This thread standard makes it much easier to install valves, pressure gauges or measuring accessories on your industrial piping.

Summary#5

The machined sleeve is the ideal solution for assembling rigid piping lines requiring high chemical resistance. Its neat finish allows a fluid flow of liquids and gases, limiting internal turbulence and network clogging. Whether for industrial maintenance, water treatment or chemical processes, this AISI 316 stainless steel fitting adapts to the most demanding configurations with constant reliability.

Specific references

EAN13

3760269585843
