Technical sheet

Summary #1

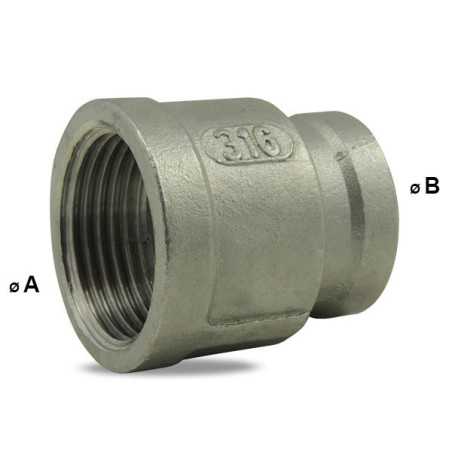

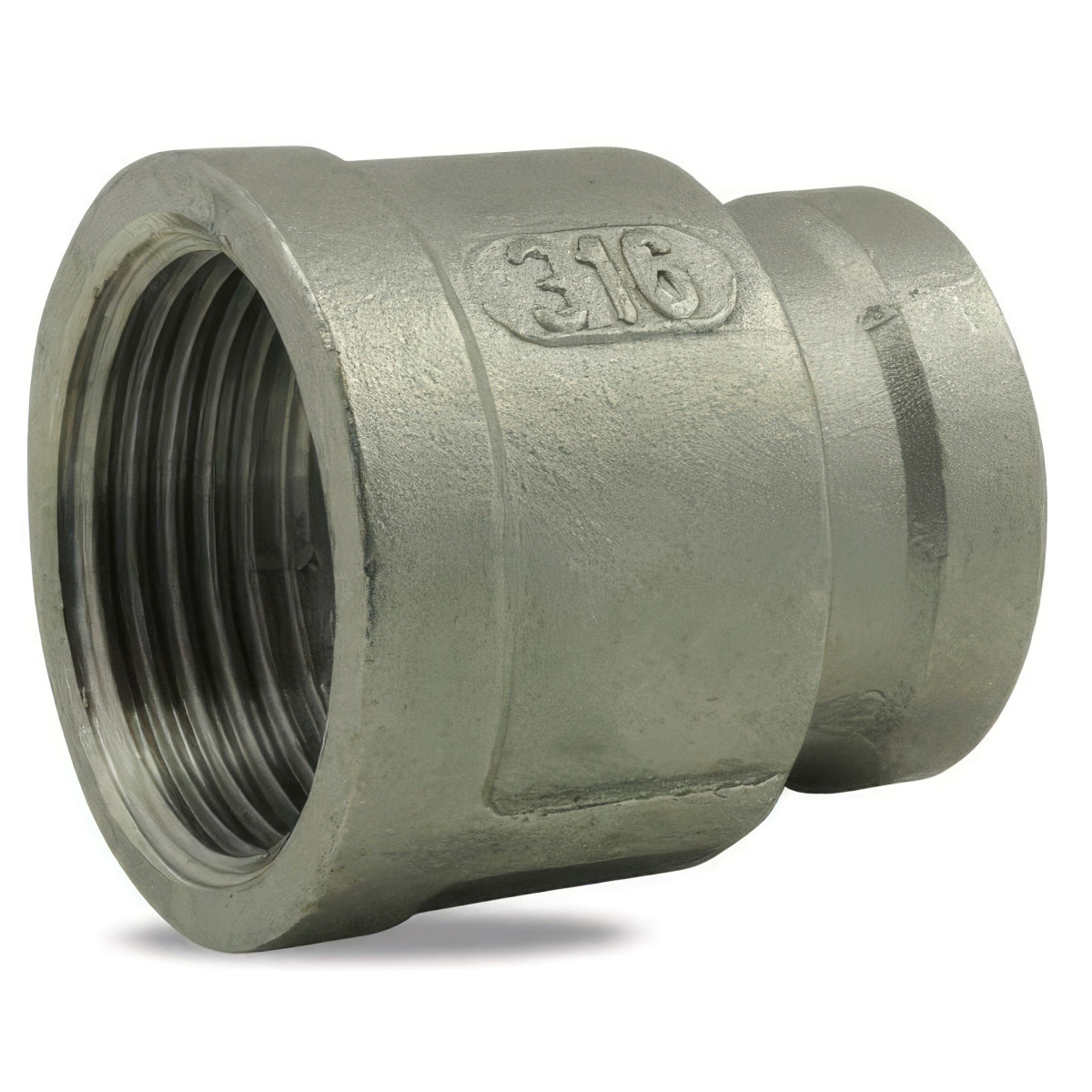

The female/female reduced sleeve is a high-precision industrial connection component, designed to allow the connection between two tubes or fittings of different diameters within the same network. Manufactured according to the rigorous requirements of ISO 4144, this sleeve guarantees perfect interchangeability and exemplary reliability for professional hydraulic installations. Its internal threaded structure allows for a clean and secure transition, while maintaining optimal compactness in complex pipe assemblies.

Summary#2

Machined entirely from AISI 316 stainless steel, this reduced sleeve offers exceptional durability in the face of the most corrosive environments, such as acidic or saline environments. This high-quality stainless steel grade allows the fitting to operate with complete safety in a wide temperature range from -20°C to +220°C. This makes it ideal for demanding industries such as pharmaceuticals, petrochemicals and food and beverage, where the chemical inertness of the material prevents fluid contamination.

Summary#3

Calibrated for a nominal pressure of PN 20 bar, this reduction fitting ensures maximum operational safety for discharge or fluid transfer circuits. Its mechanical robustness allows it to withstand the intensive service stresses encountered in shipbuilding, steel mills or plant maintenance. This ability to withstand high pressures without deformation ensures the long-term tightness of your industrial piping installations.

Summary#4

This sleeve features internal threads that comply with ISO 7-1 (BSPT), specifically with cylindrical (Rp) female ends. This international standard allows a hermetic connection with tapered (R) male ends, ensuring a seal by direct contact between the threads. The use of this type of thread facilitates the integration of the reduced sleeve on a wide range of equipment such as valves, pumps and manifolds, while ensuring fast and reliable installation.

Summary#5

Connections: Thread according to ISO 7-1 (BSPT). Conical male tip (R) and cylindrical female tip (Rp)

Specific references

EAN13

3660360802910
