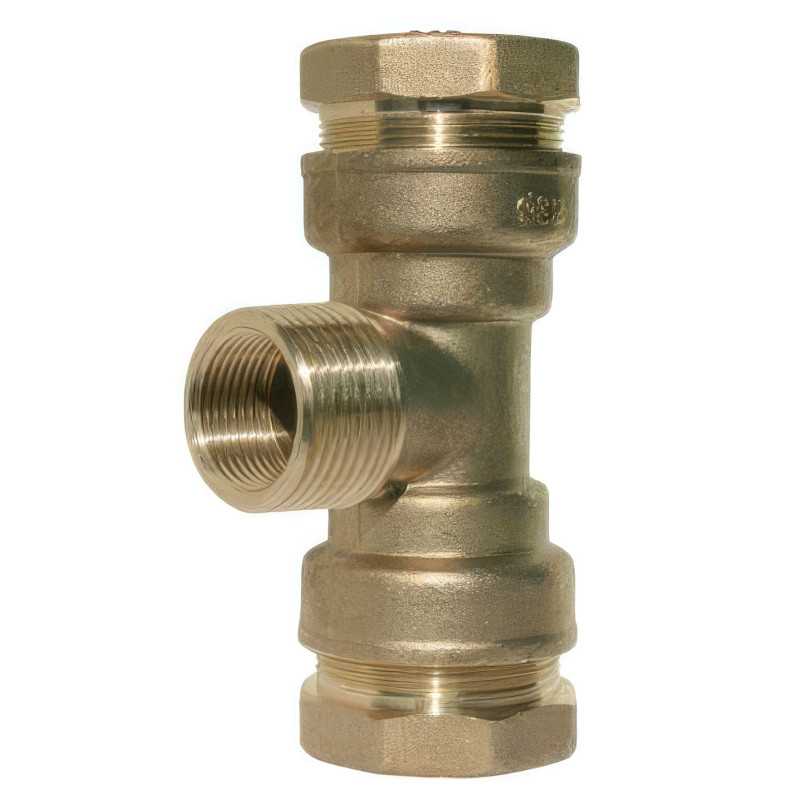

Compression PE Brass T-Fitting | PN16 Mixed Center Output

The 7000 Series T-fitting with center male thread and reduced inner female thread is a centerpiece of brass industrial plumbing. This combination fitting allows a flow to be diverted from polyethylene (HDPE) tubing while providing a versatile center outlet. Its unique design combines a male outer thread with a smaller diameter female inner thread, allowing for a multitude of tapping configurations on the same point. Certified to withstand a nominal pressure of 16 bar (PN16), it is the ideal ally for complex water supply and irrigation networks.

Triple functionality for maximum adaptability

This T-fitting is distinguished by its innovative "2-in-1" center outlet. The male thread allows large diameter accessories (valves, manifolds) to be screwed in directly, while the reduced inner female thread allows the insertion of smaller caliber precision instruments, such as pressure gauges or control probes. This technical ingenuity avoids the use of multiple reducers and additional sleeves, thus ensuring a more compact, cleaner assembly and significantly reducing the risk of leaks on the junction points.

Ruggedness of 7000 Series Brass for Harsh Environments

Made of high-quality solid brass, this fitting is designed to withstand the harshest mechanical stresses, whether in overhead or underground installation. Its metal structure gives it total insensitivity to UV rays and excellent resistance to thermal variations and ground movements. Where plastic fittings could become ovalized under the stress of a heavy accessory, the 7000 Series Brass Tee maintains a perfect geometry, ensuring the durability of your hydraulic infrastructure.

Mechanical compression system and absolute tightness

The PE pipes are connected via an extremely reliable external compression clamping system. The internal cramping ring ensures a firm grip on the polyethylene tube, preventing any tearing even in the event of water hammer. The sealing is completed by a precision O-ring that adapts to the surface imperfections of the tube. It is a seamless solution that allows for fast, safe and sustainable implementation for all your drinking water distribution or professional irrigation circuits.

Technical characteristics

Installation tips for mixed connection

When mounting PE pipes, make sure to make a clean cut and insert the pipe to the stop of the fitting body before locking the nut. For the center outlet, if you are using the male thread, apply PTFE tape to the outer thread. If you are using the reduced female thread, make sure that the inserted male accessory has a flat gasket or suitable thread. This versatile connection makes it possible to anticipate future network expansions without having to modify the main structure.
