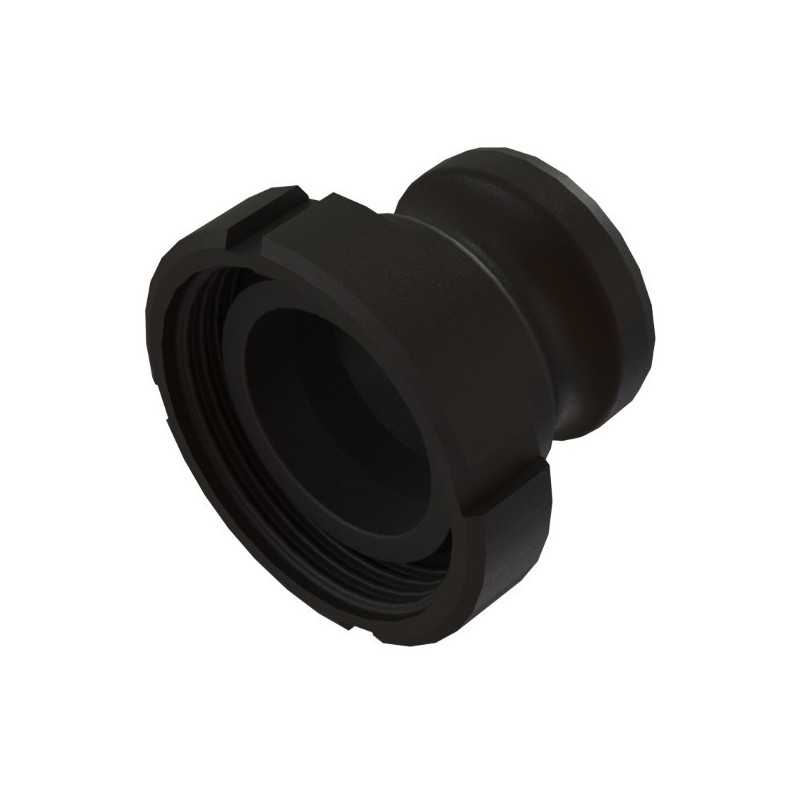

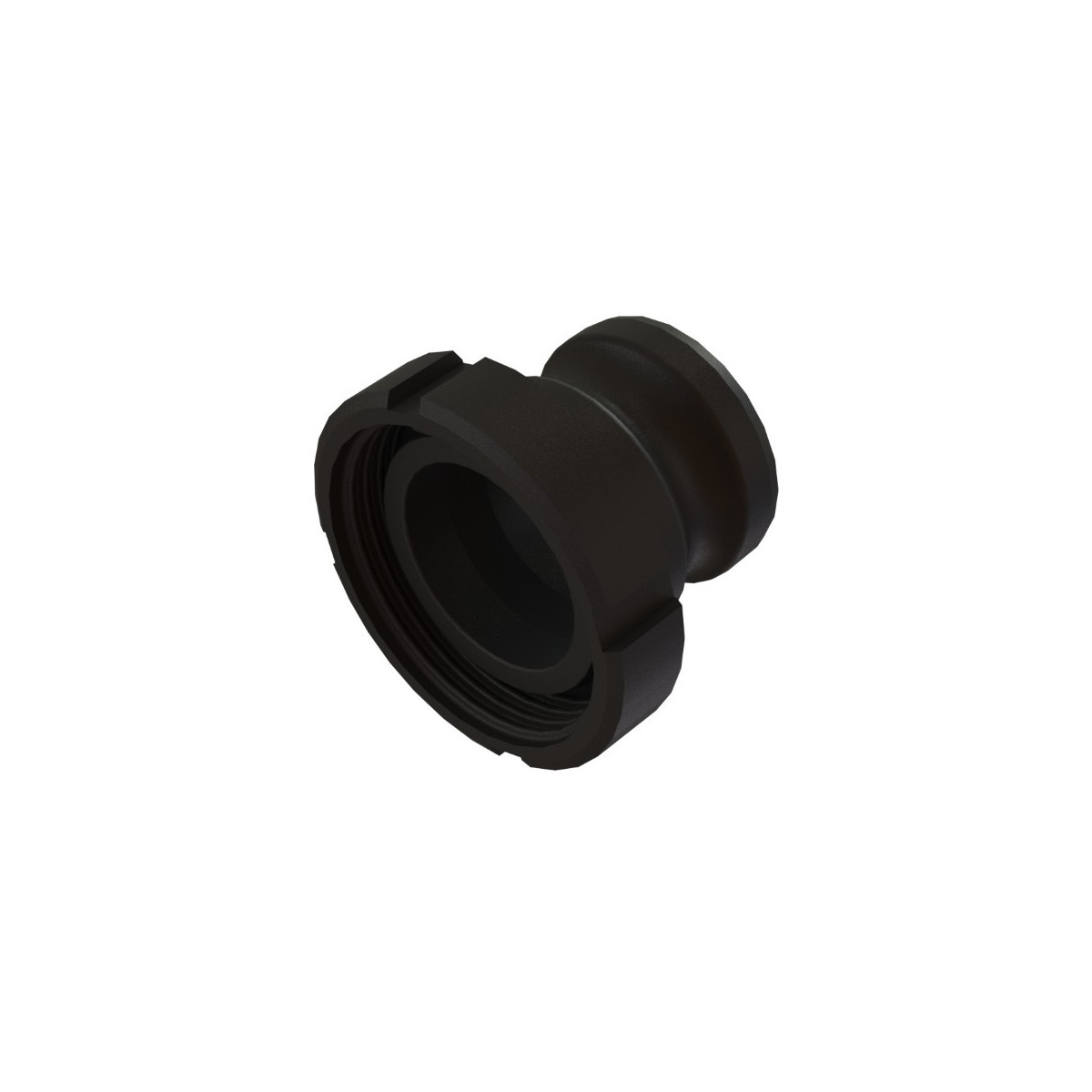

Female RD78 Fitting - Male Camlock 2 Inches

Female RD78 Fitting - Male Camlock 2 Inches CPP (Reference: 101053) represents the reference technical solution for efficiently connecting RD78 DIN50 coupling systems to 2-inch Camlock fittings. This glass fiber-reinforced polypropylene adapter fitting combines robustness and machining precision to meet the requirements of industrial and agricultural professionals.

Applications and sectors of use

This adapter fitting finds its place in many industrial configurations where compatibility between connection standards is essential. Washing stations, food-grade liquid transfer installations, non-aggressive chemical product circuits and professional irrigation systems constitute its preferred areas of application.

Food industry professionals use it to connect their IBC tanks fitted with DIN50 valves to standard industrial Camlock hoses. Agricultural operators adopt it for their irrigation and liquid fertilizer transfer systems, while technical services integrate it into their cleaning and maintenance installations.

Its male/female design allows direct adaptation without intermediate parts, simplifying installation and reducing the risk of leaks. This versatility makes it a strategic component for any installation requiring a reliable interconnection between two coupling standards.

Technical design and materials

Glass fiber-reinforced polypropylene forms the core of this fitting, offering superior mechanical resistance compared to standard polypropylene. This composition ensures excellent resistance to tightening stress, thermal variations and repeated connection/disconnection operations.

The female RD78 inlet strictly complies with the DIN50 standard, guaranteeing perfect threading onto IBC tank valves and other standardized equipment. The precise threading and rigorous dimensions ensure optimal sealing without over-tightening.

The 2-inch male Camlock outlet adopts the dimensions and tolerances of professional quick-release fittings. Its precisely machined cams and lugs allow firm coupling with all female Camlock fittings on the market, whether in aluminum, stainless steel or brass.

The S92x4 compatibility mentioned in the technical specifications confirms the universality of this fitting with European connection standards, further expanding its field of application.

Installation and operating procedures

Installing this adapter fitting requires following a few fundamental steps to guarantee performance and longevity. Start by checking the cleanliness of the RD78 threads on your DIN50 valve, removing any residue or deposit that could compromise the seal.

Threading is performed manually at first, following the appropriate direction of rotation until the sealing surfaces make contact. Moderate tightening with a flat wrench completes the operation, without ever forcing excessively at the risk of damaging the polypropylene thread.

For the Camlock-side connection, insert the corresponding female fitting by correctly aligning the cams, then lock by turning the locking levers. Verify that the connection is fully engaged before pressurizing the circuit.

Maintenance is limited to regular cleaning of contact surfaces and visual inspection of threads. Glass fiber-reinforced polypropylene requires no special treatment and naturally resists most common chemical agents.

Synergies and optimization tips

This adapter fitting integrates perfectly into a comprehensive coupling system including other CPP range components and complementary manufacturers. Pair it with aluminum or stainless steel female Camlock fittings from our catalog to create complete and consistent connections.

For permanent installations, consider adding a safety collar or retaining chain on the Camlock side, preventing accidental loss during maintenance operations. This precaution is particularly useful in industrial environments with rotating shift teams.

Experienced professionals recommend maintaining a safety stock of these adapter fittings, their critical role in the coupling chain justifying this forethought. A failing fitting can shut down an entire installation.

In winter, frost protection of water circuits is essential in affected regions. Although polypropylene withstands expansion stresses better than metallic materials, preventive draining is still recommended to preserve the integrity of the entire circuit.

Also consider replacement seals for your female Camlock fittings: preventive maintenance of these wear components guarantees the longevity of your connections and avoids costly emergency shutdowns.

Technical specifications
