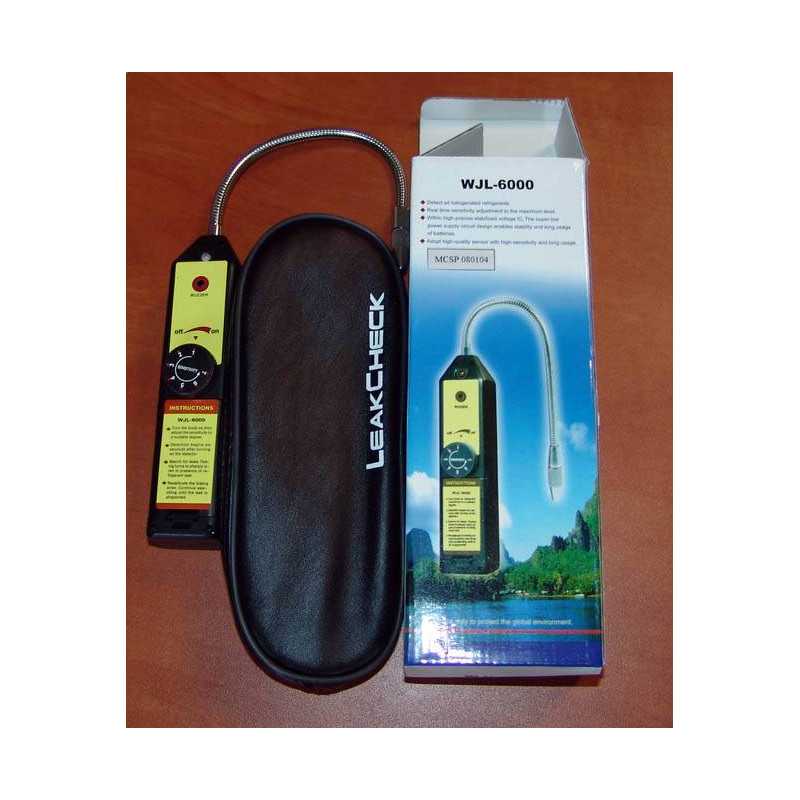

WJL6000 Leak Detector

WJL6000 Leak Detector (Reference: 080104) is a professional measuring instrument designed to accurately locate halogenated refrigerant gas leaks in air conditioning and commercial refrigeration systems. This high-end diagnostic equipment combines exceptional sensitivity, robustness and ease of use to meet the requirements of refrigeration technicians and thermal maintenance professionals.

Professional applications and use cases

The WJL6000 detector is primarily intended for refrigeration technicians, air conditioning installers, and industrial maintenance teams. It excels in detecting leaks on refrigeration circuits of residential and commercial air conditioners, cold rooms, refrigerated display cases, and commercial refrigeration systems. Its sensitivity of 6 grams per year makes it an indispensable tool for regulatory control of installations, particularly within the framework of leak detection obligations imposed by F-Gas regulations. Preventive maintenance interventions, fault diagnostics, and post-installation leak tests constitute its preferred application areas.

Technical specifications and performance

The WJL6000 design incorporates a 20-centimeter flexible probe that allows access to difficult areas of refrigeration installations, particularly behind outdoor units and in confined spaces. The compact housing with dimensions of 22.9 x 6.5 x 6.5 cm ensures ergonomic handling during extended interventions. The operating temperature range from 0°C to 52°C ensures reliable use in all seasons, from air-conditioned technical rooms to outdoor installations subject to thermal variations. The 6-second warm-up time and instantaneous response time optimize intervention productivity by avoiding waiting times. The automatic reset function in 2 to 10 seconds allows continuous use without interrupting the diagnostic process.

Usage and detection protocol

Using the WJL6000 detector follows a methodical detection protocol. After power-on and 6-second warm-up time, the device is ready for detection. It is advisable to systematically sweep suspicious areas: fittings, valves, heat exchangers, and welding points of refrigeration circuits. The probe should be moved slowly, about 2-3 cm from surfaces to be checked, following the refrigeration lines. In case of detection, the audible and visual alarm triggers instantly, allowing precise location of the leak point. Maintenance is limited to protecting the probe from impacts and monitoring battery life. Storage in a protective case extends the instrument''s lifespan.

Expert advice and technical synergies

To optimize the WJL6000 detector''s efficiency, professionals recommend combining its use with tracer products to visually confirm detected leaks. Association with digital pressure gauges allows correlating pressure loss with precise leak location. In ventilated environments, it is advisable to temporarily stop ventilation to improve detection accuracy. Regular calibration verification ensures measurement reliability, particularly to comply with regulatory leak thresholds. Experienced technicians recommend cross-sweeping suspicious areas to eliminate false detections related to air currents. Combined use with thermal diagnostic tools enhances the overall diagnostic efficiency of refrigeration installations.
