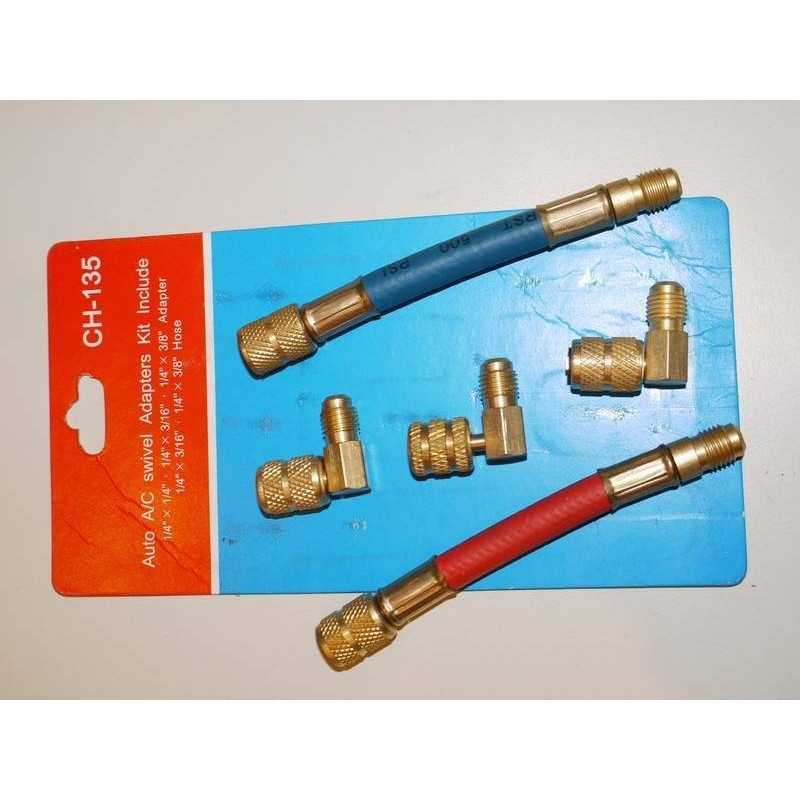

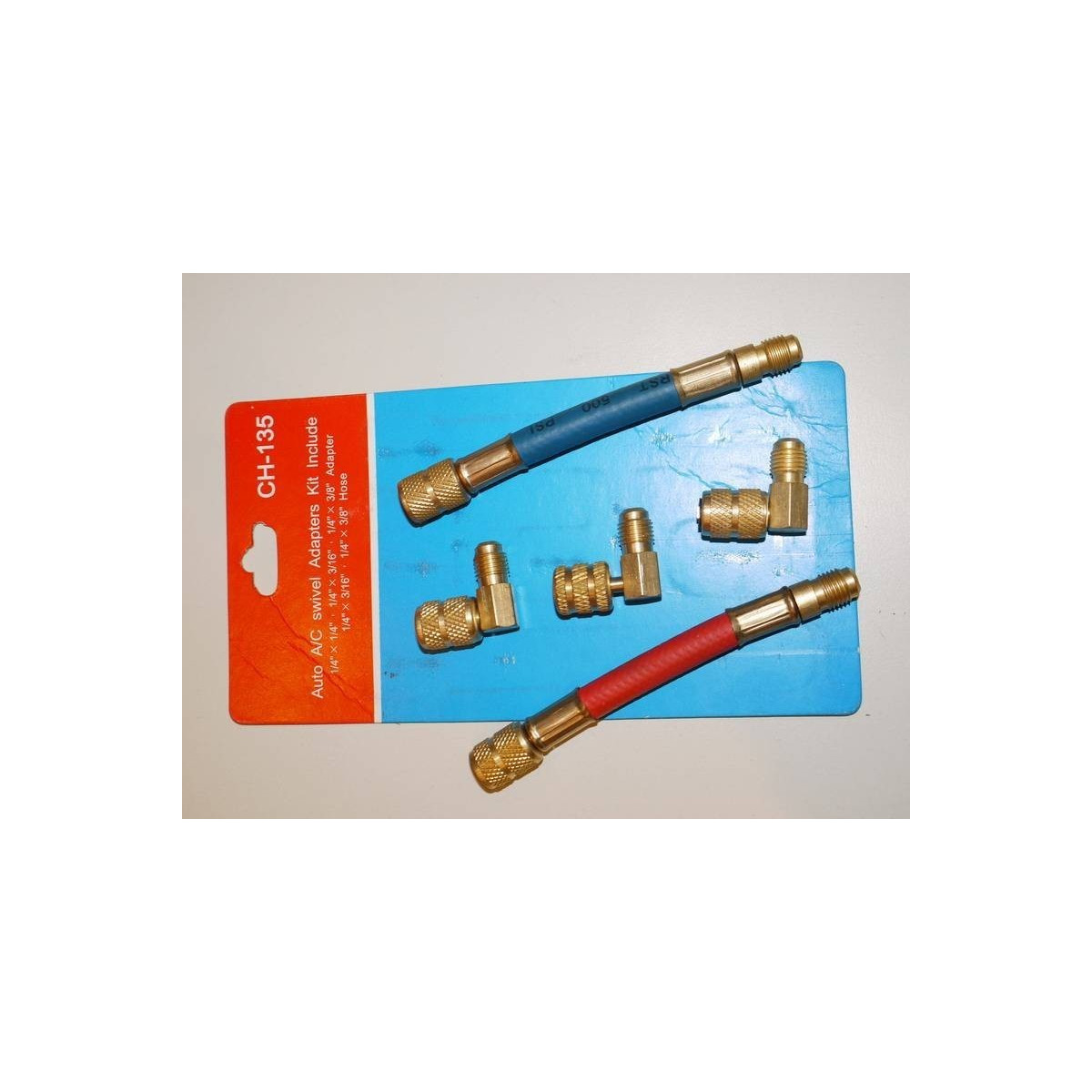

AUTOMOTIVE ADAPTER KIT - FC-01A

Automotive Adapter Kit FC-01A (Reference: 080701) - Multitanks offers you this professional adapter kit specially designed for automotive air conditioning system interventions. This complete technical solution meets the requirements of automotive professionals and mechanical enthusiasts.

Specific applications and use cases

This FC-01A automotive adapter kit is primarily intended for garage owners, professional mechanics and automotive air conditioning technicians. It proves useful during maintenance, recharge and diagnostic operations on vehicle air conditioning circuits. Equipped individuals can also use it for maintaining their personal or collector vehicles.

The red and blue hoses allow clear differentiation between high and low pressure circuits, thus reducing the risk of errors during interventions. This color coding respects international automotive industry standards and greatly facilitates both preventive and corrective maintenance operations.

Technical specifications and compatibility

The kit integrates high-performance hoses with specific connections to UNF (Unified National Fine) standards. The red hose features a 7/16UNF-20UNF to 3/8-24UNF connection, while the blue hose offers a 7/16UNF-20UNF to 5/16-24UNF connection. These dimensions correspond to the most widespread standards in contemporary automotive industry.

The 3 elbow fittings at 90° with 1/4 diameter offer optimal installation flexibility in restricted engine compartment spaces. The included adapters cover the main configurations: 7/16UNF-20UNF to 7/16UNF-20UNF, 7/16UNF-20UNF to 3/8-24UNF and 7/16UNF-20UNF to 5/16-24UNF. This diversity ensures extensive compatibility with the majority of European and American market vehicles.

Installation and practical use

Installing this kit requires compliance with standard safety procedures in automotive air conditioning. Before any intervention, the circuit should be depressurized and appropriate personal protective equipment must be worn. Fittings must be tightened to the recommended torque to prevent leaks while preserving seal integrity.

The red/blue color coding facilitates circuit identification: red for high pressure (compressor discharge) and blue for low pressure (compressor suction). This universal convention considerably reduces the risk of connection errors, particularly critical during refrigerant recharge operations.

After use, it is recommended to clean the fittings with a suitable solvent and protect them with caps to prevent contamination by moisture and impurities. Storage in a dedicated case or pouch significantly extends component lifespan.

Expert advice and usage optimization

To maximize this kit's efficiency, we recommend pairing it with a digital pressure gauge allowing precise control of service pressures. This synergy enables finer diagnosis of malfunctions and optimizes intervention quality. Using an electronic leak detector ideally complements the equipment for leak-tightness checks.

A frequent error consists of over-tightening fittings, causing O-ring damage. Torque specifications from automotive manufacturers must be strictly respected. Similarly, using incompatible refrigerants can deteriorate hose and fitting materials.

For multi-brand professionals, this kit constitutes a solid base that can be completed with specific adapters according to vehicles treated. UNF fitting versatility ensures optimal coverage of the contemporary automotive fleet, thus reducing downtime due to tool unavailability.

Technical characteristics
