AUTOMOTIVE ADAPTER KIT - FC-01B

Automotive Adapter Kit FC-01B (Reference: 080702) represents the complete professional solution for all automotive air conditioning technicians. This specialized kit brings together in a coherent assembly all the necessary elements to perform maintenance, diagnostic and repair operations on modern vehicle air conditioning circuits. Equipped with high-quality components, it meets the requirements of automotive professionals who seek reliability, precision and versatility in their daily interventions.

Applications and fields of use

This kit finds its utility in numerous professional situations. Automotive garages use it daily for draining, recharging and diagnostic operations of air conditioning systems. Technical inspection centers use it to check circuit tightness and measure operating pressures. Car dealerships appreciate its versatility that allows intervention on different brands and vehicle models.

Refrigeration technicians specialized in automotive find an indispensable tool for their on-site interventions. The kit also proves valuable for fleet maintenance services that must manage the maintenance of numerous commercial or transport vehicles. Its design allows quick adaptation of connections according to each vehicle''s specifications, whether passenger cars, light commercial vehicles or heavy trucks.

Technical composition and specifications

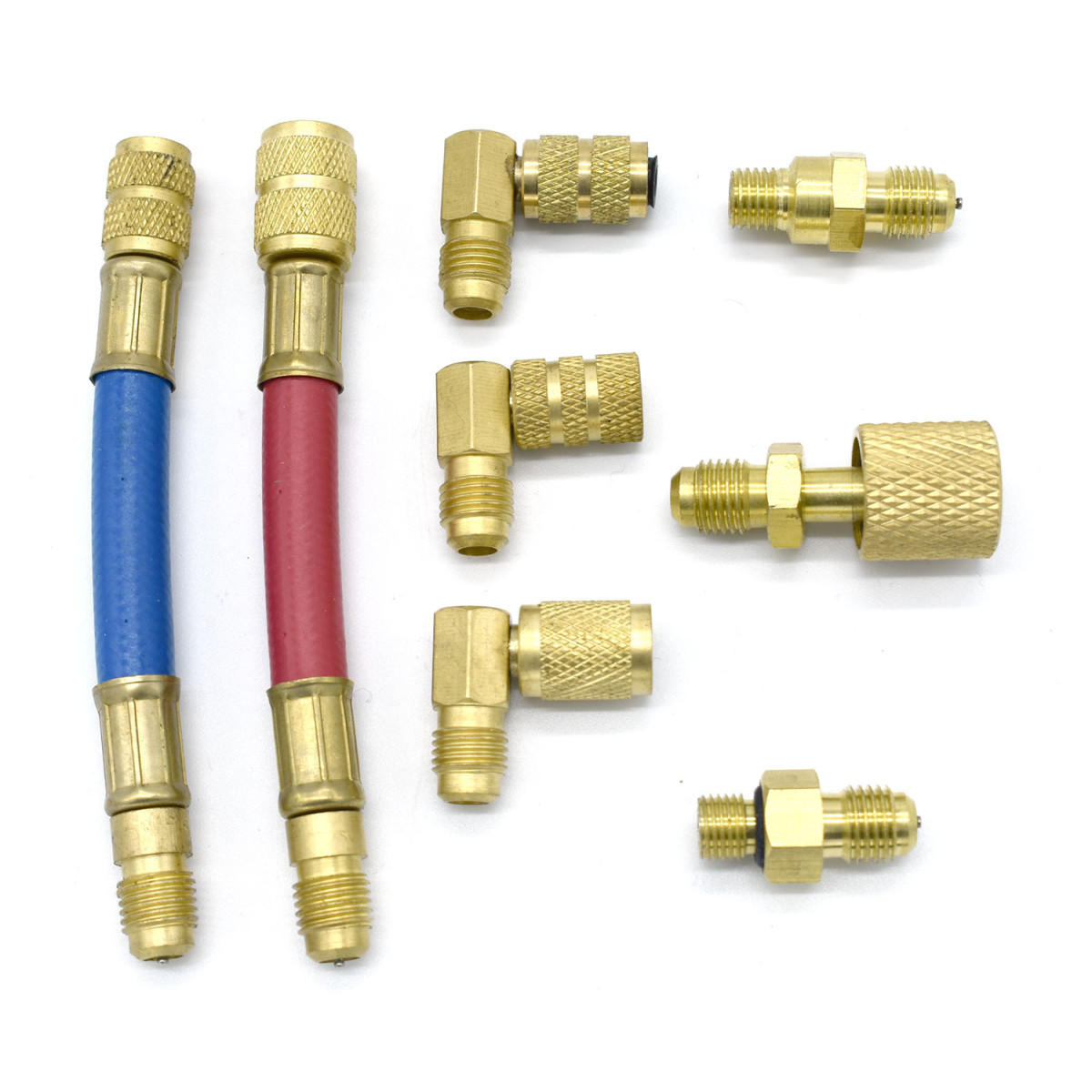

The kit consists of high-pressure hoses color-coded: the red hose for the high-pressure circuit with 7/16UNF-20UNF to 3/8-24UNF connection, and the blue hose for the low-pressure circuit with 7/16UNF-20UNF to 5/16-24UNF connection. This chromatic differentiation avoids any connection error and respects international automotive industry standards.

The three 90° elbow fittings offer maximum installation flexibility in confined engine compartment spaces. Their precise threads - 7/16UNF-20UNF to 7/16UNF-20UNF, 7/16UNF-20UNF to 3/8-24UNF, and 7/16UNF-20UNF to 5/16-24UNF - guarantee compatibility with most existing systems. The three specialized connectors with dimensions 1/2x16UNF to 7/16-20UNF, 3/8-20UNF to 7/16-20UNF, and M9x1 to 7/16-20UNF, allow adaptation to different types of valves and components.

Installation and operating procedures

Before any use, it is imperative to check the condition of seals and absence of contamination on threads. Assembly is always performed with engine stopped and air conditioning system stopped for at least 15 minutes. Connections must be tightened according to torque specifications specified by the vehicle manufacturer, generally between 8 and 12 Nm to avoid thread damage.

Prior identification of high and low pressure ports on the vehicle is essential. The high-pressure port, larger, receives the red hose, while the low-pressure port, smaller, accommodates the blue hose. This configuration prevents reversals that could damage diagnostic or recharging equipment. After each use, meticulous cleaning of components with appropriate solvent and storage in a dry environment considerably extend their service life.

Expert advice and performance optimization

To maximize this kit''s efficiency, we recommend completing the equipment with a dual-dial pressure gauge and a refrigerant recovery station. This synergy allows complete diagnostics and professional interventions compliant with environmental regulations. Adding an electronic leak detector ideally complements this assembly to precisely locate tightness defects.

A professional tip consists of marking frequently used fittings with different colored nail polish according to vehicle type, thus facilitating rapid identification during repeated interventions. Absolutely avoid using damaged fittings or those showing corrosion traces, as they would compromise system tightness. During summer periods, quarterly verification of hose condition is recommended, as high temperatures accelerate material aging.
